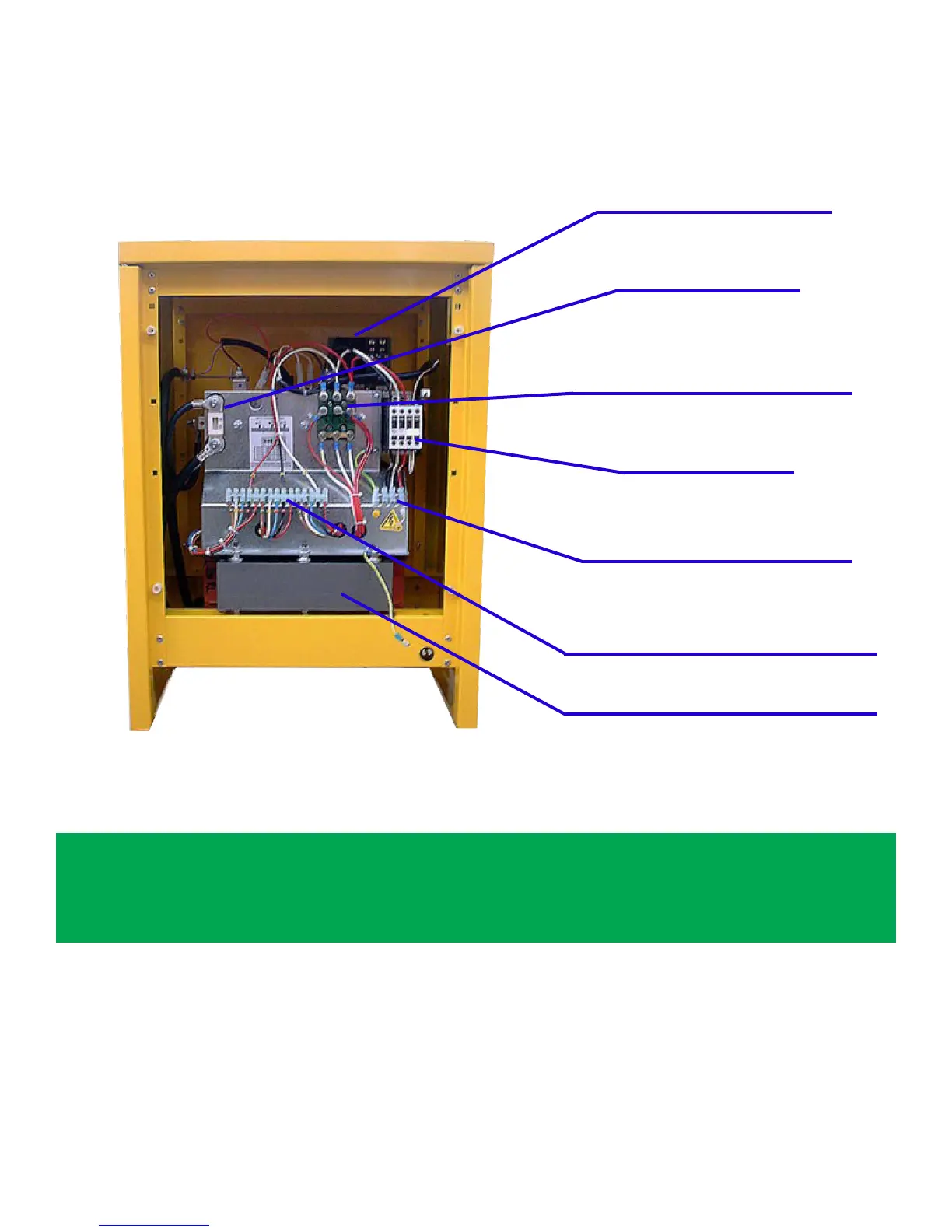

INTERNAL VIEW OF THE CHARGER – CABINET A
NOTE
The BOARD FOR INPUT VOLTAGE SELECTION is present only in chargers with
3x 208 / 240 / 480 Vac input, and is not NOT present in chargers with 3x600 Vac input.
The PLUGS FOR INPUT VOLTAGE ADJUSTMENT are present in all the chargers.
7
CONTROL BOARD
BOARD FOR INPUT
VOLTAGE SELECTION
TERMINAL BLOCKS
FOR AC INPUT CORD
PLUGS FOR INPUT
VOLTAGE ADJUSTMENT
OUTPUT FUSE
POWER TRANSFORMER
CONTACTOR
