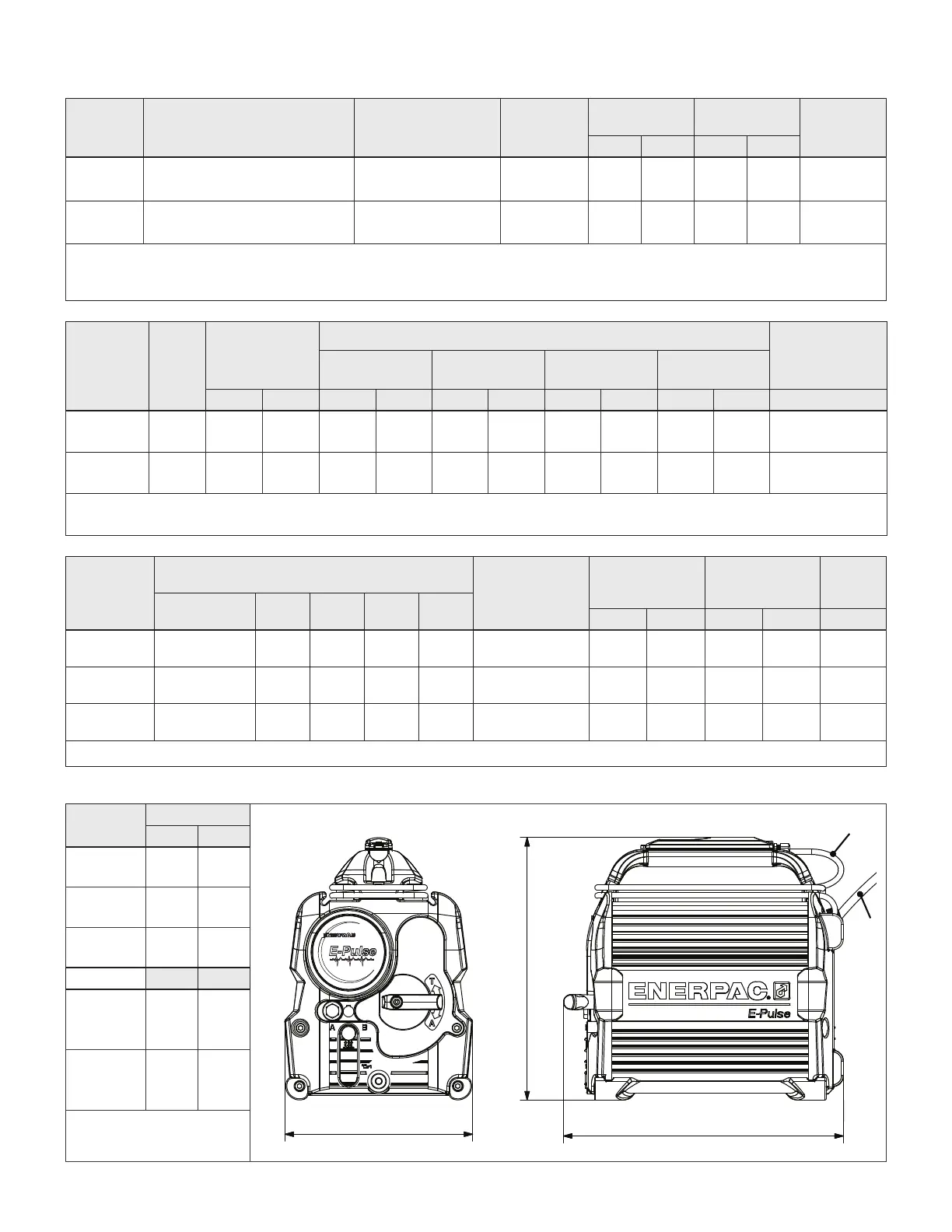

2.0 PRODUCT DATA
2.1 Specifications
Pump
Model
Number
Control Valve
Description
For Use With:
Hydraulic
Connections
Weight
*
Usable Oil
Capacity**
Oil Type
lb kg gal. l
EP3204J_
3-way, 2-position
(Advance / Release)
Single-acting hydraulic
cylinders or tools
3/8" NPTF 39.4 17.9
0.8 3.0
Enerpac HF
EP3404J_
4-way, 3-position, Tandem Center
(Advance / Neutral / Retract)
Double-acting hydraulic
cylinders or tools
3/8" NPTF 40.0 18.1 0.8 3.0 Enerpac HF
* Approximate weight of pump including oil.
** Approximate usable oil capacity of pump hydraulic reservoir (excludes pump element).
Pump total oil capacity (including reservoir and pump element housing) is approximately 1.14 gallons [4.33 liters].
Pump
Model
Number
Pump
Type
Maximum
Hydraulic
Working
Pressure *
Flow Rate at Maximum Speed
Motor Speed
Range **
At 14.5 psi
[1 bar]
At 2538 psi
[175 bar]
At 5075 psi
[350 bar]
At 10,000 psi
[700 bar]
psi bar in³/min l/min in³/min l/min in³/min l/min in³/min l/min RPM
EP3204J_ 2 Stage 10,000 700 220 3.61 130 2.13 58 0.95 32 0.52 600-2400
EP3404J_ 2 Stage 10,000 700 220 3.61 130 2.13 58 0.95 32 0.52 600-2400
* Maximum pressure setting of pump is limited to approximately 10,300 -10,800 psi [710-745 bar].
** Refer to Section 6.4 for additional information.
Pump Model
Number
Ending In:
Input Power Specifications
Plug Type
Motor Output
Rating
Operating Temp
Range *
Sound
Level
Lwa **
Nominal
Voltage Range
Phase Hz
Max.
Amps
Max.
kW hp kW ˚ F ˚ C dB
B 100-120 VAC 1 50-60 12.0 1.12 NEMA 5-15
0.85 0.63
-22 to
+122
-30 to
+50
70-85
I 200-250 VAC 1 50-60 7.0 1.28 NEMA 6-15
0.85 0.63
-22 to
+122
-30 to
+50
70-85
E 200-250 VAC 1 50-60 7.0 1.28 Schuko CEE 7/7
0.85 0.63
-22 to
+122
-30 to
+50
70-85
* At 85% relative humidity. ** Sound level will vary depending on pump speed and load.
2.2 External Dimensions
Item
Dimension
A
C
B
D
E
inch mm
A 10.2 259
B 14.2 361
C 14.0 356
ft m
D
(pendant
cable)
10 3.0
E
(power
cord)
2.0 0.6
Note: Dimensions shown are
applicable to all pump models
included in this document.
