8
3.0 MAJOR FEATURES AND COMPONENTS
20 21
3
Key:
1. Pendant and Cable
2. Carrying Handle and
Pendant Cable Storage
3. Directional Control Valve
3-Way, 2-Position
4. Directional Control Valve,
4-Way, 3-Position
5. Hyd. Reservoir Air Breather
and Filter
6. Hyd. Reservoir Oil Drain/Fill Plug
7. Oil Level indicator
8. Front Cover/Panel
9. Accessory Channel
10. Cooling Fins
11. Cooling Vent (4 places)
12. Speed Control
13. Power Cord
14. Data Plate
15. Support Feet (rear)
16. Support Feet (bottom)
17. Rear Cover/Panel
18. Cord Retaining Pocket (4 places)
19. Pendant Storage Pocket
and Fault Code Decal
20. Hyd. Hose Port A
21. User-Adjustable Relief Valve
(under cover)
22. Hyd. Hose Port B

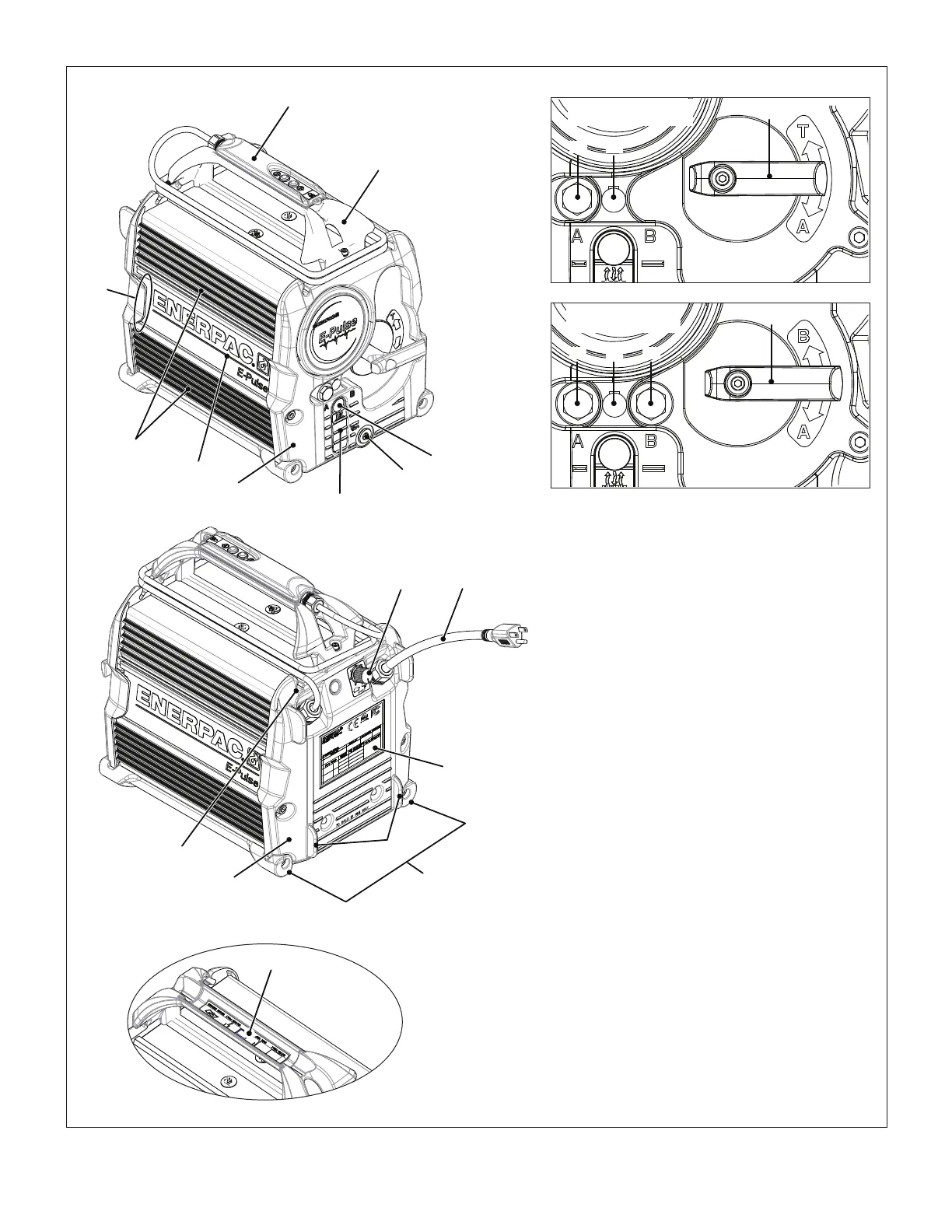

Figure 2, Major Features and Components, E-Series Electric Manual Valve Pumps
20 21 22
4
12 13
14
16
15
7
6
5
2
10
8
17
11
9
18
EP3204J Models
EP3404J Models
