5. Motor Installation

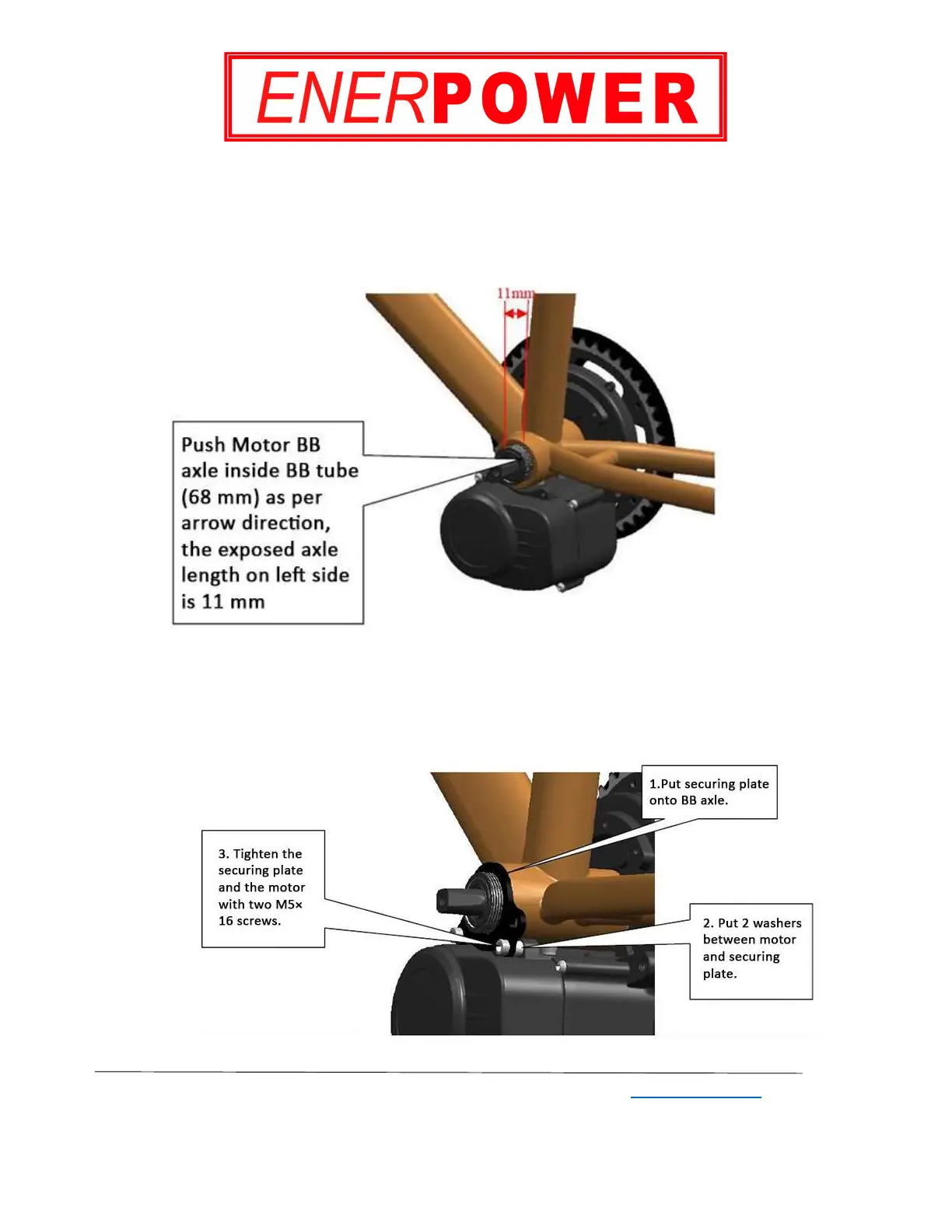

Step 1: Placing the motor
The bushing of the motor is pushed into the bicycle five-way pipe in the direction of the arrow, and
the length of the five-way pipe of 68mm, the exposed length of the middle bushing is 11mm, as
shown in image 1.
Image 1
Step 2: Installing the securing plate
1. Place the securing plate on the middle shaft five-way.
2. Place two aluminum washers between the securing plate and the center motor.
3. Tighten the securing plate and the motor with two M5×16 screws.
Image 2
