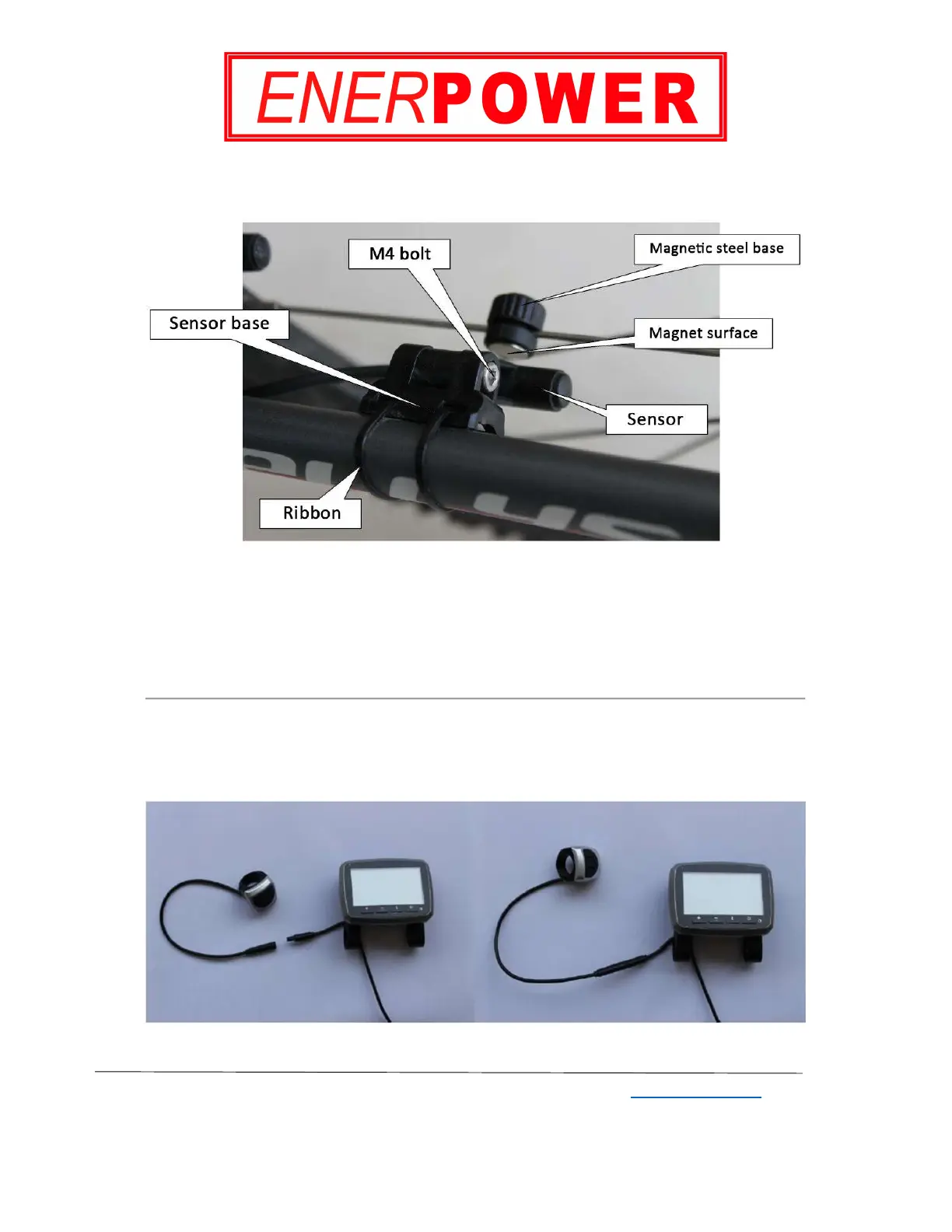

7. Detective Sensor Installation
1. Install the detective sensor onto the bike rear fork with two ribbons as shown below.
Image 9
2. Install the magnet steal onto the rear fork, facing the detective sensor.
3. Adjust the distance between sensor and magnet steel
4. The distance between the sensor and the magnet steel should be below 5mm. Tighten the
M4 bolt.
8. System Connection
Step 1: Connecting the display and operation button
Connect the display and operation button. Please refer to Image 10.
Image 10
