7

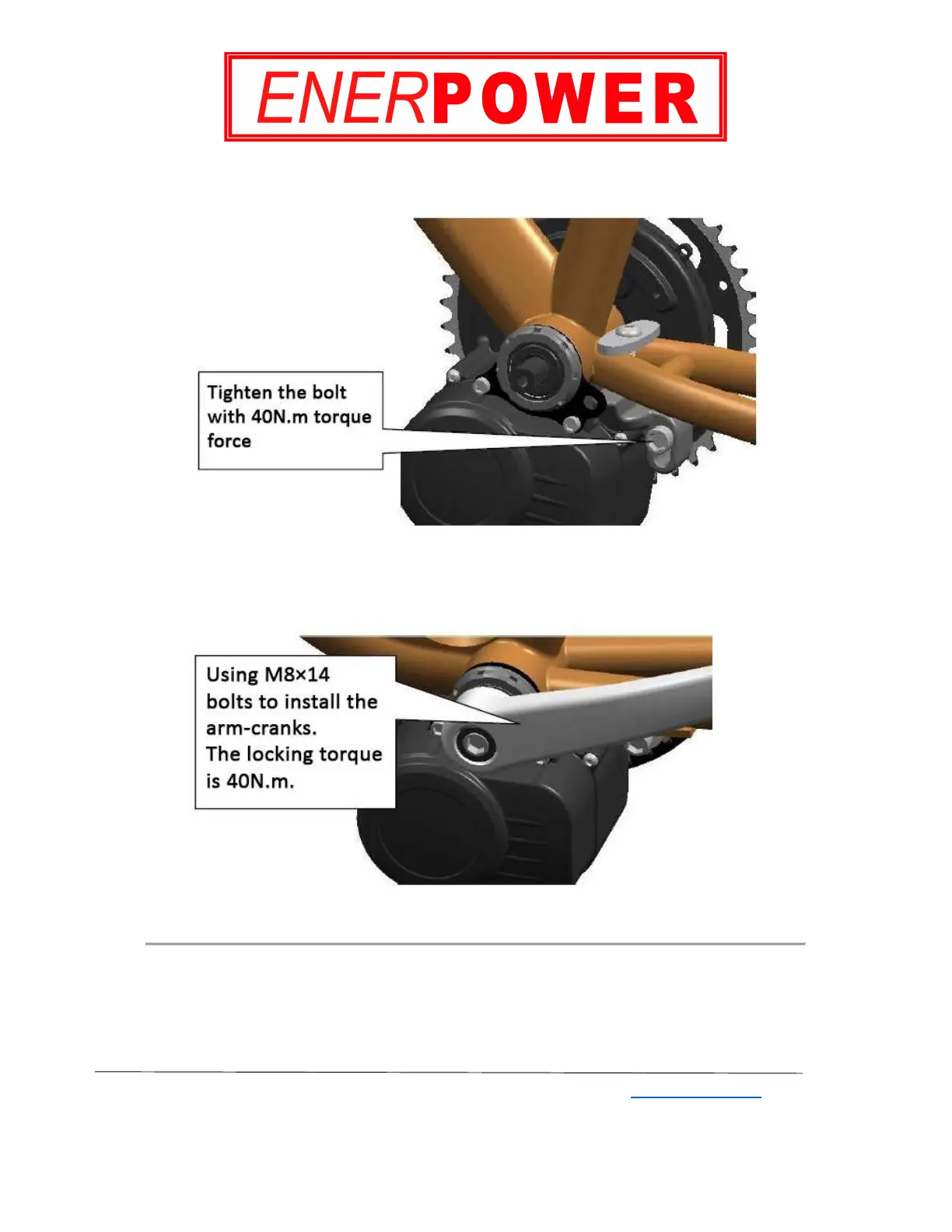

Step 5: Tightening the bolt
Tighten the bolt with 40N.m torque force. Please refer to Image 5.
Image 5
Step 6: Installing the arm-cranks
Using M8×14 bolts to install the arm-cranks. The locking torque is 40N.m.
Image 6
