Step 3: Screwing the M33.5 nut onto the BB axle
Screw the M33.5 nut onto the BB axle, using an affiliated wrench by 40N·m torque. Please refer to
Image 3.

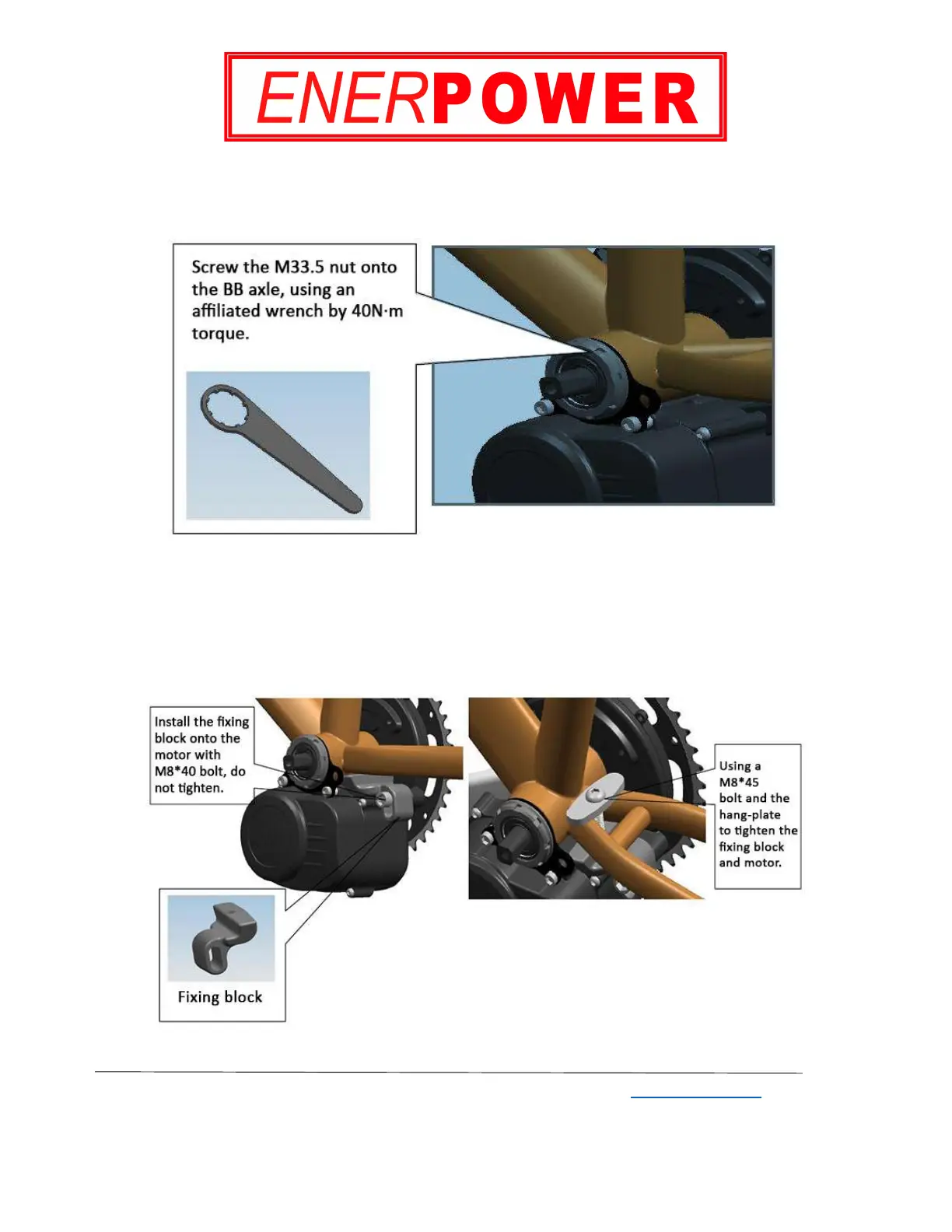

Image 3
Step 4: Fixing the main body of the motor
Fix the main body of the Motor onto bike-Frame. Please refer to Image 4.
1. Install the fixing block onto the motor with M8*40 bolt, do not tighten.
2. Using a M8 * 45 bolt and the hang-plate to tighten the fixing block and motor.
Image 4
