11
010.1220.0719 01.21

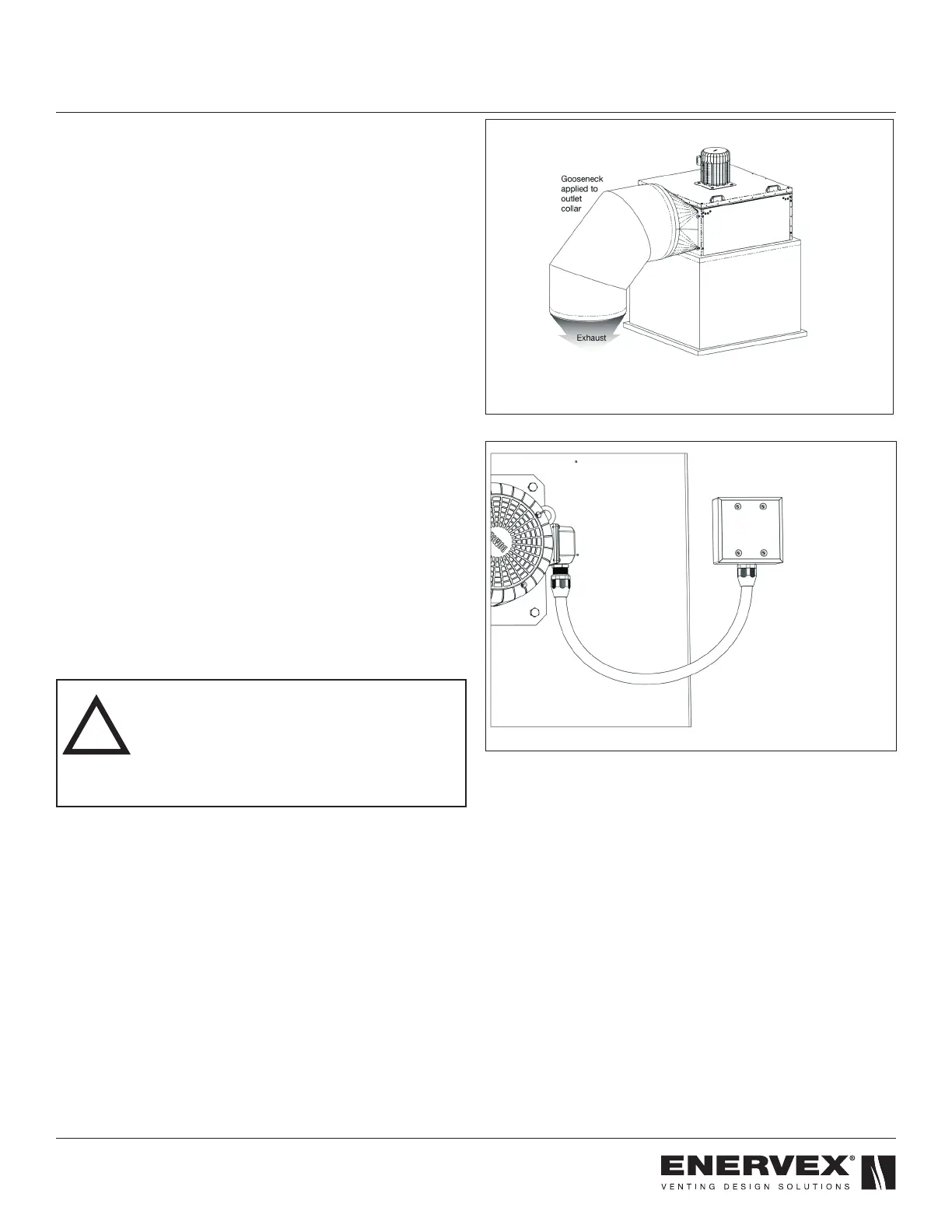

Attach the gooseneck directly to the outlet collar of the fan
unit.
DO NOT use sheet metal screws or other fasteners that will
penetrate the gooseneck and obstruct airow. Building code
prohibits the placement of mesh screens on the ventilator
outlet because of the potential re hazard from lint build-up.
Fig 10
3.8 Field Junction Box
The BEFx ventilator comes with a eld junction box that is
attached to the motor via a exible conduit.
After mounting the BEFx in its proper location and
orientation, the Field Junction Box MUST be permanantly
attached to the fan housing with the supplied sheet metal
screws. Orient the the Field Junction Box in a manner that
will minimize water ingress, and verify the BEFx access door
can open without straining, or kinking the exible conduit.
FAILURE TO FOLLOW THIS PROCEDURE VOIDS THE UL
LISTING AND CAN DAMAGE THE MOTOR.
Fig 11
WARNING
Do not install the Field Junction Box on the
service door.
AVERTISSEMENT
N’installez pas la boîte de jonction Field sur la porte de
service.
