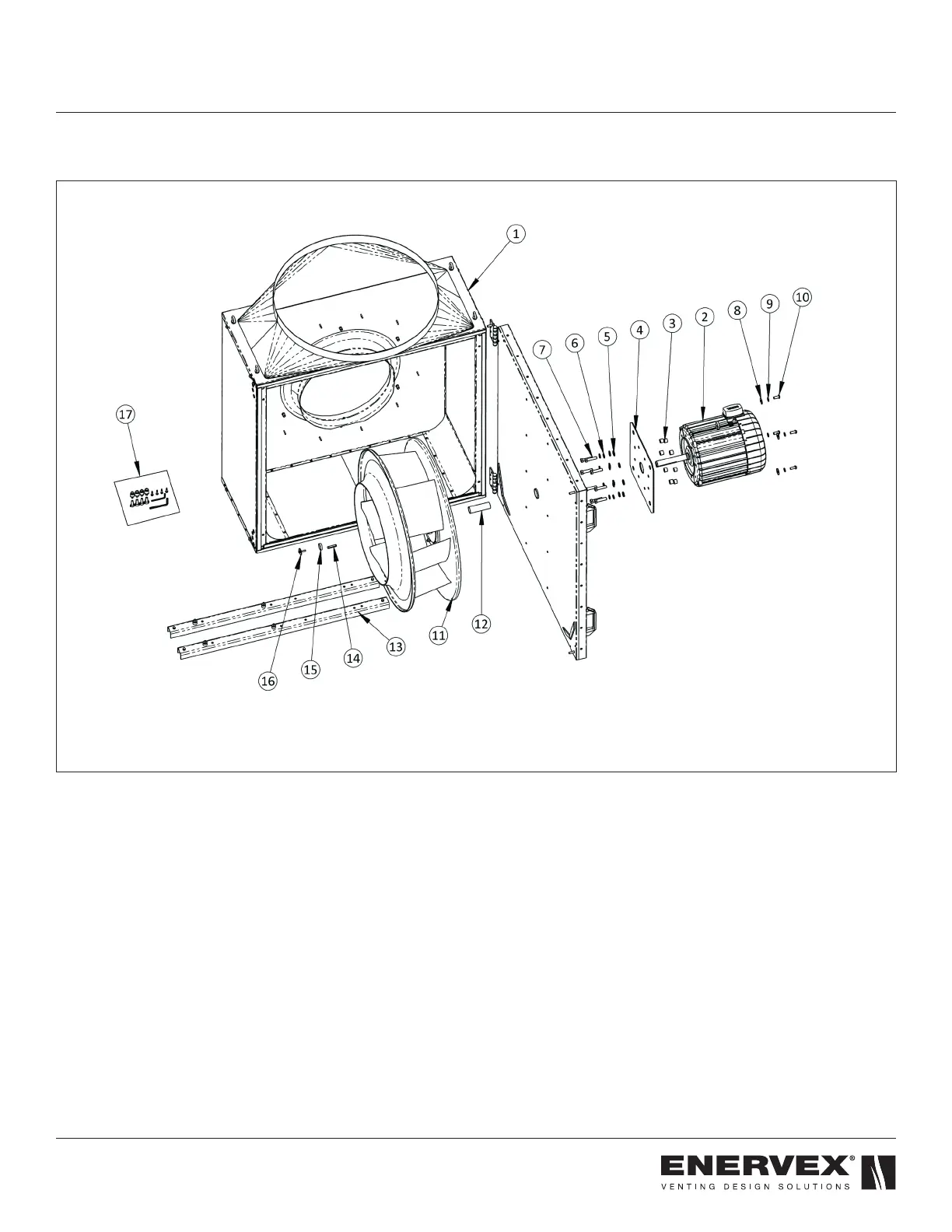

6.4 REPLACEMENT PARTS ORDERING
When ordering replacement parts, please have model number and part position number available.
1 Fan Housing
2 Motor
3 Spacer
4 Motor mounting plate (outside housing)
5 Motor mount
6 Motor mount
7 Motor mount
8 Mounting Plate hardware
9 Mounting Plate hardware
10 Mounting Plate hardware
11 Impeller
12 Impeller spacers
13 Support Legs
14 Spacers
15 Impeller mouting hardware
16 Impeller mouting hardware
17 Kit with Allen key for door locking screws and 4
sheet metal screws for support legs
