ENERVEX BEF 355x - Modifying Drive Parameters; Accessing Read-Only Parameters; Resetting Parameters and Faults; Interpreting LED Status Indicators

18
010.1220.0719 01.21

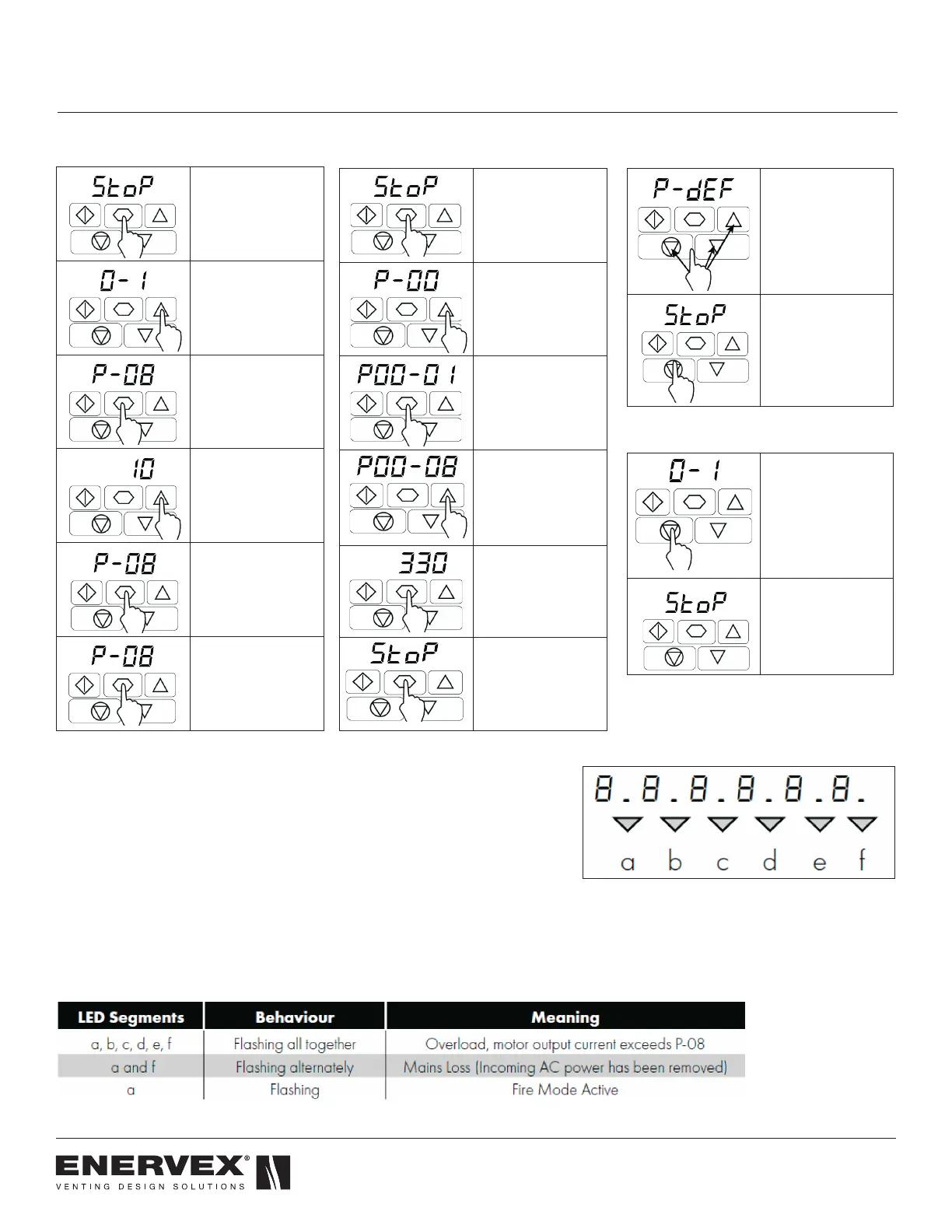

5.4 Read Only Parameter Access 5.5 Resetting Parameter
5.3 Changing Parameters
Press and hold the
Navigate button >2
seconds
Use the UP and
DOWN buttons to
selected the required
parameter
Press the Navigate
button for <1 second
Adjust the value using
the UP and DOWN
buttons
Press for <1 second
to return to the
parameter menu
Press for >2 seconds
to return to the
operating display
Press and hold the
Navigate button >2
seconds
Use the UP and
DOWN buttons to
selected the required
parameter
Press the Navigate
button for <1 second
Adjust the value using
the UP and DOWN
buttons
Press for <1 second
to return to the
parameter menu
Press for >2 seconds
to return to the
operating display
To reset parameter
values to their factory
default settings, press
and hold UP, DOWN
and STOP buttons
for >2 seconds. The
display will show
“P-dEF”
Press the STOP
buttons This will
display “StoP”
Press the STOP
button. The display
will show “StoP”.
5.6 Resetting A Fault
5.7 LED Display
The EDrive E3 has a built in 6-digit 7-Segment LED
display. In order to display certain warning, the
following methods are used.
5.7.1 LED Display Layout
See Page 17
5.7.2 LED Display Meaning
See table below
Fig 7
