3.3 Floor Or Roof Mounting
To minimize transfer of noise and vibration, the ventilator
unit should be mounted on a level, stable and vibration-free
surface. If mounting on a wooden surface, a cement tile
should be placed on the oor prior to mounting as shown in
Fig 5.
Once the installation location is selected the support legs
must be installed. To facilitate support leg installation, keep
ventilator unit on pallet.
For the standard position (Fig 5), bolt holes are pre-drilled
and support legs should be aligned and secured with the
enclosed hardware.
For all other positions, the legs should be placed in proper
position using variable mounting points.
DO NOT FASTEN THE VENTILATOR TO THE BASE.
The ventilator is tted with sound dampers suited to the
requirements of the operating area.

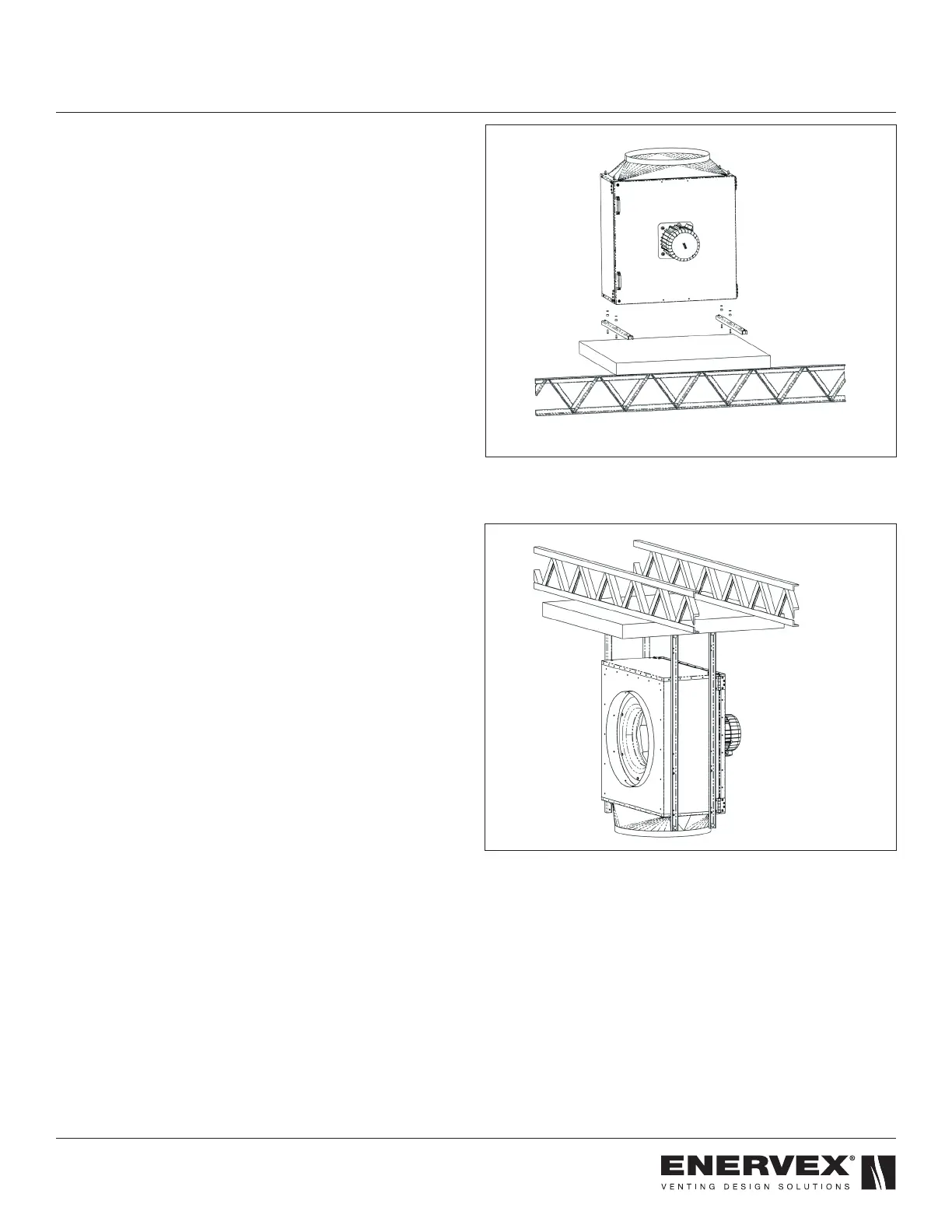

Fig 5
Fig 6
3.4 Ceiling Mounting
If hung from the ceiling, brackets with eye hooks (not
included) must be installed as shown in Fig. 6..
Ceiling bolts must be properly sized to safely carry weight of
the ventilator unit.
