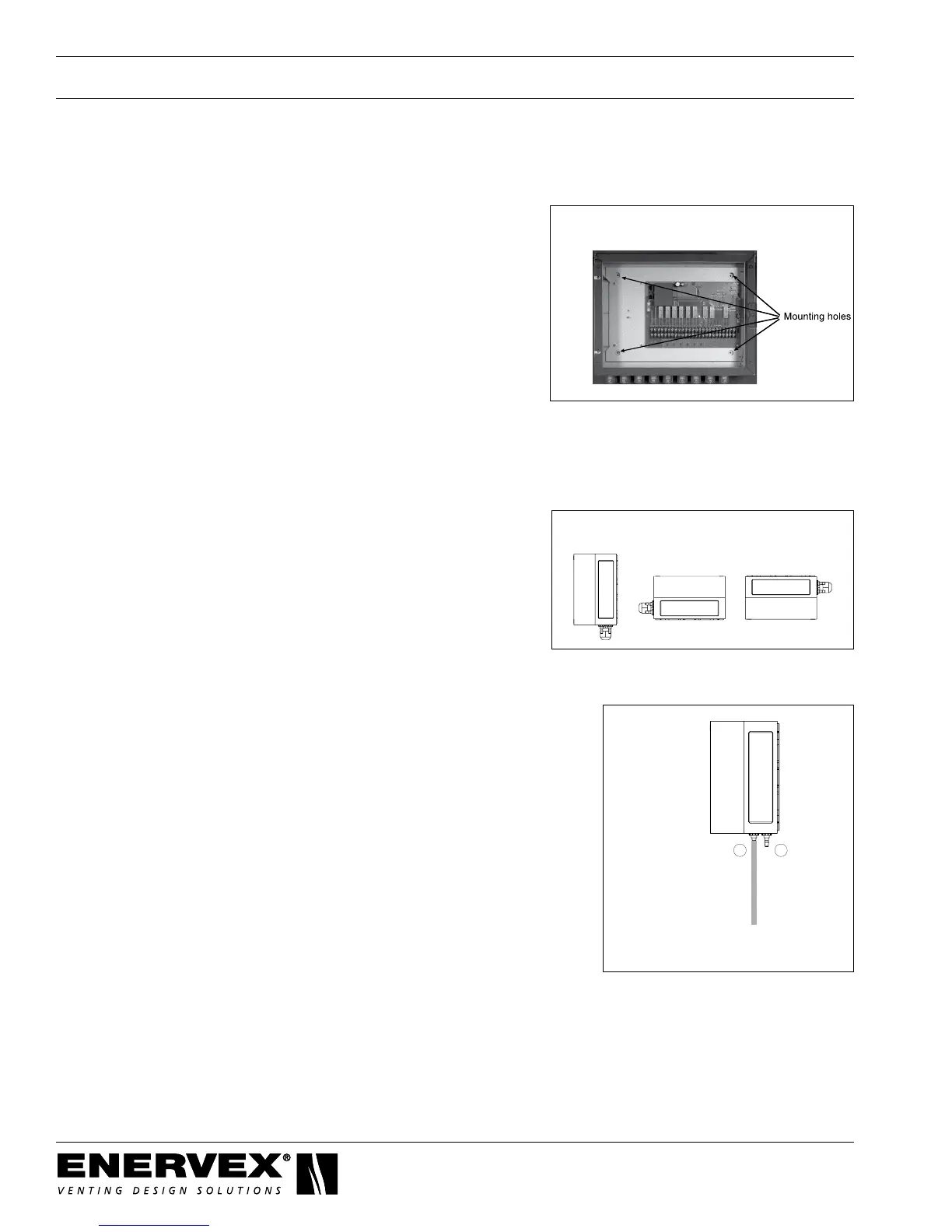

3.3 Control, XTP2 and Stack Probe Installation
a. EBC 30
To install the EBC 30:
1. Find an appropriate location, preferably, a
mechanical room.
2. Mount the EBC 30 to the wall using the mounting
holes located inside the control box. See Fig. 5.
b. XTP2 Sensor
To install the XTP2 Sensor:
1. Mount the sensor indoors within 300 feet (91
meters) of the EBC 30 and 6 feet (1 meter) of the
stack probe.
Note: You may increase the distance between the
stack probe and XTP2 sensor to 25 feet (7.6
meters) if rigid plastic or metal conduit (1/4”
diameter) is connected.
2. Connect the tubing to the NEGATIVE port of the
sensor; leave the positive port open to atmosphere.
See Fig. 7.
Fig. 6
Fig. 5
+
-
Front
Negative Pressure
Fig. 7
