Solution 1.8 Insert Installation and Operation Manual 51

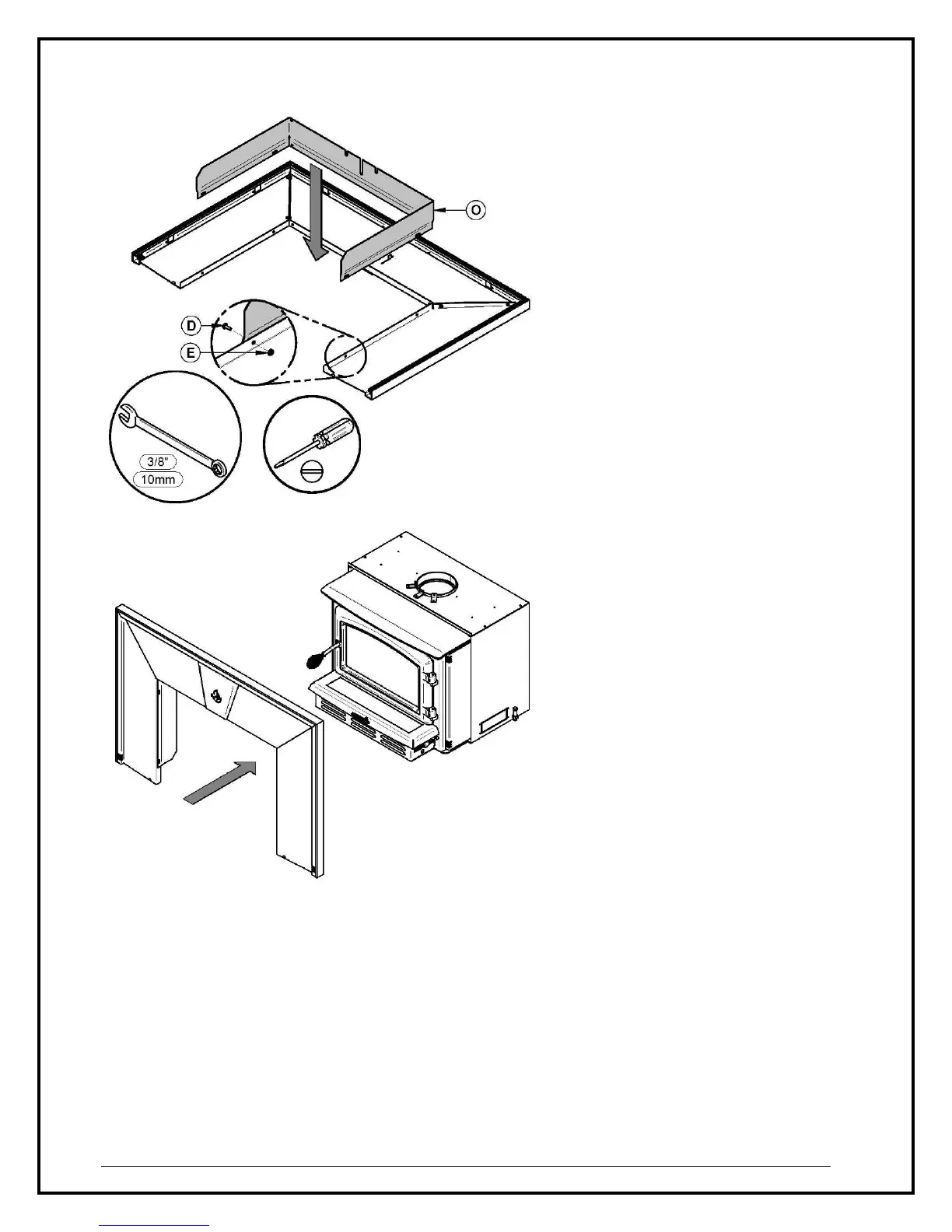

Then align the holes in the
faceplate extension (O) with the
holes in each faceplate side panels
and secure both assembly
together using four (4) bolts (D)
and nuts (E).
Center the insert into the fireplace
opening and bring the faceplate
assembly close to the appliance.
