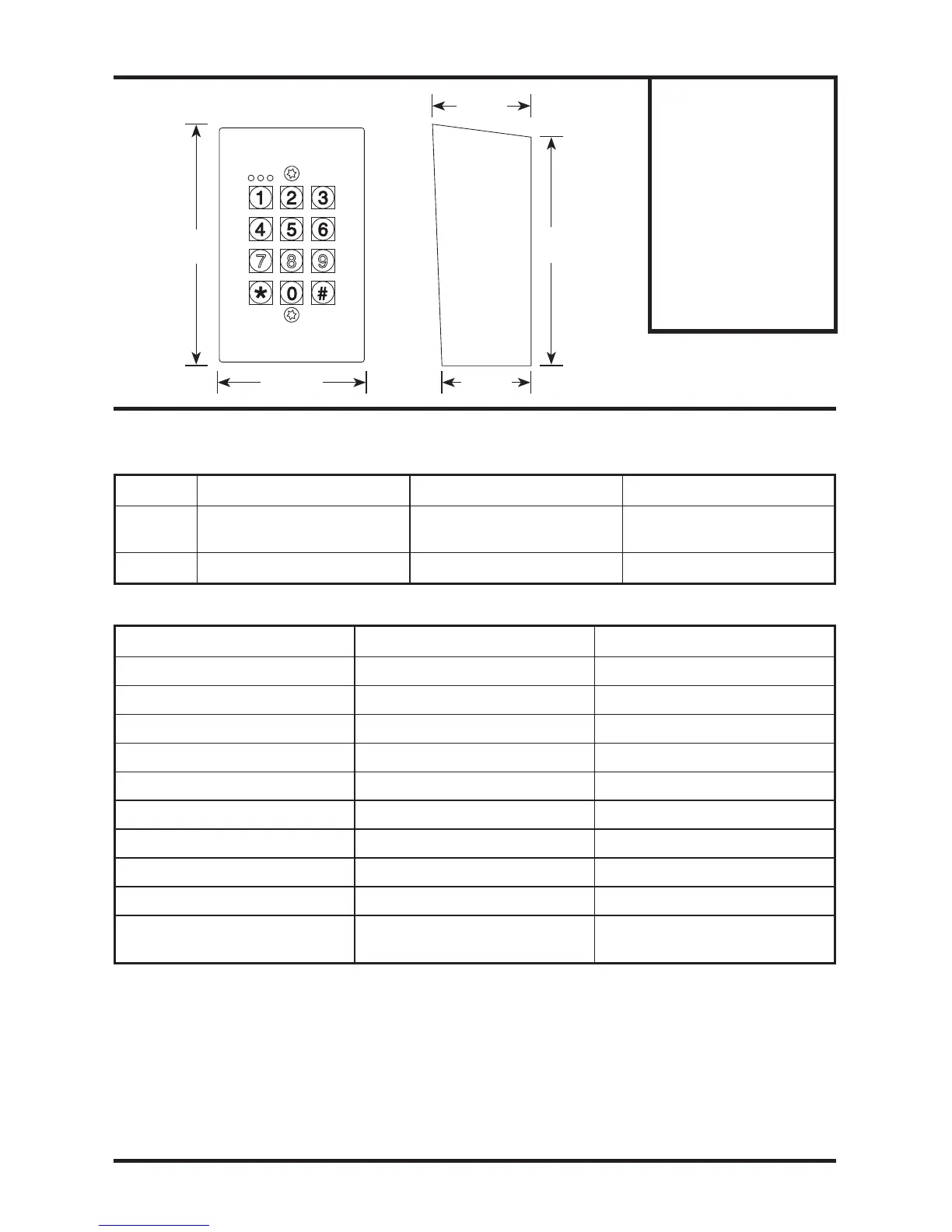

ENFORCER SK-1123-SPQ User Manual

7 8 9
1
13
/
16”
(46mm)
2
1
/
16
”
(52mm)
3
1
/
8
”
(79mm)
4
15
/
16
”
(125mm)
4
5
/
8”
(118mm)
6
ENFORCER Vandal Resistant Access Control Keypads
SECO-LARM U.S.A., Inc.
Overview:
LED Indicators and Keypad Sounds:
Parts List:
1x Keypad
1x Back box
2x Installation screws
3x Mounting screws
3x Mounting screw
anchors
1x Security wrench
1x Diode
1x Manual
Keypad Sounds and LEDs
Status
Sounds
(1)
Amber LED (Center)
In programming mode
– Steady ON
Successful key entry
1 Beep 1 Flash
Successful code/card* entry
2 Beeps 2 Flashes
Unsuccessful code/card* entry
5 Beeps 5 Flashes
Power up delay
Continuous beeping Continuous ashing
Output relay activation
(2)
1-Sec long beep –
In standby mode
(3)
– 1 Flash/sec
System refresh mode
2 Beeps Fast ashing for 2.5 min
Card*/code already stored
1 Long beep –
Real time clock stopped after
power loss
Continuous 3 fast beeps
every 5 seconds
–
NOTE:
1. Keypad sounds can be programmed ON or OFF (see page 25).
2. Output relay activation sounds can be programmed for 1-beep, 2-beeps, or OFF
(see page 25).
3. Amber center LED ashing during standby mode can be programmed ON or OFF
(see page 26).
*SK-1123-SPQ only
LED Indicators
Red LED (Left) Amber LED (Center) Green / Red LED (Right)
Steady
Output #2 Activated Programming mode
Output #1 activated (green)
Output #1 inhibited (red)
Flashing
– Standby mode Inhibit mode paused (red)

ENFORCER SK-1123-SPQ Specifications

General

Brand	ENFORCER
Model	SK-1123-SPQ
Category	Keypad
Language	English
