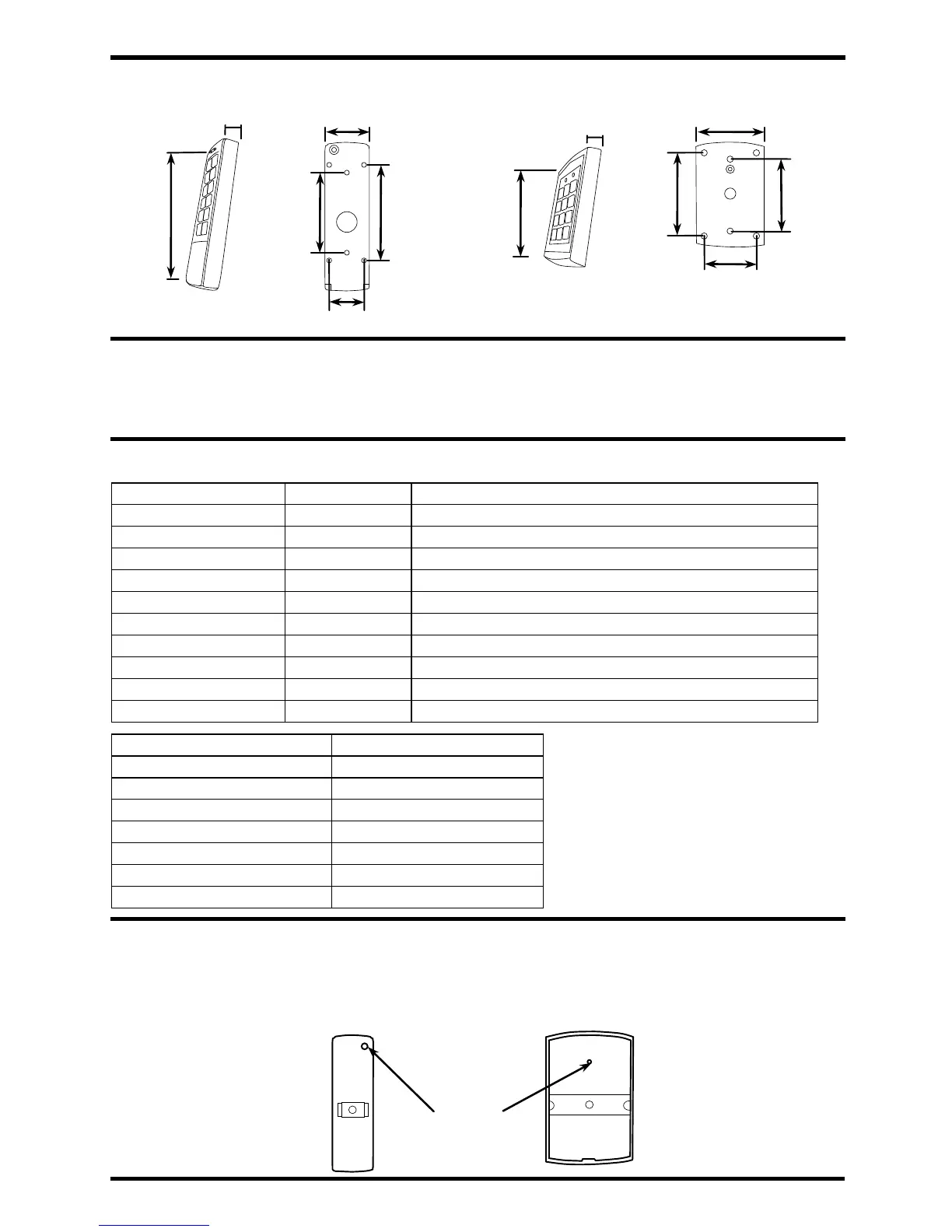

ENFORCER SK-1323-SPQ User Manual

ENFORCER Outdoor Stand-Alone Keypads
SECO-LARM U.S.A., Inc 3
LED & Audible Indicators
Optical Tamper
Audible Tones
Keypad Status
1 Long tone
Confirmation
1 Short tone
Key press
2 Short tones
Invalid entry
3 Short tones
User code/card denied
Constant short tones
Alarm triggered
6 short + 1 long tone
All user codes deleted
No tone when key is pressed
Wrong code lockout
Left LED
Right LED
Keypad Status
OFF
Green
Power ON
OFF
Orange
Programming Mode
Green
Orange flashing
Waiting to program code/card* (card+code access mode)
Red
Orange flashing
Code/card* already present
Green
Green
Relay 1 activated
Red
Green
Relay 2 activated
Orange
Green
Relay 1 and 2 both activated
Orange
Orange
Restoring factory defaults
Green flashing
Green
Waiting for code/card entry* (card+code access mode)
OFF
OFF
Power OFF / Clearing user codes
There is an optical tamper on the rear of each unit. If the sensor detects light, the tamper alarm will sound. For
information on how to program the optical tamper, please see page 13, Programming the Optical Tamper.
SK-2323 Series
SK-1323 Series
Rear
Rear
Optical
tamper
Parts List
1x Keypad
1x Manual
4x Mounting screws
4x Screw anchors
1x Metal oxide
varistor (MOV)
1x Security screw
1x Torx wrench
*Card operation with SK-2323-SPQ
and SK-1323-SPQ only.
1x Mounting template
1x Diode
Dimensions
SK-2323 Series
SK-1323 Series
6”
(152mm)
15
/
16
” (24mm)
1
3
/
4
” (44mm)
3
5
/
16
”
(84mm)
3
9
/
16
”
(90mm)
3
5
/
16
”
(84mm)
3
9
/
16
”
(90mm)
2” (50mm)
3” (76mm)
4
3
/
4
”
(120mm)
7
/
8
” (22mm)
1
3/
16
” (30mm)
