1. Find a suitable location to mount the keypad. Do not install where it will be too high or too low for most
users to operate the keypad.

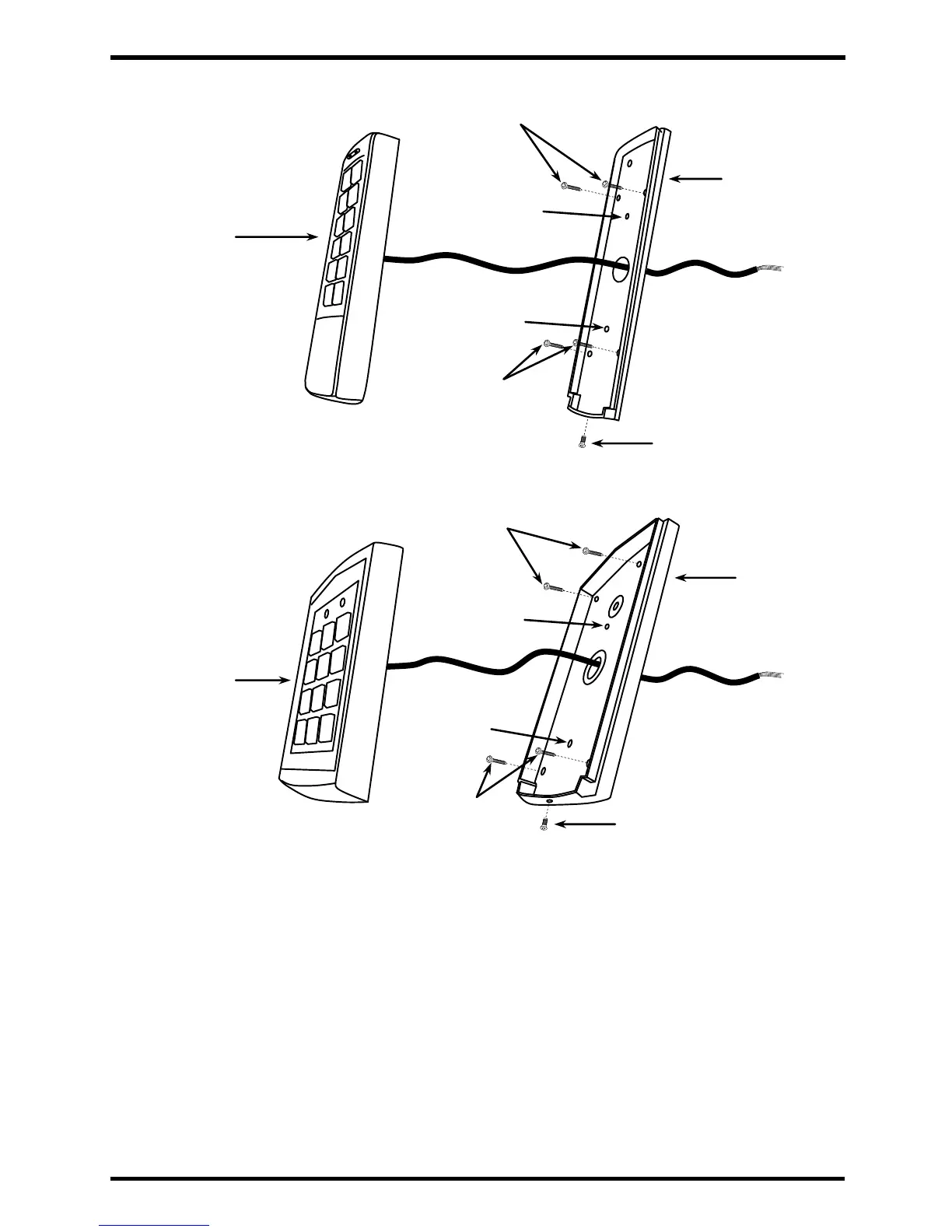

2. Using the included Torx wrench, unscrew the security screw located on the bottom of the keypad’s
mounting bracket.
3. Carefully remove the keypad from the mounting bracket.
4. Drill holes in the 4 designated mounting points located on the mounting bracket. If needed, use the
included mounting template.
5. Using the 4 included mounting screws, secure the mounting bracket to a wall or other mounting surface.
If mounting to brick or drywall, it may be necessary to use the included screw anchors.
6. If the installation is using surface wiring, mount the keypad to a single-gang box using the 2 single-gang
box mounting points.
7. Connect each of the wires that will be used to operate the keypad according to the wiring diagram on
page 4.
8. Reattach the keypad to the mounting base.
9. Use the included Torx wrench to tighten the security screw and secure the keypad to the base.
