ENFORCER SK-1323-SPQ User Manual

ENFORCER Outdoor Stand-Alone Keypads
SECO-LARM U.S.A., Inc 7

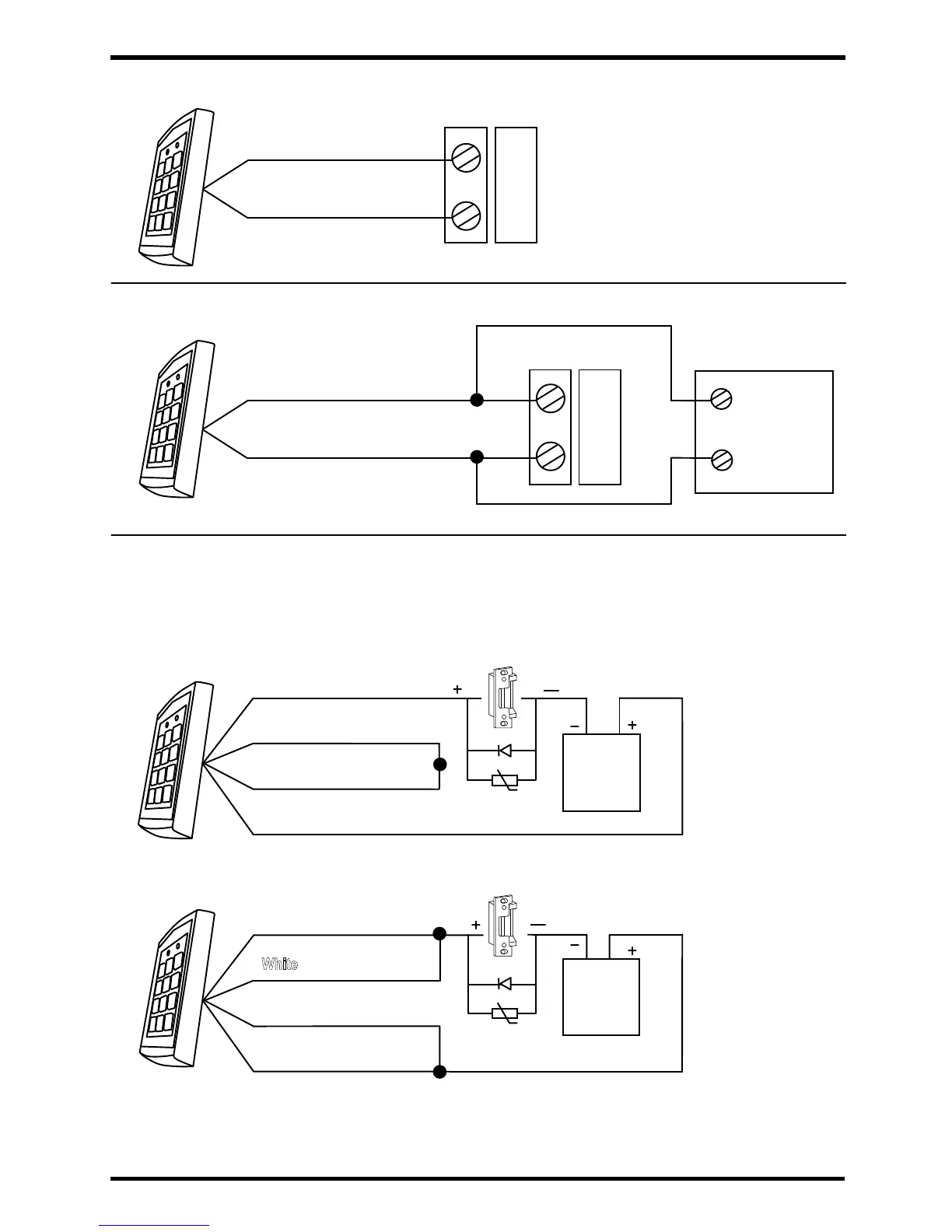

Door-Hold-Open Code
Output #1 and Output #2 can be wired together in such a way that electric lock devices remain unlocked
as long as Output #2 is activated.
Shunting an Alarm N.C. Zone
* Connect included diode and metal oxide varistor (MOV) as close as possible and in parallel with an electric
strike. This absorbs possible electromagnetic interference to prevent operation of the strike from damaging
the keypad. Do not connect diode or MOV when using electromagnetic locks.
Door Sensing
Brown—Door Sensing
Green—Common ground (-)
N.C. Dry Contact
For N.O. Locking Devices
Purple—Output #2 (COM)
Pink—Output #1 (COM)
Blue—Output #2 (N.O.)
—Output #1 (N.O.)
Electric Strike
Diode
MOV
12~24
VAC/VDC
Power
Supply
Purple—Output #2 (COM)
Blue—Output #2 (N.O.)
N.C. Dry Contact
Alarm
Control
Panel
For N.C. Locking Devices
Aqua—Output #1 (N.C.)
Pink—Output #1(COM)
Gray—Output #2 (N.C.)
Purple—Output #2 (COM)
Electric Strike
Diode
MOV
12~24
VAC/VDC
Power
Supply




