4 Installation
4.3. Electrical and hydraulics
4.3.1. Installing hydraulic hoses
1. Make sure the tool is level and resting stably.
2. Connect the base machine’s machine hitch/tiltrotator to
the tool.
3. Stop the engine and depressurize the base machine's
hydraulic outlet by operating the tool's functions.
WARNING
The hydraulic system
must be de-pressurized
before work on the
system is begun. Risk
of personal injury and
damage to property.
4. Connect the hydraulic hoses to the base machine's
hydraulic outlets. Make sure the correct hydraulic outlets
are used.
Use free return to tank. The back pressure in the return
line may not exceed 1 MPa (10 bar).

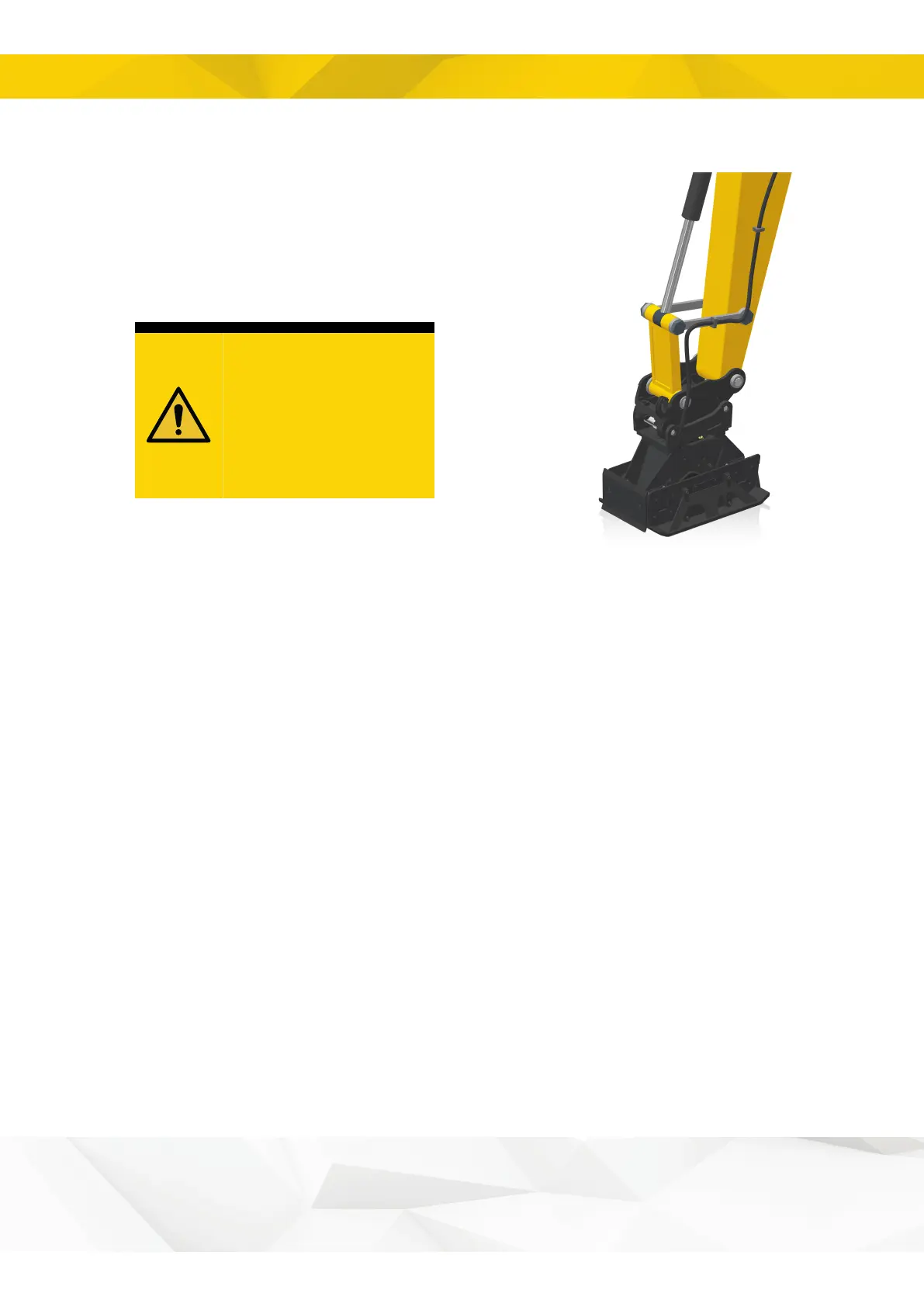

996136
Figure 3.
