6. PRODCEURES FOR REPLACING

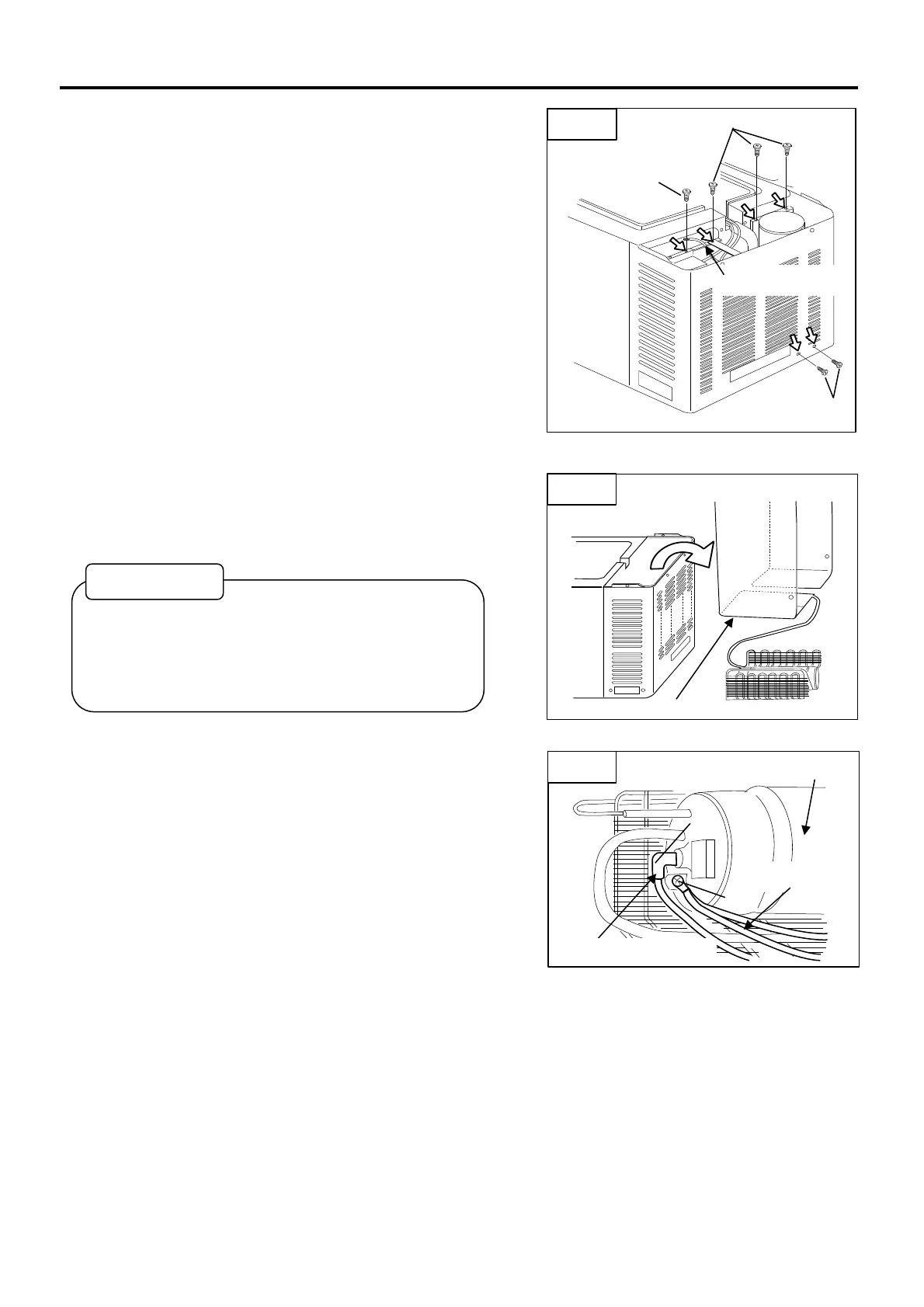

④ Remove screws at the hanger of the compressor. (Fig. 5)
(1) Remove 5 screws. 〔1〕
(1) Remove the earth wire. 〔2〕
⑤ Remove the cooling unit. (Fig.6), (Fig.7)
(1) Take out cooling unit from the cabinet.
(2) Remove the motor input wire. 〔1〕
(3) Remove the earth screw. 〔2〕
14
〔1〕
〔2〕
〔1〕
COOLING UNIT
Fig.5
Fig.6
〔1〕
〔2〕
MOTOR
Fig.7
EARTH WIRE
EARTH WIRE
MOTOR INPUT WIRE
Please remove evaporator and capillary tube carefully
for not to damage.
In addition, please be careful for not to bend capillary
tube.
WORK TIPS
