Engel MT60F-U1 - How to Replace Fan Motor

6. PRODCEURES FOR REPLACING
■ How to Replace Fan Motor
<Compressor side>
① Remove the cooling unit. (See page 13)
② Remove the fan motor. (Fig.1)
(1) Remove 2 screws. 〔1〕
<Refrigerator inside> (MT60F-U1-C)
① Remove the cooling unit. (See page 13)
② Remove the fan code. (Fig.1)
(1) Remove the screw from the clamp. 〔1〕
(2) Remove the sponge seal. 〔2〕
③ Remove the fan cover. (Fig.2)
(1) Remove 5 screws. 〔1〕
(2) Remove 4 fasteners. 〔2〕
④ Take out fan motor (Fig.3)
(1) Remove 2 screws. 〔1〕
(2) Remove 4 screws. 〔2〕
17

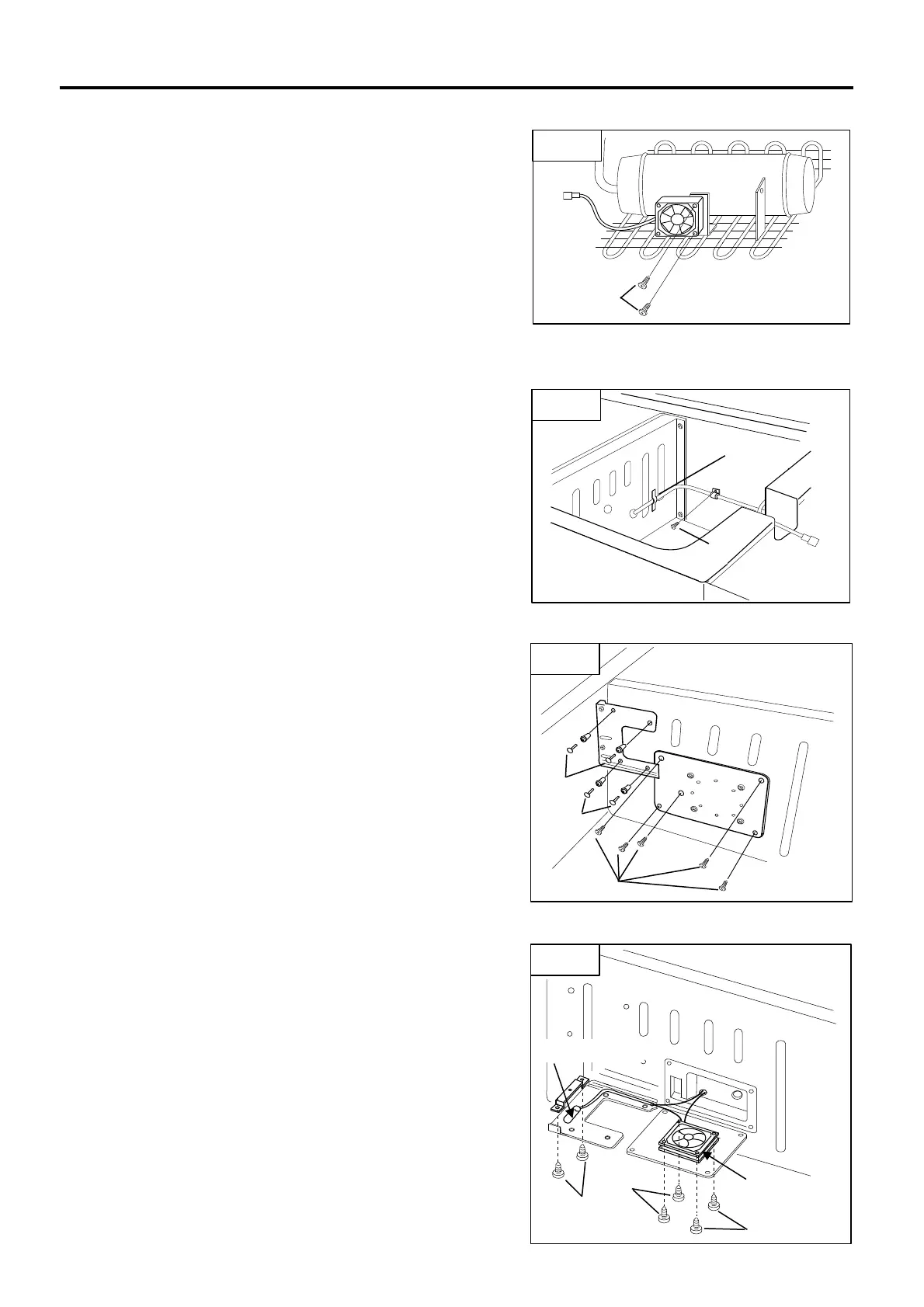

Fig.1
Fig.1
Fig.2
Fig.3
〔1〕
〔2〕
〔2〕
〔2〕
〔1〕
〔1〕
〔2〕
〔1〕
〔2〕
FAN MOTOR
THERMISTOR
