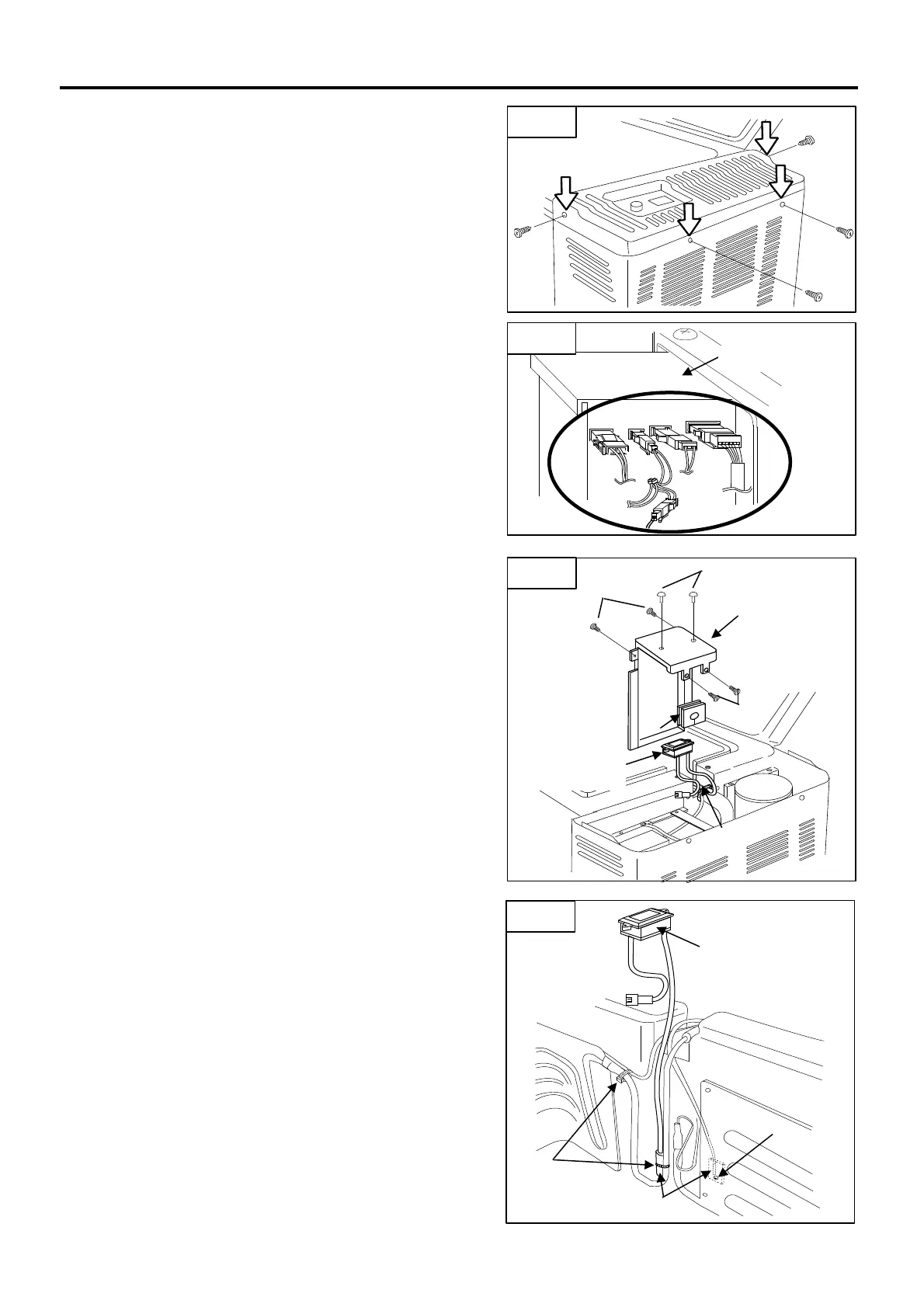

■ How to Replace Cooling Unit
① Remove the motor cover (Fig.1)
* Take out the basket first
(1) Remove 4 screws which hold Motor Cover.
② Pull out all the couplers at power supply. (Fig.2)
(1) Motor input coupler. 〔1〕
(2) Fan motor coupler. 〔2〕
(3) Thermistor coupler. 〔3〕
(4) Control assy coupler. 〔4〕
(5) Fan motor coupler (From refrigerator inside). 〔5〕
② Remove the cover pipe (Fig.3)
(1) Remove 2 fasteners. 〔1〕 (MT80F ONLY)
(2) Remove 2 screws. 〔2〕 (MT60F ONLY)
(3) Remove 2 screws and take off the pipe cover. 〔3〕
(4) Detach the rubber grommet. 〔4〕
(5) Cut the fasteners. 〔5〕
③ Remove the thermistor (Fig.4)
(1) Cut the 2 fasteners. 〔1〕
(2) Remove screw. 〔2〕
(3) Remove the thermistor
