Engel MT60F-U1 - How to Replace Power Supply

■ How to Replace Power Supply

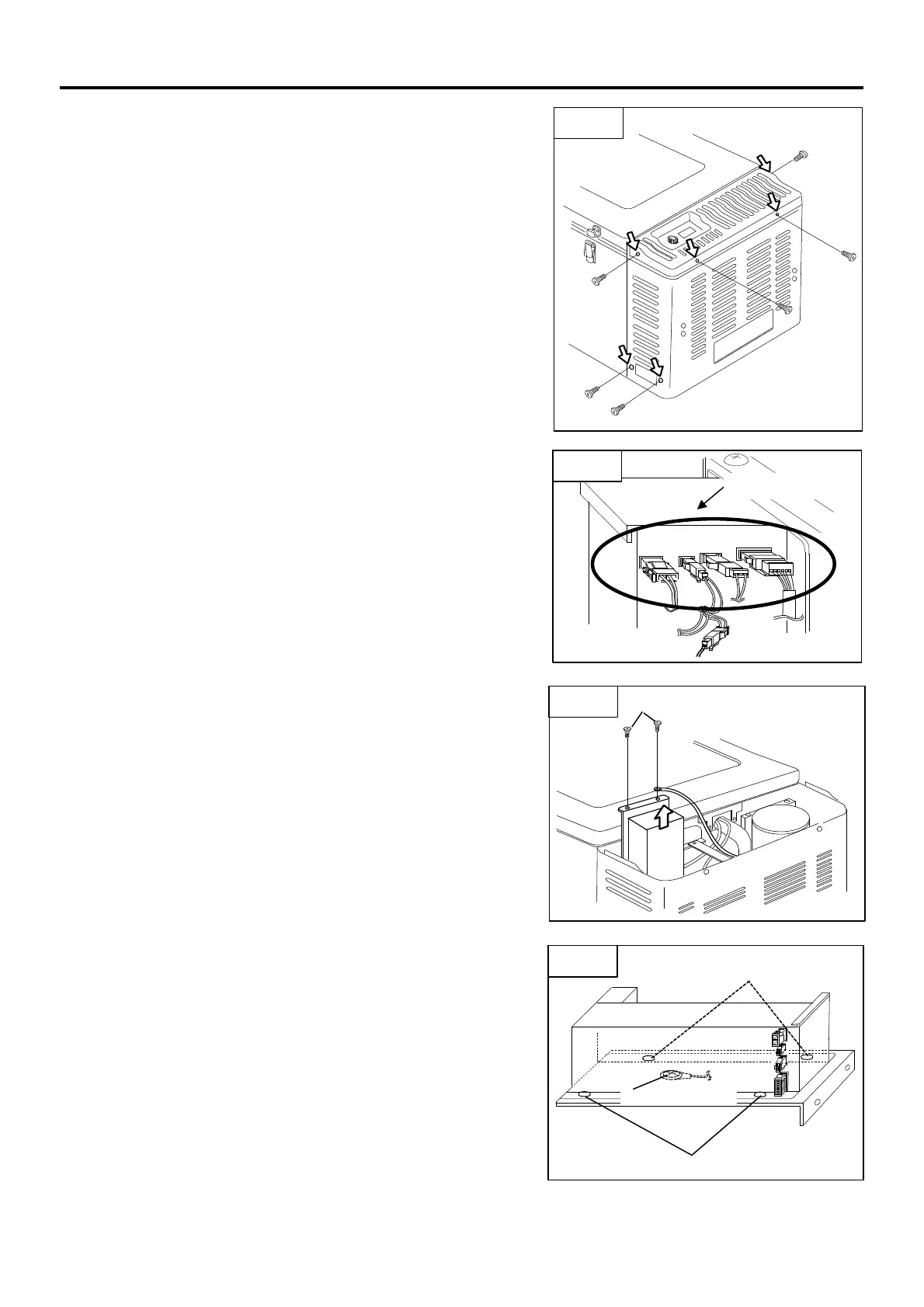

① Remove motor cover. (Fig.1)
(1) Remove 6 screws.
② Pull out all the couplers at power supply. (Fig.2)
(1) Motor input coupler. 〔1〕
(2) Fan motor coupler. 〔2〕
(3) Thermistor coupler. 〔3〕
(4) Control assy coupler. 〔4〕
③ Remove the power supply (Fig.3)
(1) Remove 2 screws. 〔1〕
④ Remove power supply from cover. (Fig.4)
(1) Remove 4 screws frome power supply plate.〔1〕
(2) Remove earth wire. 〔2〕
6. PRODCEURES FOR REPLACING
15
Fig.1
POWER SUPPLY
Fig.2
〔1〕
〔2〕
〔3〕
〔4〕
Fig.3
〔1〕
Fig.4
〔1〕
〔1〕
〔2〕 EARTH WIRE
