6. PRODCEURES FOR REPLACING
■ How to Replace Control Assy and Degital Thermometer
(MT60F-U1-C / MT80F-U1-S)

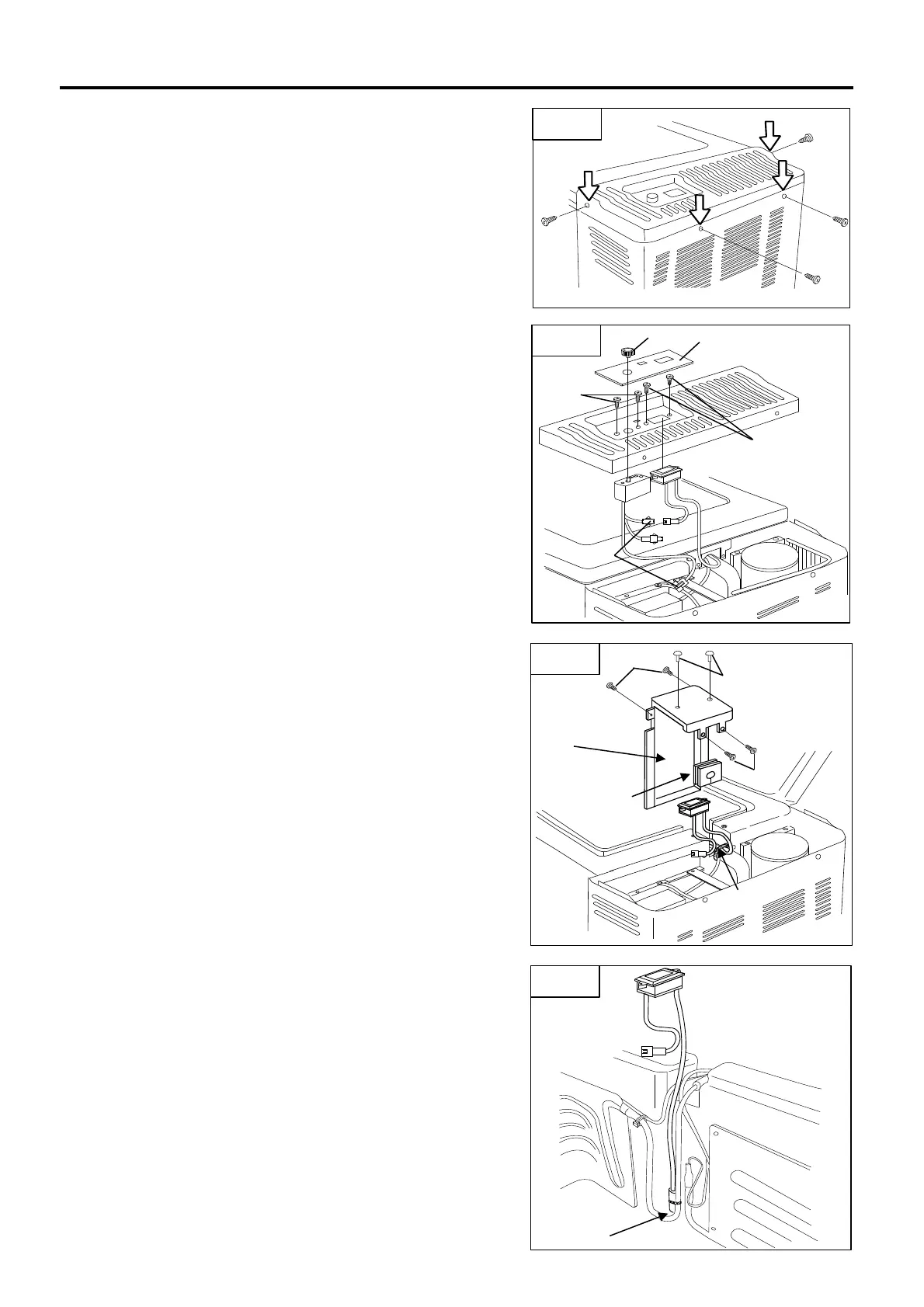

① Remove the motor cover (Fig.1)
(1) Remove 4 screws which hold Motor Cover.
② Remove the control assy and degital thermometer. (Fig.2)
(1) Remove the dial assy. 〔1〕
(2) Take off a mark. 〔2〕
(3) Remove 4 screws. 〔3〕
(4) Remove the coupler connection. 〔4〕
③ Take out cover pipe (Fig.3)
(1) Remove 2 fasteners. 〔1〕(MD80F ONLY)
(2) Remove 2 screws. 〔2〕 (MD60F ONLY)
(3) Remove 2 screws and take off the pipe cover. 〔3〕
(4) Detach the rubber grommet. 〔4〕
(5) Cut the fasteners. 〔5〕
④ Take out thermistor (Fig.4)
(1) Cut the fasteners. 〔1〕
16
Fig.1
Fig.2
Fig.3
Fig.4
〔1〕
〔4〕
〔5〕
〔3〕
〔2〕
COVER PIPE
〔1〕
〔1〕
〔2〕
〔3〕
〔4〕
〔3〕
