Engel RT5130T2 - CONNECTIONS; Front Panel Ports; Rear Panel Ports; Connecting to TV

37
EN

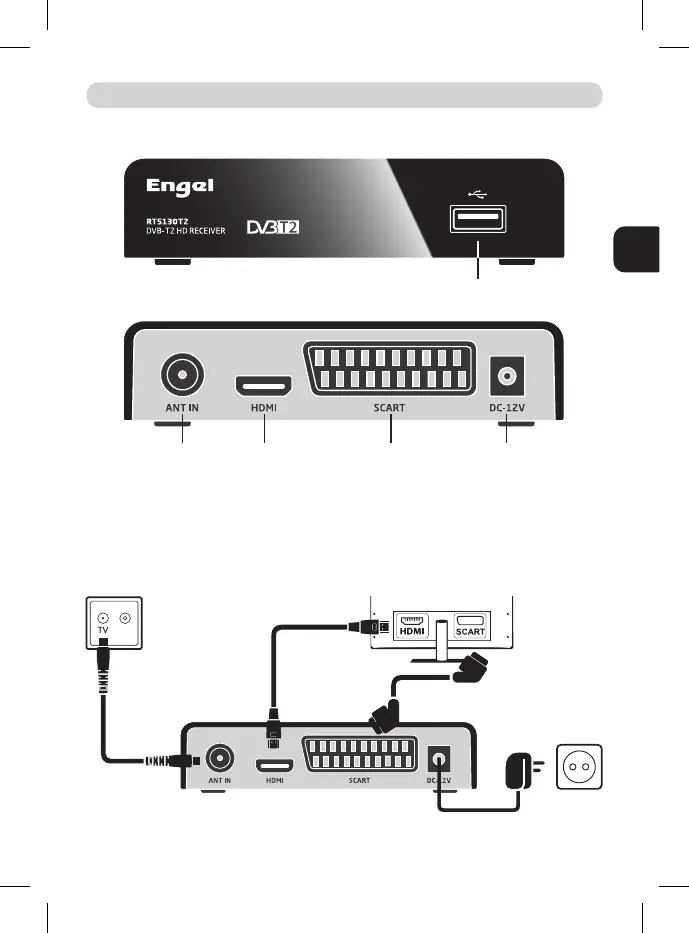

Front Panel
Rear Panel
Connecting to TV
For a basic connection from your Set Top Box to the television, use the Scart con-
nection outlined below.
For a higher quality connection, use a direct HDMI connection, see below.
CONNECTIONS
Antenna input Scart Power supplyHDMI
USB port
The picture is only for reference, please make the object as the standard.
