Engl INVADER II - Wiring of Principal Connectors

35

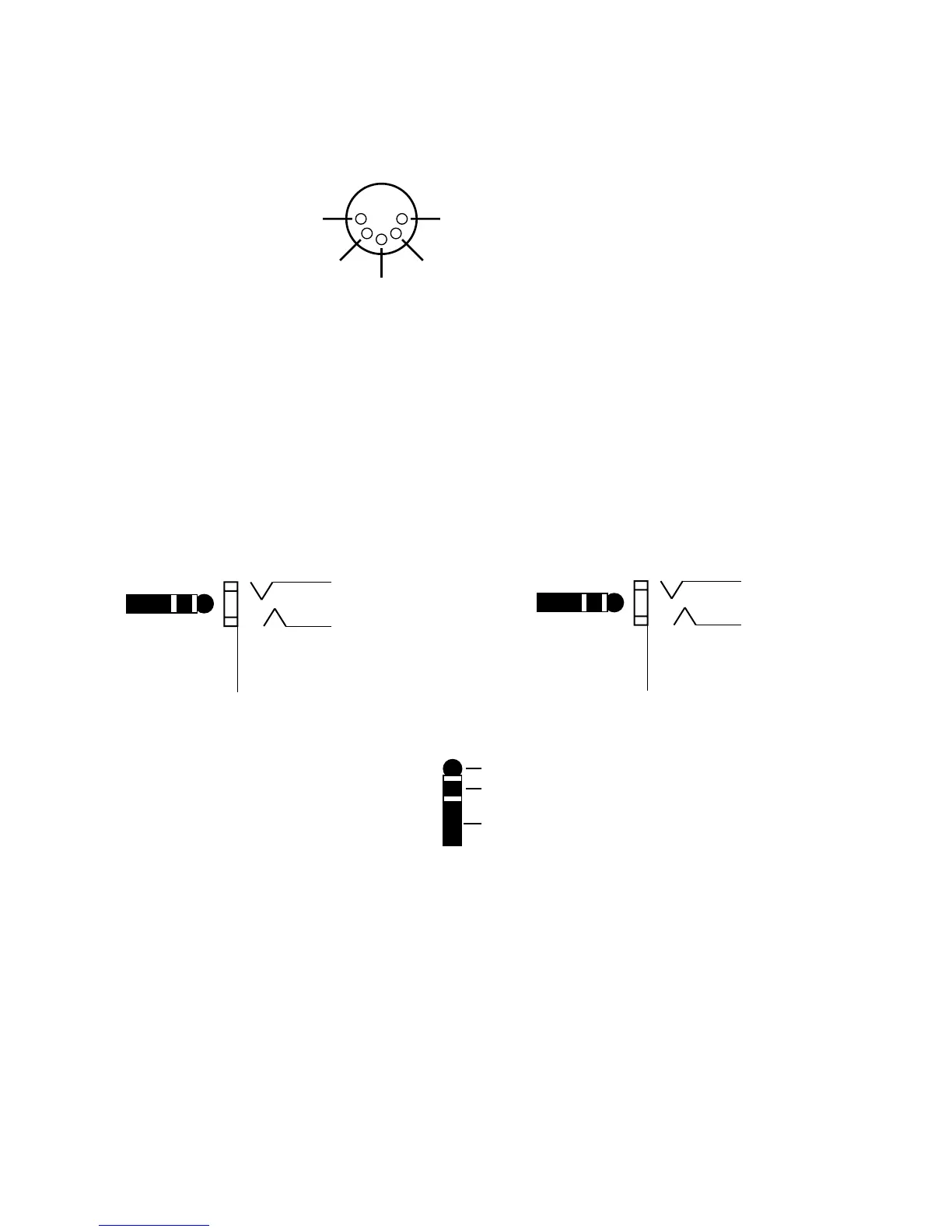

Wiring of Principal Connectors
*: AC voltage is routed to pin 1 and 2 only when the slide switch 45
is set to ENGL MIDI Footcontroller.
MIDI In (44), DIN connector
Pin 1 - power supply
approx.11 volts AC *
Pin 4 - MIDI-data wire
Pin 5 - MIDI-data wire
Pin 2 -
power supply
approx.11 volts AC *
Pin 3 - N.C.
page: 19
Stereo
1/4" jack
Serial Amp Control Port (47)
tip: + 5 volts
ring: Data
sleeve: Ground, GND
Very important:
use a stereo
plug only!
Connect ENGL
Custom Z-9
Footswitch only!
page: 21
Stereo
1/4" jack
Dual Footswitch (48)
tip: Up/Down
ring: CH 1< >3 / 2< >4
sleeve: Ground, GND
Use a stereo
plug only!
page: 21
Stereo
1/4" plug
ring
tip
sleeve
