Software Release: [App: 02.09.10051.00; Config: 2.9.20024; Built in PowerVision Configuration Studio Version: 2.9.23042;
BTL: 02.09.10015.00]
Section 40 10 00-02-0939
2019-06-13

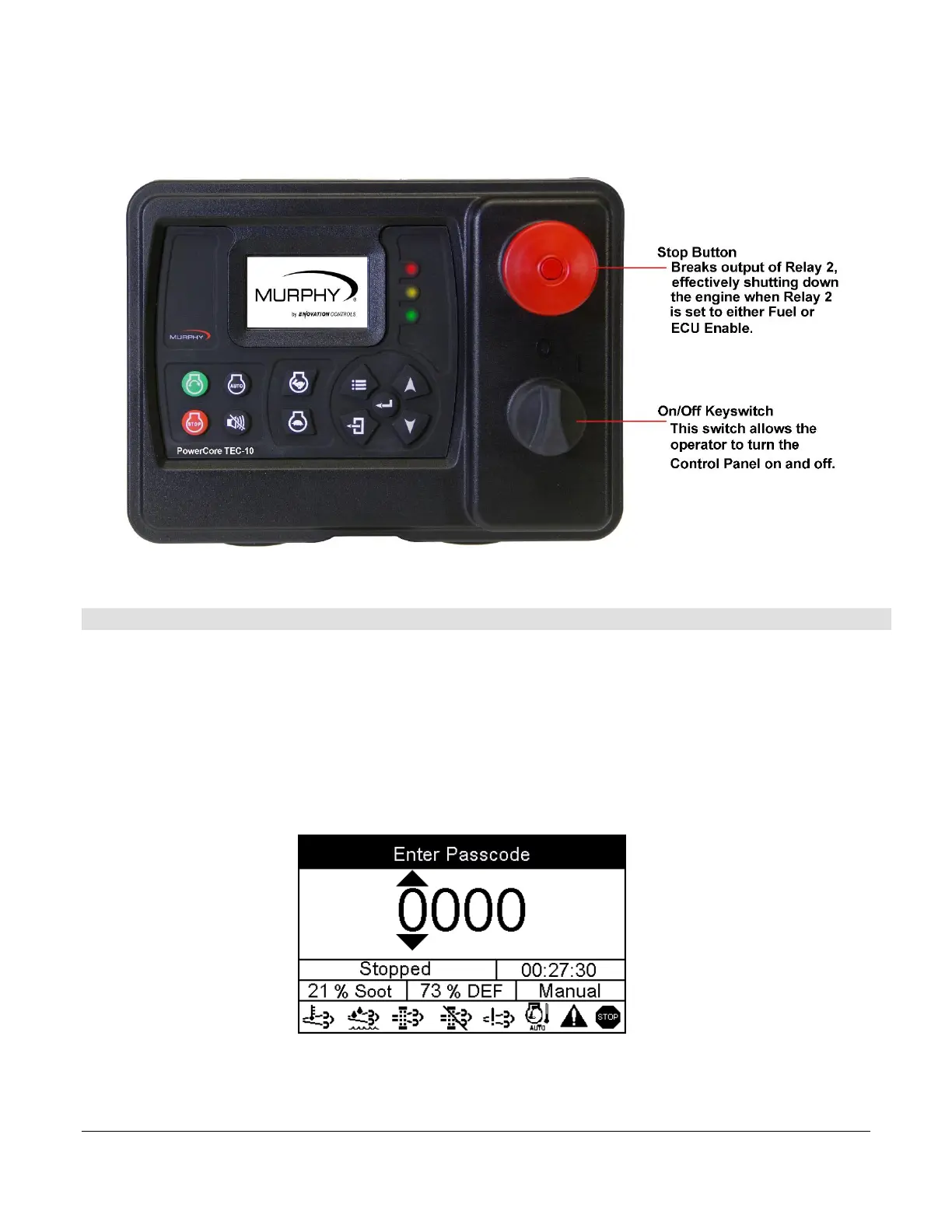

The TEC-10 Panel offering also has a keyswitch and a stop button on the front:
Figure 2: Panel stop button and on/off keyswitch
Accessing the Menu
The MPC-10 / TEC-10 have 3 menu security levels to restrict users from making changes after installation.
The security levels are Low, Medium and High. One may consider these security levels as user, technician
and OEM. By default the low level security has a small number of menu items a user can access. The medium
level security has all the low level menu items plus other menu items a technician may change while in the
field. The high security level has the entire menu visible to the operator or OEM.
To access the MPC-10 / TEC-10 menu, press the menu key. Review section Menu Glossary and Passcodes
to understand the menu level presets in the controller. The following screen will display to enter the passcode:
[Low=1111; Medium=5311; High=3482].
Figure 3: Enter Passcode
