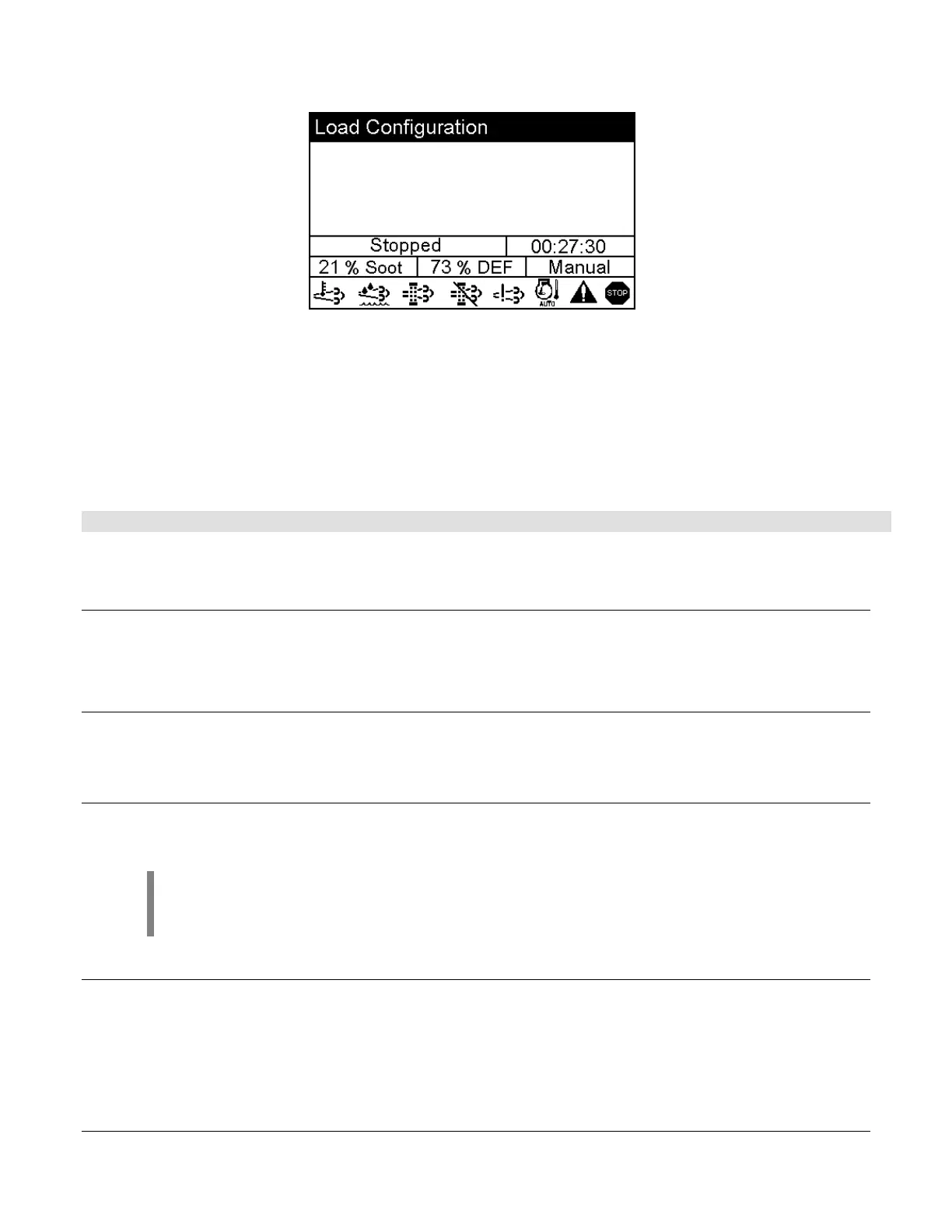

Figure 7: Main Menu page 4
Load Configuration
The Load Configuration menu is only available in the high security menu. This menu item allows the
operator to choose a file to load onto the controller when a USB drive is attached to the programming
harness of the controller. Review Load Configuration under the Menu Glossary section of this manual for
a full list and definition of this item.
Auto Start/Stop Functions Defined
There are six automatic start/stop types in the MPC-10 / TEC-10. Each is detailed below:
Single Contact Start/Stop (commonly known as single float in pumping markets)
The Single Contact Start/Stop occurs when a remote contact is active for auto start and inactive for an auto
stop as a digital input.
Two Contact Maintained Start/Stop (commonly known as dual floats in pumping markets)
The Two Contact Maintained Start/Stop occurs when both remote contacts are active for auto start and both
contacts are inactive for an auto stop as a digital input (not momentarily).
Pressure, Level and Temperature Transducer Start/Stop
A transducer can be used for Auto Start/Stop when needed for the application. There are set points that
allow the operator to enter the appropriate values.
NOTES:
The same transducer can be used for Auto Start/Stop and Auto Throttling if the
application supports transducer control.
Local Start Key Start/Stop
The Local Start Key function uses the green and red buttons on the front interface for auto start and stop
sequencing.
