IQ System Controller 2 Quick Install Guide
6
Step 2:
Install the mounting bracket

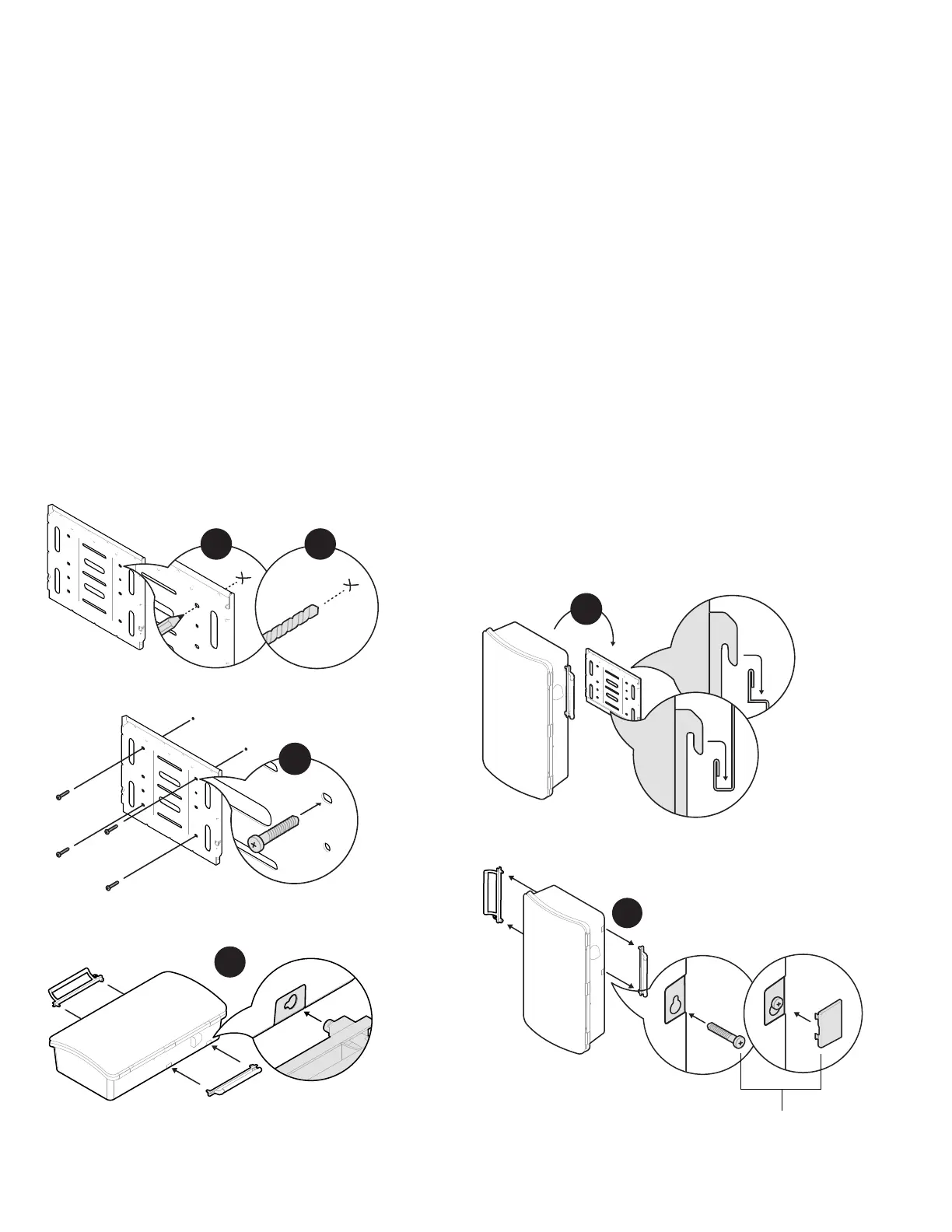

Install the mounting bracket and mount the IQ System Controller 2
as per the following instructions:
• The IQ System Controller 2 weighs 39.4 kg (87 lbs) and will
require two people to lift the unit.
• Risk of injury and equipment damage. Avoid dropping the
IQ System Controller 2. Doing so may create a hazard, cause
serious injury, and/or damage the equipment.
Provided in the accessory kit
21
4
3
5
• Risk of injury and equipment damage. Do not release the
IQ System Controller 2 until you ensure that the IQ System
Controller 2 is fully seated on the wall-mount bracket shelf.
• Use 3" long wood screw #10, 1/4", or 5/16" (depending on
the attachment wall) or masonry attachments if installed in
masonry to attach the IQ System Controller 2 bracket. Use one
screw and washer for each slot. The slot size of the IQ System
Controller 2 wall-mount bracket is 8.5 mm.
• Check the local standards with a structural engineer for local
requirements. Washers should be used between fastener heads
and wall-mount bracket.
Section A - Mounting the product
