IQ System Controller 2 Quick Install Guide

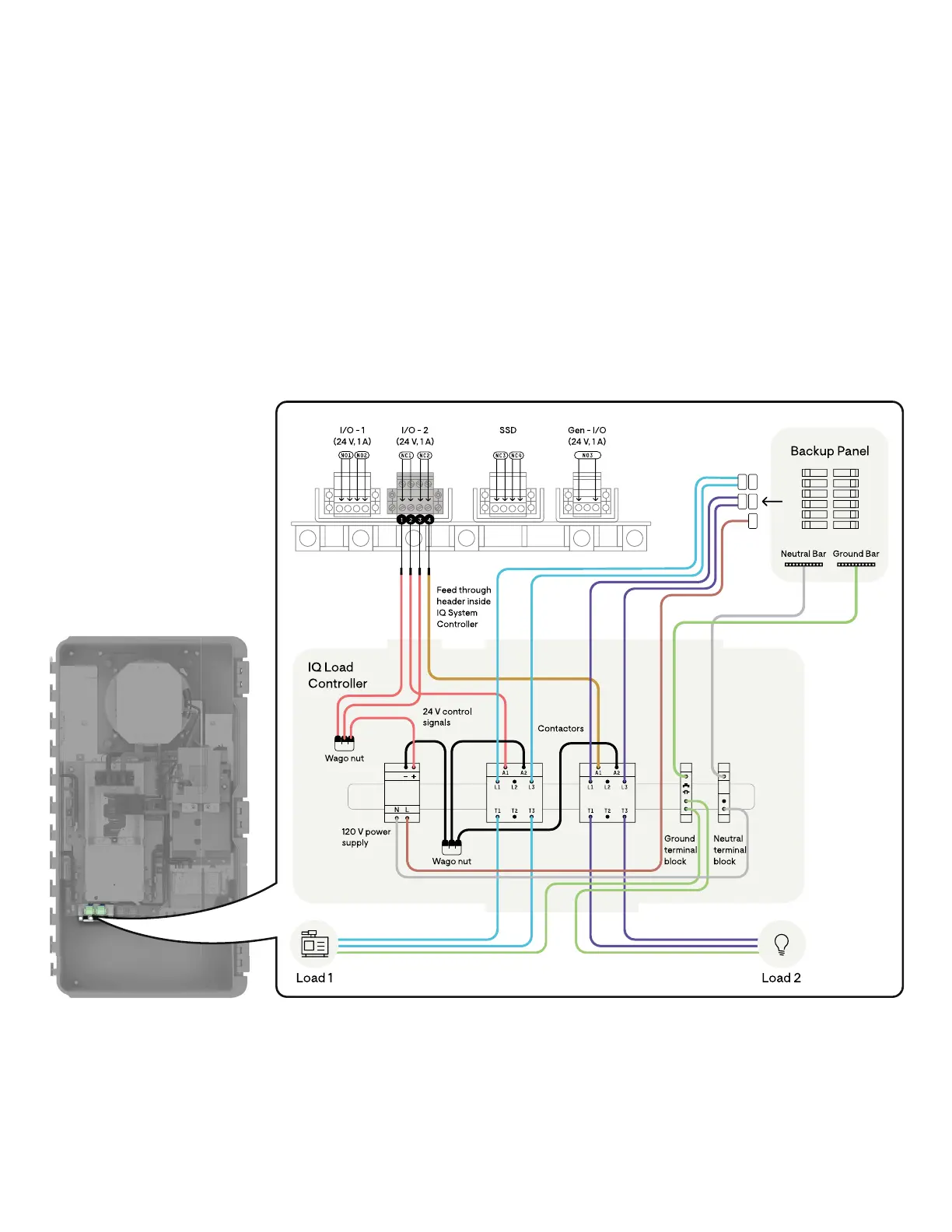

Aux wiring: IQ Load Controller
Section C - Wiring
Up to two IQ Load Controllers, each enabling ne-grained,
circuit-level control for two 240 V or four 120 V essential load
circuits can be integrated with IQ System Controller. Each 240 V
load can be controlled independently, while the 120 V loads can be
controlled in groups of up to two loads. Sunlight Backup system
needs at least one IQ Load Controller to be installed on the site.
For detailed wiring instructions, refer to the IQ Load Controller QIG.
Note: Control lines to headers support 28 AWG and 16 AWG wire gauges.
