IQ System Controller 2 Quick Install Guide
If the IQ System Controller 2 is used as service entrance
equipment:

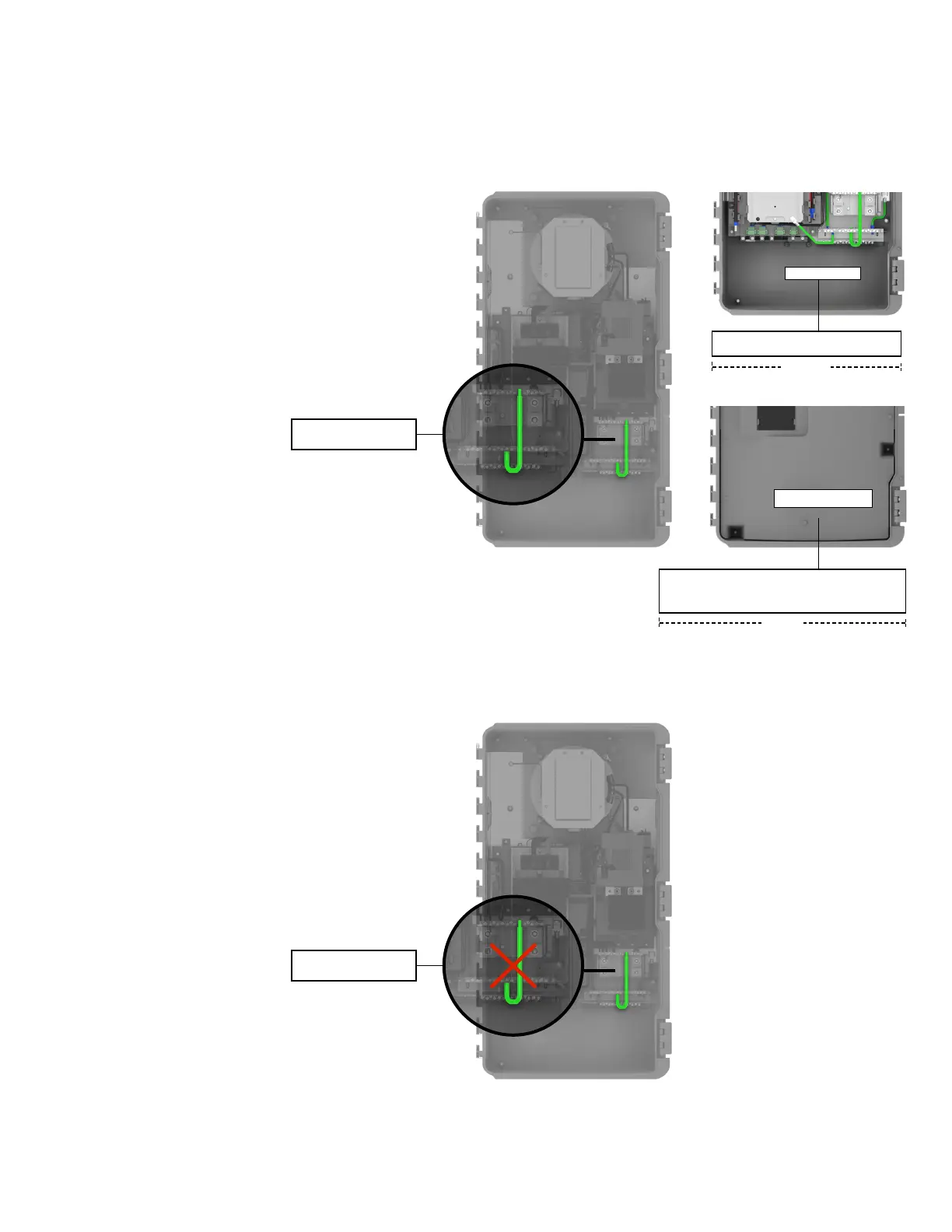

• Do not remove the green-colored system bonding jumper
• Paste labels provided in the accessory kit
If the IQ System Controller 2 is NOT used as service entrance
equipment:
• Remove the system bonding jumper wire
Grounding Electrode Terminal
Grounding Electrode Terminal
Label
Label
Main/Service Disconnect
Suitable for use as Service Equipment
Main/Service Disconnect
Suitable for use as Service Equipment
Wiring for service entrance
Section B - Mounting the breakers
Magnied view
Magnied view
