enphase IQ System Controller 2 User Manual

24
IQ System Controller 2 Quick Install Guide
AWG TORQUE (LB.IN)
300 kcmil-2 250

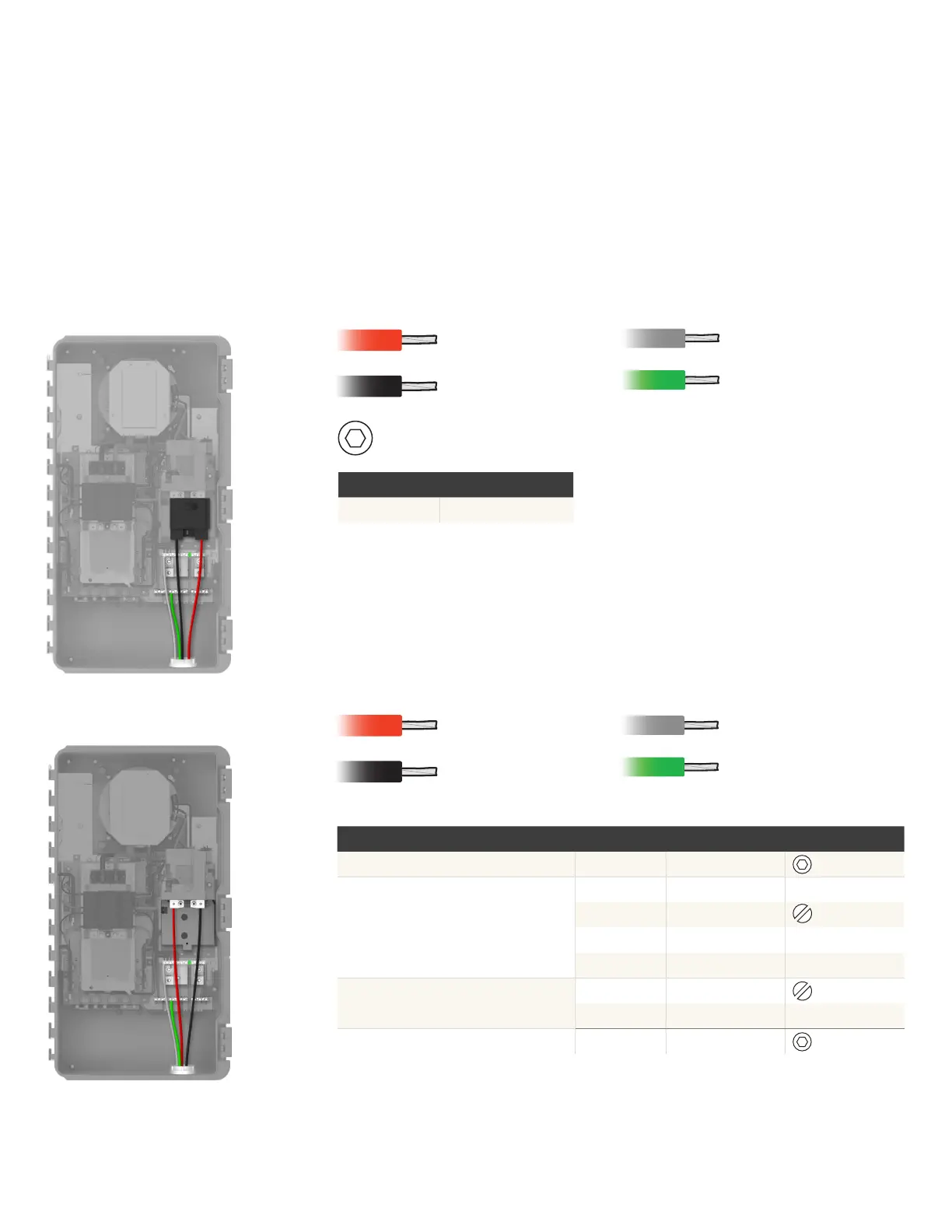

Main/supply side wiring
The main wiring is the nal step in the installation process.
The wiring is similar for both full home and partial home backup.
300 kcmil-2 AWG
1/4"
Main lug connection
1/0-14 AWG
300 kcmil-14 AWG
Section C - Wiring
1/0-14 AWG
300 kcmil-14 AWG
NEUTRAL AND GROUND CONNECTIONS AWG TORQUE (LB.IN)
Main lug 300 kcmil-1 275
Neutral and ground bar – large holes
1/0-3 50
4-6 45
8 40
10-14 35
Neutral and ground bar – small holes
6-8 25
10-14 15
Neutral lugs 300 kcmil-6 275
3/8"
1/4"
5/16"-24 UNF
#10-32 UNF
When using Eaton CSR main breaker
When not using Eaton CSR main breaker
