IQ System Controller 2 Quick Install Guide

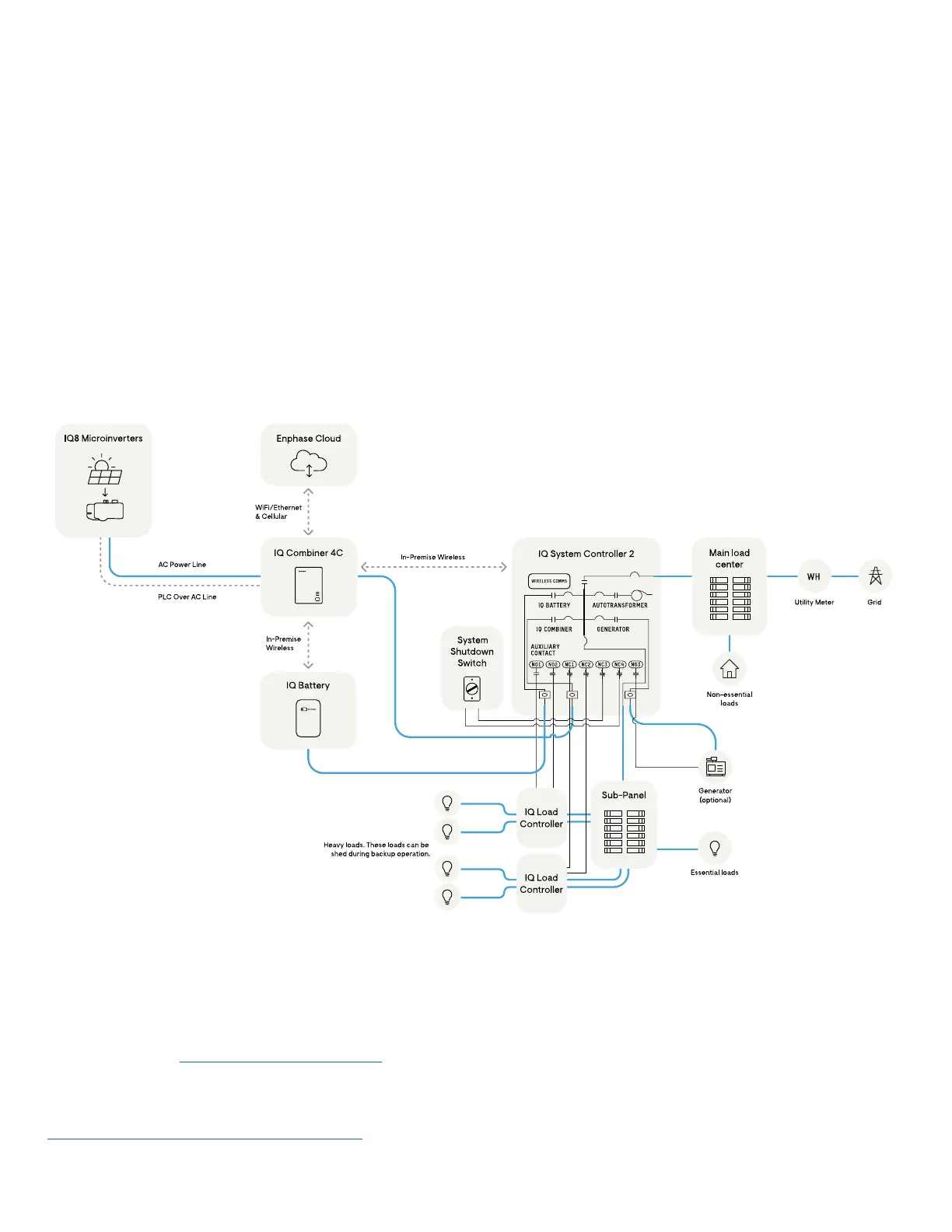

This gure shows the system conguration. For wiring
details, see the “wiring” section.
Scenario 2
Partial home backup with
IQ System Controller 2
This is the preferred conguration for partial home backup with PV
and IQ Batteries. The generator can be integrated with IQ System
Controller 2 based on the homeowner’s needs.
The microinverter ranges supported in this conguration are IQ8,
IQ6, IQ7, M215, and M250 Series.
Note: The System Shutdown Switch is not used for IQ6, IQ7, and M Series
systems. Refer to the System Shutdown wiring section for details.
Additional wiring and components are required when integrating generators.
Refer to the Generator integration page for technical briefs and guides
https://enphase.com/installers/storage/generator.

enphase IQ System Controller 2 Specifications
