enphase IQ System Controller User Manual

IQ System Controller System Shutdown – North America
4 © 2021 Enphase Energy Inc. All rights reserved.

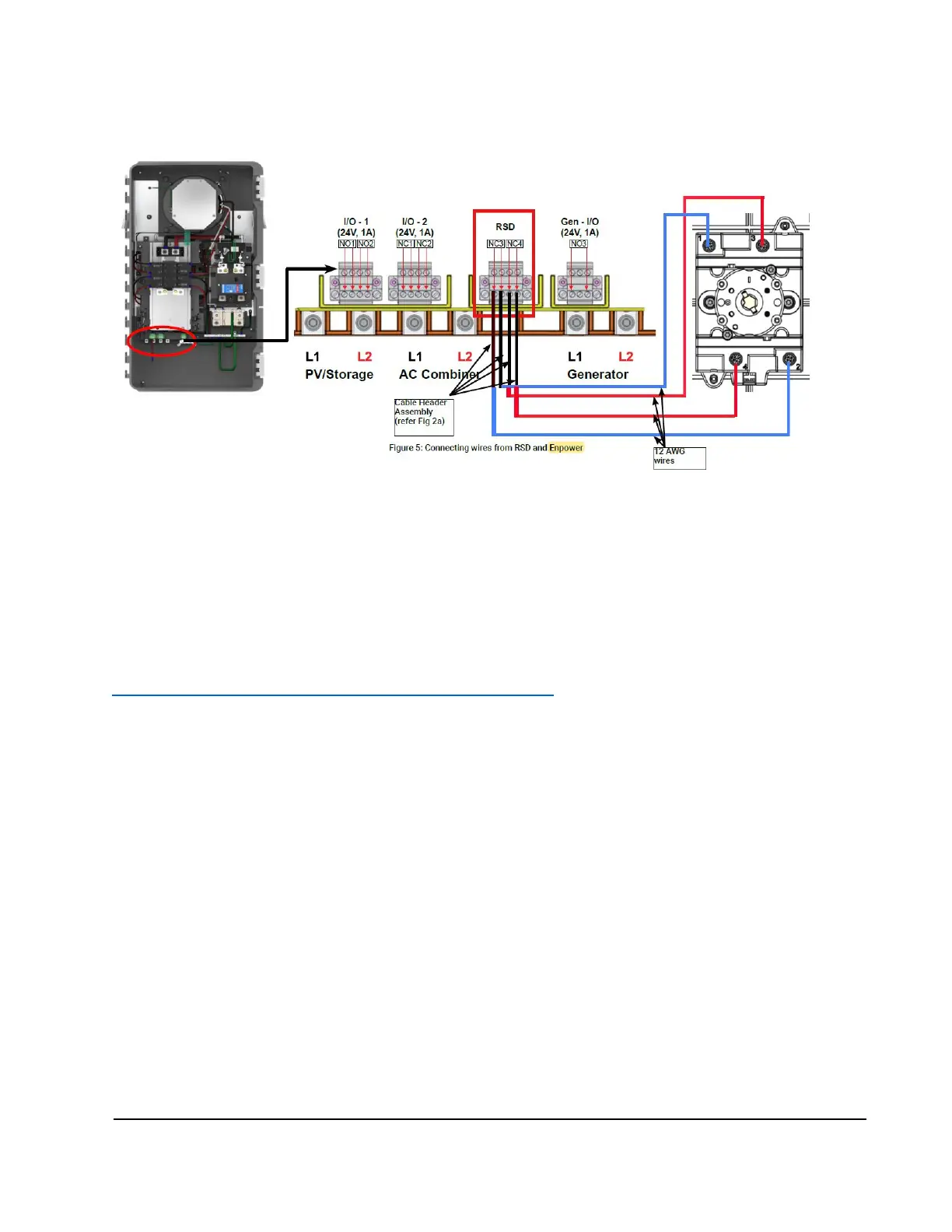

Figure 2: Wiring of Enphase Energy System Shutdown switch to NC contacts
c) Enphase Energy System Shut down as Rapid Shutdown for PV
As per the NEC requirement every PV installation should have a visible and single point of disconnection
which will shut down the PV arrays and deenergize the cables to make it safe for firefighters in the event
of an emergency and also to help electrical technicians to carry out maintenance activities safely.
The Enphase System Shutdown switch provides the functionality of Rapid shutdown as mandated by
NEC when it is used with IQ System Controller 2 which has a IQ8 micro inverter connected to it. For more
information on Rapid shutdown please refer to the Rapid Shutdown FAQ
https://community.enphase.com/s/article/Rapid-Shutdown-FAQs
In order to help identify the Rapid Shut down switch/ Enphase Energy System Shutdown labels are
provided in the SKU EP200G-NA-02-RSD. 2 labels need to be affixed and both of these need to be within
3ft (1m) from the IQ System Controller or a distance specified by the Authorities having Jurisdiction.

enphase IQ System Controller Specifications

General

Model	IQ System Controller
Grid Connection	Single Phase
Rated Output Power	Refer to specific model datasheet (e.g., IQ System Controller 2, IQ System Controller 3/3G)
Enclosure Rating	NEMA 3R
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Enclosure Environmental Rating	Outdoor
Surge Protection	Yes
Networking	Wi-Fi, Ethernet
Frequency	50/60 Hz
Communication	Zigbee (for communication with Enphase microinverters and batteries)
Compatibility	Enphase IQ Microinverters
