enphase IQ System Controller User Manual

IQ System Controller System Shutdown – North America
6 © 2021 Enphase Energy Inc. All rights reserved.
When the Enphase storage system needs service, installer or homeowner can choose to bypass the
Enphase storage system to connect the home to the grid. The current method of bypassing the Enphase
storage system consists of a few steps, including opening of all the breakers in the IQ System Controller
smart switch, turning off the DC switch on the IQ Battery units, disabling generator – if applicable, turning
the “manual override” toggle in IQ System Controller, and closing back all breakers.

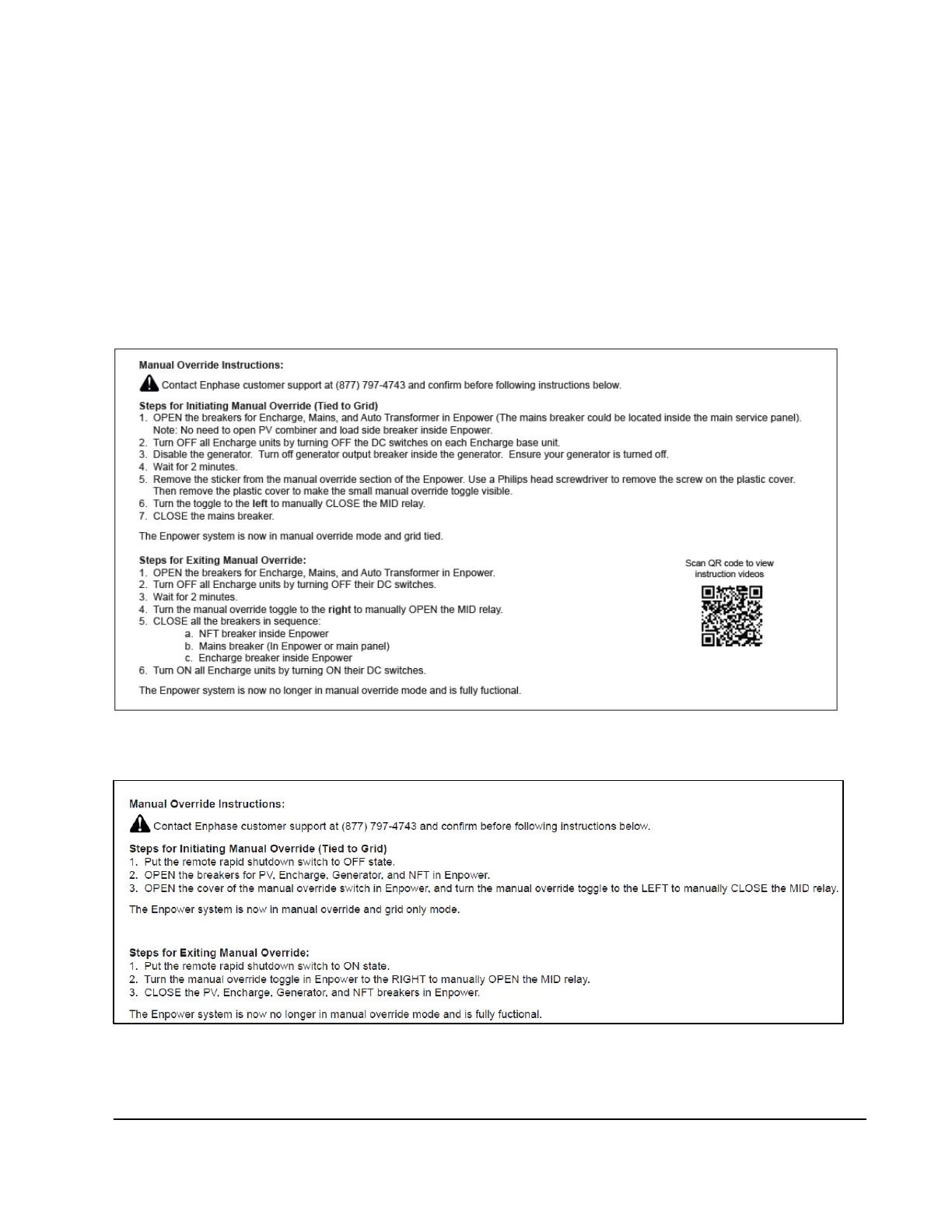

Refer to the label below for the complete instructions on how to initiate manual override and how to exist
manual override. We recommend that you download the label from this link and apply to the IQ System
Controller deadfront, above the manual override section. Please note there are separate manual over ride
instructions for System Controller 1 and 2.
The process for Manual over ride with System Controller 1 (Enpower R1) can be found in the image
below,
The steps for initiating Manual override for System Controller 2 (Enpower R2) can be found in the image
below.

enphase IQ System Controller Specifications

General

Model	IQ System Controller
Grid Connection	Single Phase
Rated Output Power	Refer to specific model datasheet (e.g., IQ System Controller 2, IQ System Controller 3/3G)
Enclosure Rating	NEMA 3R
Operating Temperature Range	-40°C to +50°C (-40°F to +122°F)
Enclosure Environmental Rating	Outdoor
Surge Protection	Yes
Networking	Wi-Fi, Ethernet
Frequency	50/60 Hz
Communication	Zigbee (for communication with Enphase microinverters and batteries)
Compatibility	Enphase IQ Microinverters
