enphase M215 Instructions

3

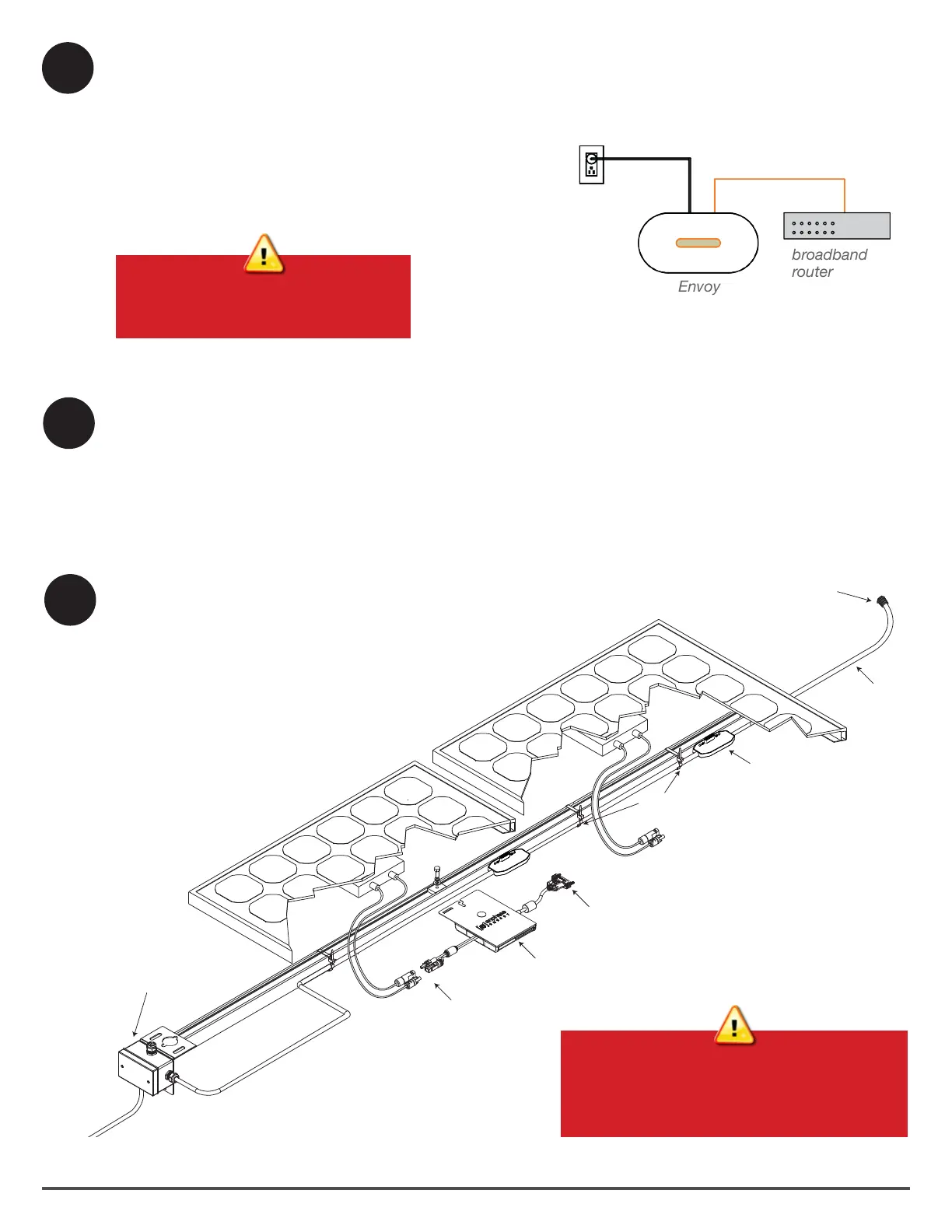

Position the Enphase Engage™ Cable
a. Plan the cable length to allow drop connectors on the Engage Cable align to with each
PV module. Allow extra length for slack, cable turns and any obstructions.
b. Cut a length of Engage Cable to meet your planned needs.
c. Lay out the cabling along the installed racking for the AC branch circuit.
Check the drop connector labels to
be sure that you have the right cable.
You must use 240 VAC cable for single-phase
or 208 VAC cable for three-phase.
terminator
Engage
Cable
drop
connector
cable ties
connects to drop
connector
M215
DC connectors
AC junction
box
2
Connect the Envoy
®
Communications Gateway™
a. Connect the Envoy to power and Internet according to the Envoy Quick Install Guide.
b. Look for the + Web indication on the LCD screen.
c. Leave the Envoy running while you install the microinverters
so that any required Envoy software upgrade completes.
Warning: Do not remove power from
the Envoy if the LCD displays:
“Upgrading. . . Do Not Unplug.”
broadband
router
Envoy
4
Install an AC Junction Box
a. Install an appropriately rated, off-the-shelf junction box
at a suitable location on the racking.
b. Provide an AC connection from the AC junction box
back to the electricity network connection using equip-
ment and practices as required by local jurisdictions.
See notes in Step Details.

enphase M215 Specifications

General

AC Power Output	215 VA
Efficiency	96%
Operating Temperature Range	-40°C to +65°C
Cooling	Natural Convection
Peak Efficiency	96.5%
CEC Weighted Efficiency	96.0%
AC Frequency	60 Hz
Warranty	25 years
AC Voltage	240 V
Communication	Power Line Communication
