ENGLISH
EN109-1670750-46 IFU Page 9 of 34
5 INSTALLATION
UNPACKING THE UNIT
The unit weighs approximately 27,2 kg, it must be unpacked by at least 2 persons.
INSPECTION
Immediately upon unpacking the unit, perform the following steps:
• Verify the delivery documents to make sure that the delivery is complete.
• Verify that the packaging contains all the items listed in the standard accessories list
(Refer chapter- Package Contents in this Instructions for Use).
• Check the external components and accessories for possible damage due to transport.

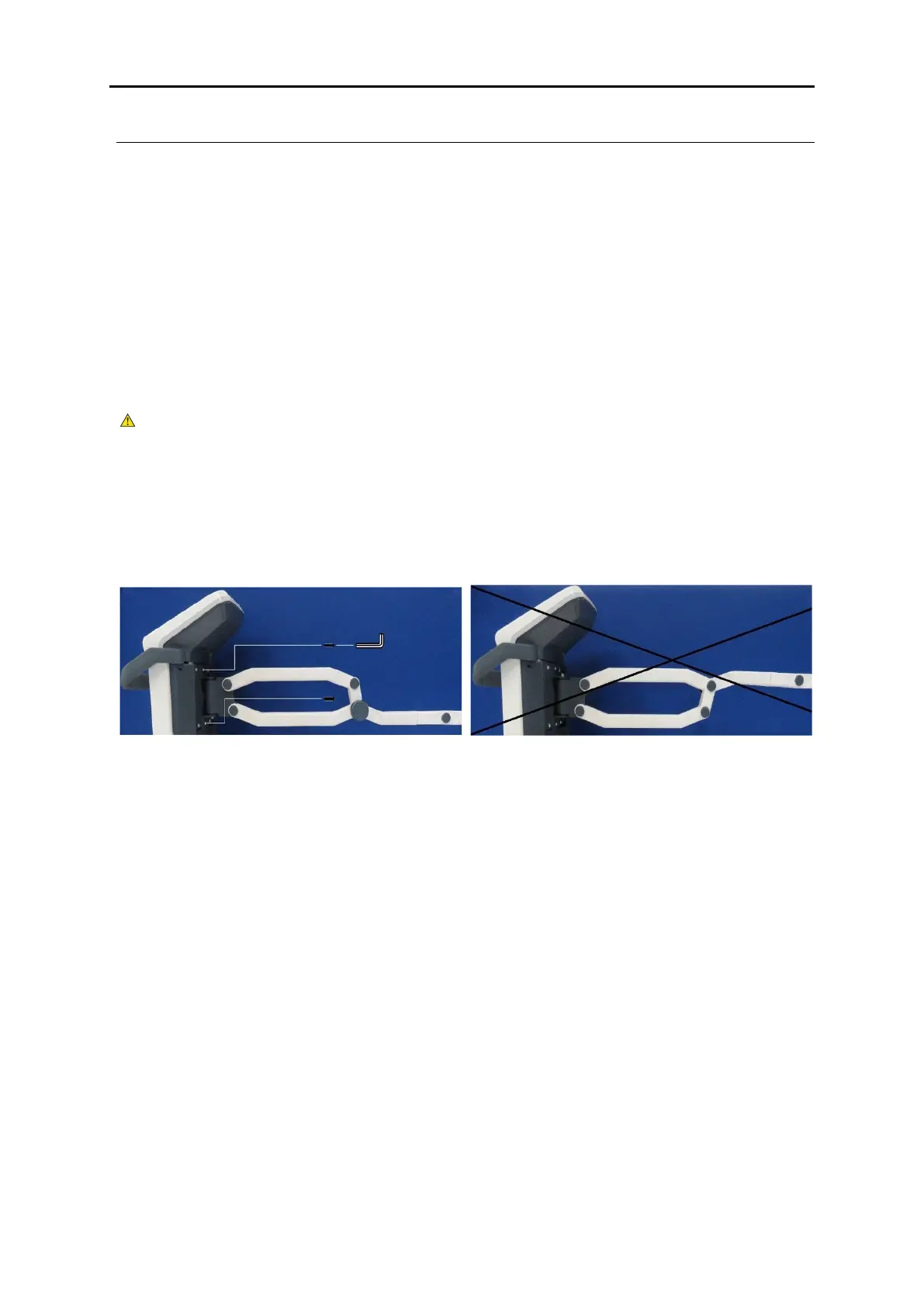

ATTACHING ELECTRODE ARMS
The electrode arms have to be mounted in the correct way on the side of the device as
shown in the picture. The socket head screw wrench supplied should be used to attach
them.
ATTACHING ELECTRODES(CIRCUPLODES)
• Loosen the electrode lock knob.
• Push the electrode through the hole in the electrode arm until the electrode rod is seen
on the other side of the hole.
• Tighten the Electrode Lock Knob.
• Lock the rear end wheels and the Electrode arm to prevent movement of the arm and
Circuplode.
• Attach the cable to the electrode.
• Fit the cord of the electrode into the cable clip on the outside of the arm.
• Plug the connector of the electrode cable into the output socket [7] on the rear panel.
