6.4 Mounting on the traction frame
The Eltrac 471 may be mounted on different Enraf-Nonius (traction) benches by way of a traction frame.
Moreover, the device may be mounted on the mobile traction frame for cervical traction. For mounting
instructions, please refer to the documentation supplied with the traction frames.
7 Application Information
7.1 Operating sequence example
As the operating sequence is dependent on the therapy and accessories employed, only one example
is given.
Requirements
Eltrac 471 and traction table
Pelvic belt
Thoracic belt
Flexi stool
Fixation clamps (2x)
a. Slide the rolling traction section of the table up against the foldable section, and lock it in position.
b. Lay the pelvic belt against the cranial edge of the rolling traction section.
c. Lay the thoracic belt against the caudal edge of the foldable section.
d. Slide the two fixation clamps into the tube underneath the foldable section.
e. Fit the fixation straps to the fixation clamps.
f. Adjust the fixation straps: when they are stretched out, the thoracic belt still touches the caudal edge of
the foldable section.
g. Place the patient in position, place the flexi stool and fasten the belts.
h. Attach the carabiner hook of the cord to the pelvic belt.
i. Hand over the patient stop switch to the patient and explain its operation.
j. Release the rolling traction section.
k. Start the treatment.
l. If necessary, adjust the parameters during treatment.
m. After treatment, the patient should have sufficient time to recover.
7.2 Cervical traction
For cervical traction forces over 200 Newton are not suitable. By setting the traction force, a warning will
be issued when exceeding this. To ensure safe use, traction force over 200 Newton can only be selected
in case it is confirmed not to perform cervical traction.
7.3 Cord guidance
!
!!
!
CAUTION:

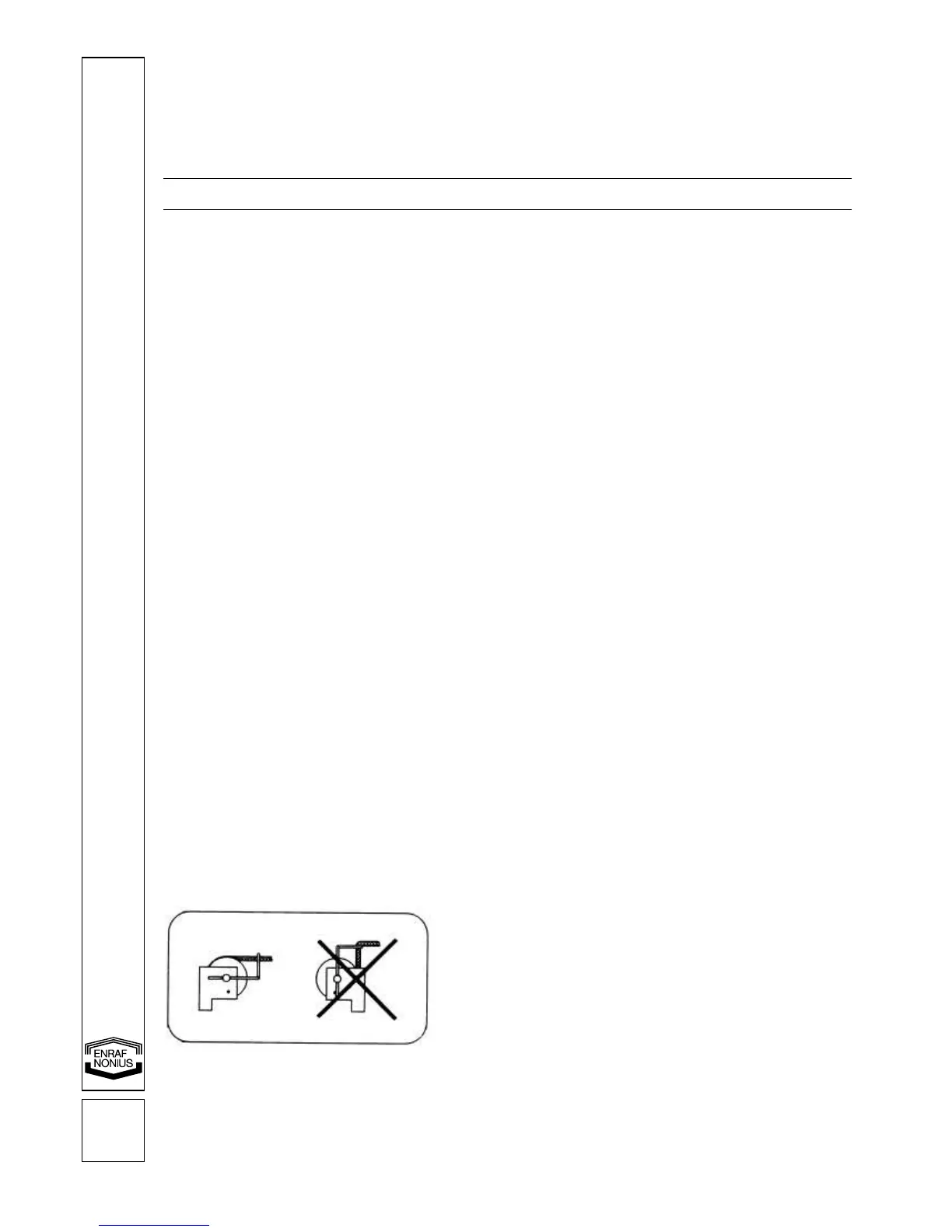

Make sure the cord is guided over the pulley as shown in the left drawing.
