Regular safety checks and safety
accessories
To meet the national/international requisites and avoid any malfunctioning or risk of injury, carry
out the following operations and checks at least once every 6 months (or according to the fre-
quency of use of the automation).
You are advised to have repairs and adjustments carried out by qualified personnel.
Disconnect the power supply [A] when carrying out cleaning or maintenance tasks.
Task
In the event of
problems
Disconnect the power supply and:
• visually check the automation [1]
• check the electrical wires [B]
• check the condition of the gate [C] and the fixing brackets, and make sure the sliding move-
ment is smooth and even
• clean the slide mechanism, rack and pinion
• lubricate the rack and pinion
• make regular checks to ensure the photocells are clean. Do not use alkaline-based prod-
ucts. Do not use high pressure water jets. The automatic system, function selector switches
and photocells could get damaged. Do not use polishing detergents. Do not rub with abra-
sive products, as they could cause damage.
Reconnect the power supply, then check:
• the limit switches (if fitted) are working correctly
• the power adjustments are correct (this operation must be carried out by qualified personnel)
• the command devices [2] - [4] - [7] (if fitted) are working correctly
• the safety devices [5] - [6] - [8] (if fitted) are working correctly If the gate detects an obstacle
while it is opening or closing, it must reverse its movement or stop.
In the event of malfunctioning or ALARM, you must CONTACT CUSTOMER SERVICE and inform
them of the alarm visualised by the LEDs (if fitted).
1
4
7
2
8
3
5
A
C
B
B
5
6

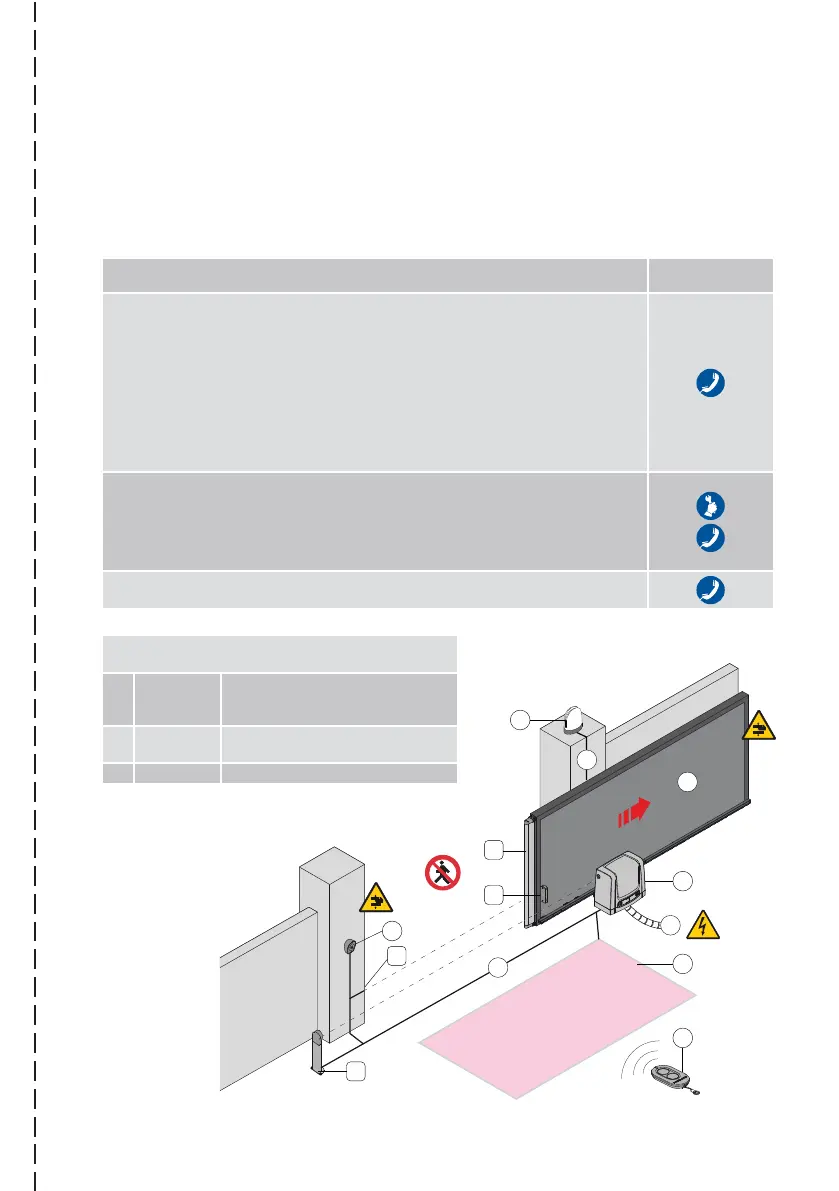

The following safety devices can be installed to protect the
danger areas (in accordance with EN 12453 and EN 12445):
5
LIN2
XEL2
LAB4
Safety photocells
6
SOFA
SOFB
Safety edge
8 GOPAV Radio system for safety edges
