10
IP2160EN - 2013-10-31

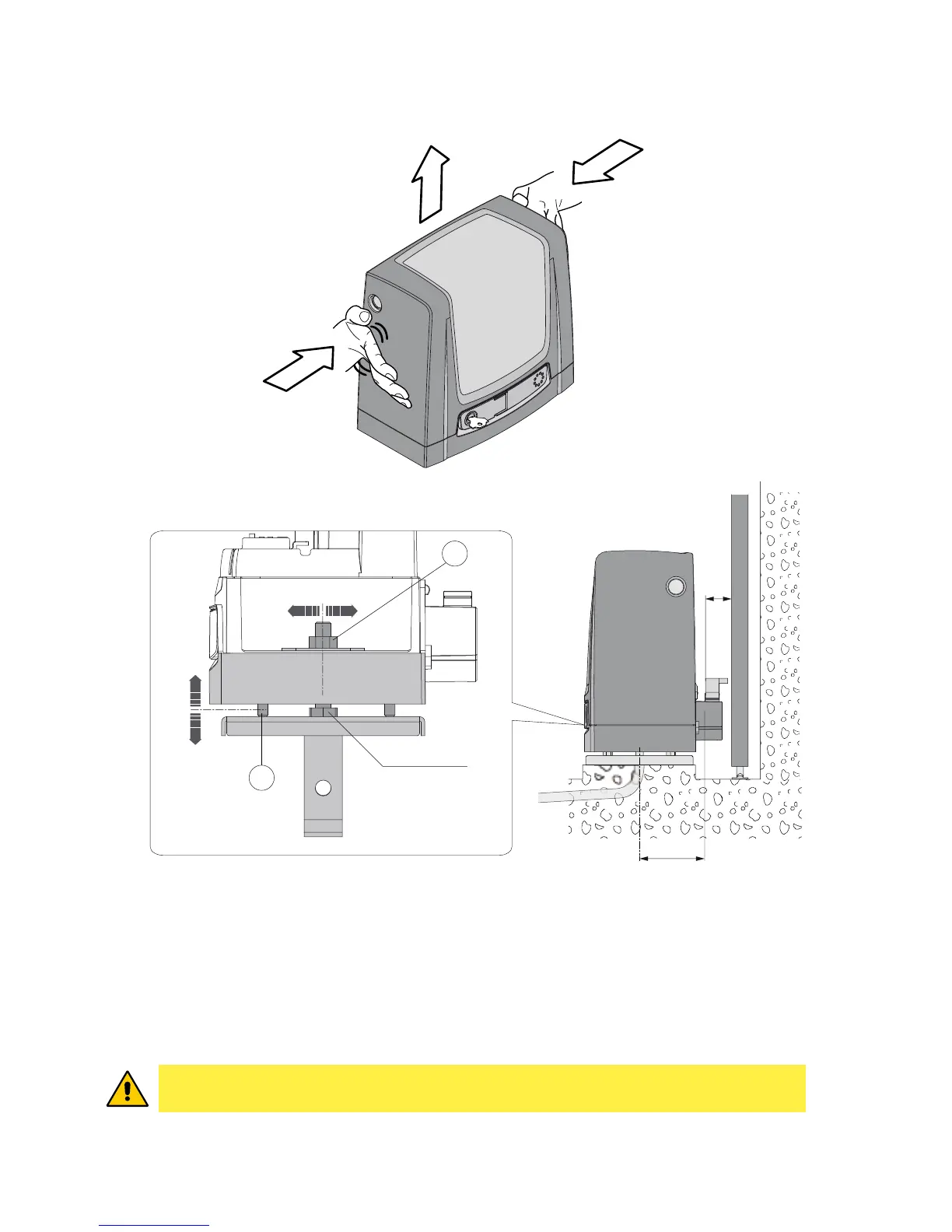

- Release the gearmotor (see OPERATING INSTRUCTIONS). Unscrew the front screw and remove
the casing by pressing on the side.
- Place the gearmotor on the base plate.
- Adjust the gearmotor horizontally by sliding it along the slots of the gearmotor base and vertically with
four levelling screws [A].
N.B.: during the vertical adjustment, keep the gearmotor slightly raised from the base plate
so that the rack can be fixed and subsequent adjustments are possible.
- After adjusting, fix the gearmotor using screws [B].
7.3 Gearmotor installation
WARNING: The gearmotor must be suitably raised from the ground to avoid ooding.
X
105
-15 +10
±5
A
B
M12-low type
M12
1
1
2
