13
IP2160EN - 2013-10-31
1
12

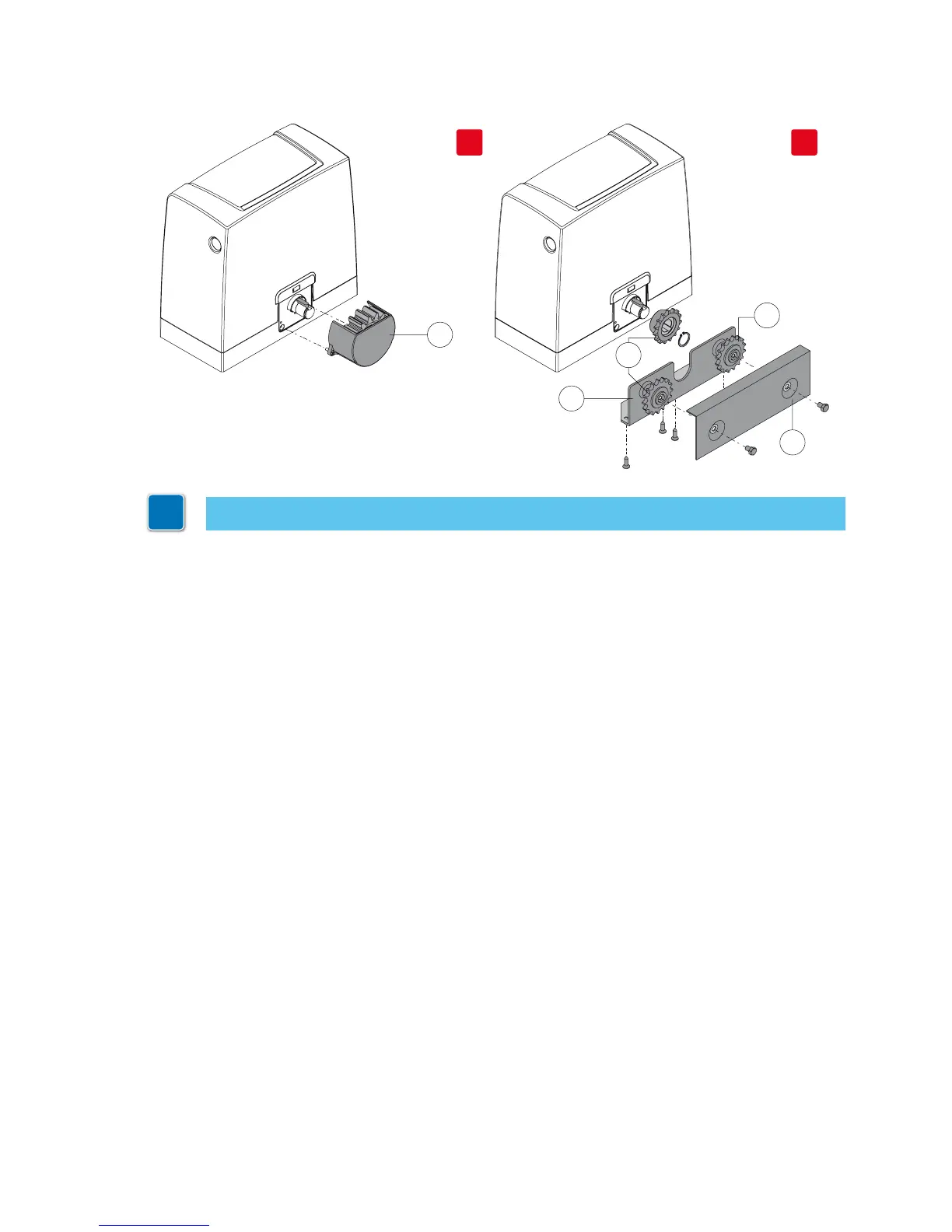

- Release the gearmotor (see OPERATING INSTRUCTIONS).
- [1] Remove pinion [12].
- [2] Fix pinion supporting plate [A] to the gearmotor.
- Insert pinions [B] as illustrated in the diagram.
- [3] Pass the chain between the pinions by hand.
- Fix cover plate [C].
2
A
B
B
C
N.B.: Install the chain drive kit before securing the gearmotor to the base plate.
7.7 Chain drive kit installation
