Entrematic Ditec NES600EH User Manual

15
IP2160EN - 2013-10-31
Before connecting the power supply, make sure the plate data correspond to that of the
mains power supply.
An omnipolar disconnection switch with minimum contact gaps of 3 mm must be included
in the mains supply.
Check that upstream of the electrical installation there is an adequate residual current circuit
breaker and a suitable overcurrent cutout.
Use a H05RN-F 3G1.5 or H05RR-F 3G1.5 type electric cable and connect it to terminals L (brown),
N (blue), (yellow/green) inside the automation.
Secure the cable using a special cable clamp and remove the sheath only where the clamp is.
Connection to the mains power supply, in the section outside the automation, is made with
independent channels and separated from the connections to the control and safety devices.
The channel must penetrate the automation through the holes on the base plate by a few cen-
timetres.
Make sure there are no sharp edges that may damage the power supply cable.
Make sure the mains power conductors (230 V) and accessory power conductors (24 V) are
separated.
The cables must be double insulated. Remove the sheath near the connecting terminals and
secure them with cable clamps.
N.B.: The electrical wiring and the start-up of the gearmotors are shown in the control
panel installation manuals.
i

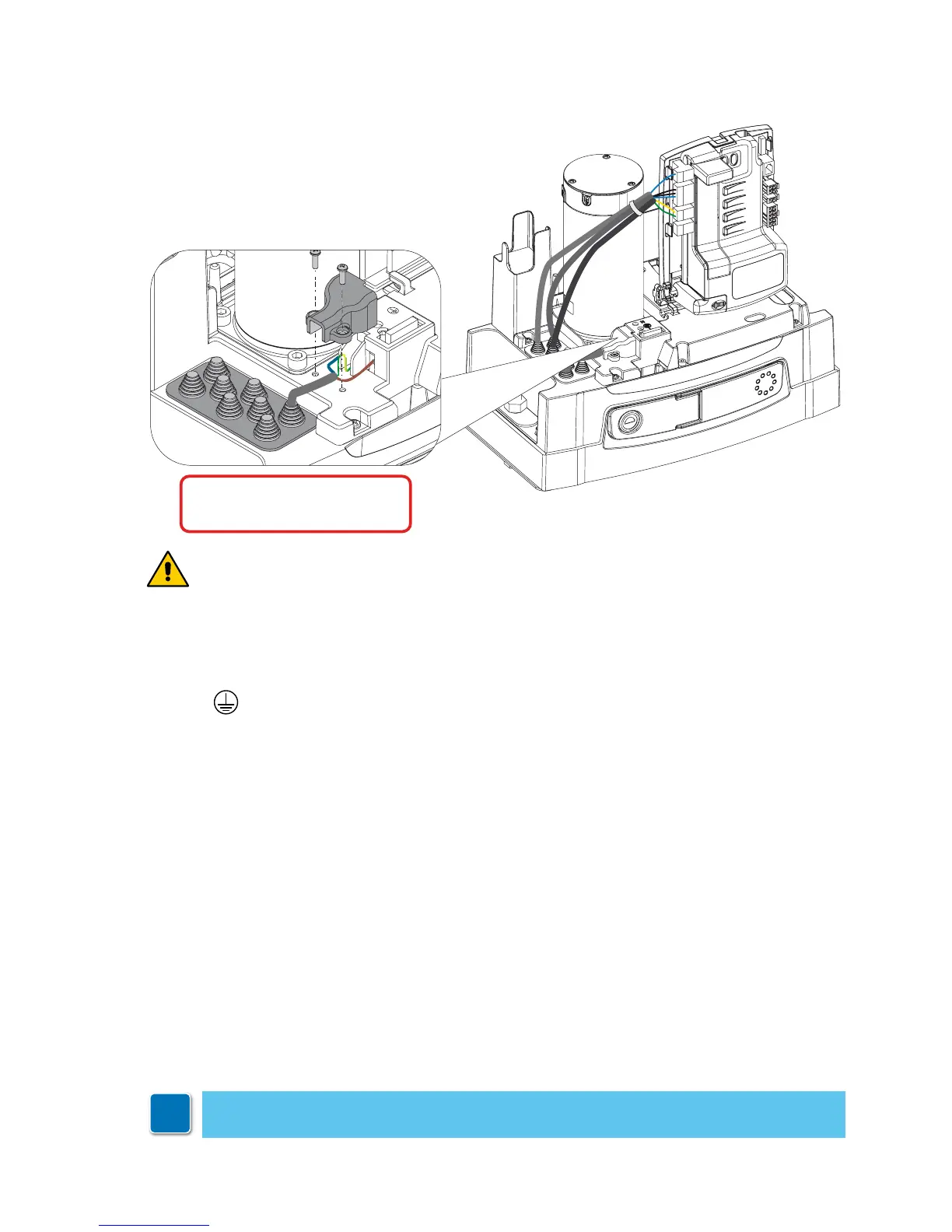

8. Electrical connections
L
N
Make sure the yellow-green conductor
is at least 30 mm longer than the
brown and blue conductors
