Page 45
710250
5(3($7
: CODE [01] IN CYCLE MODE FUNCTION.

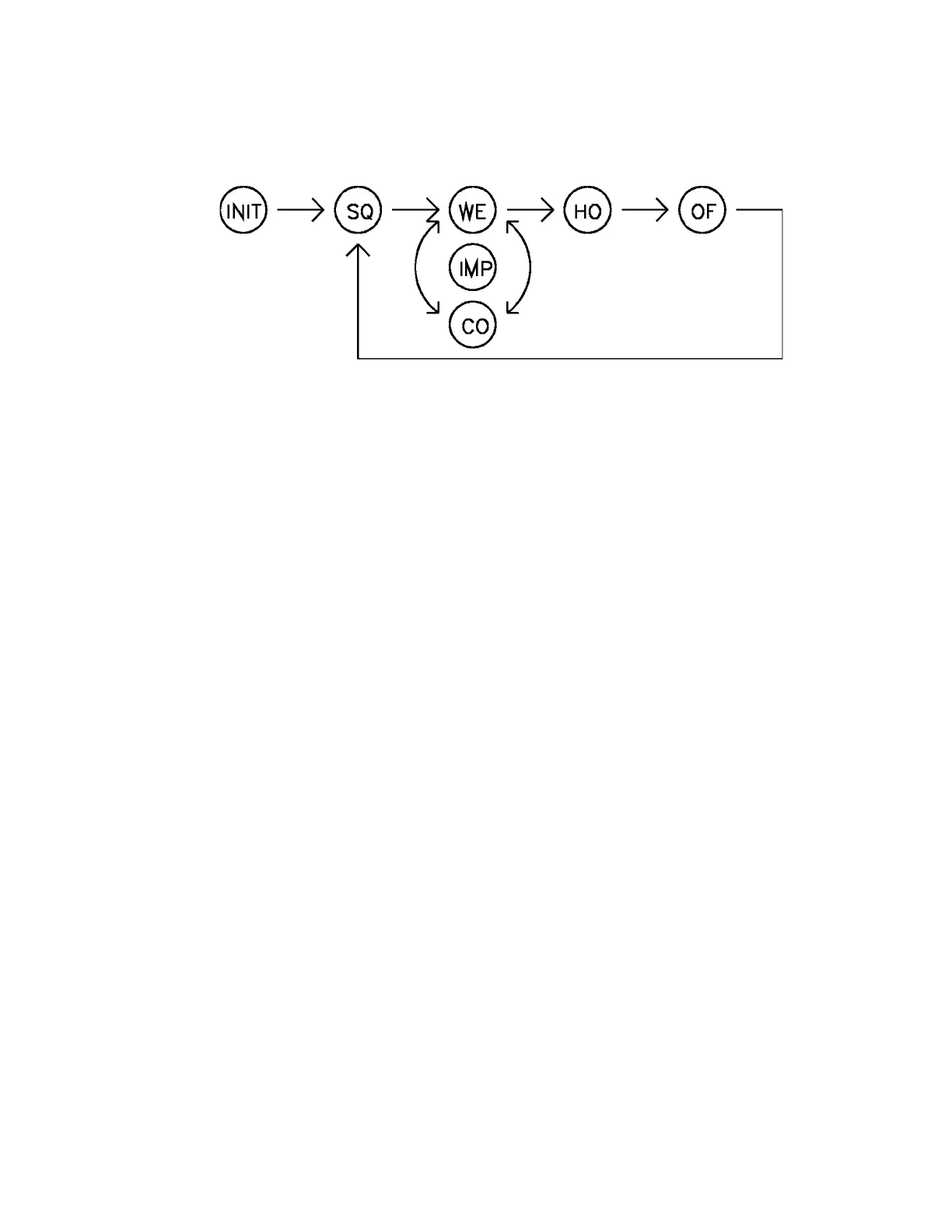

If the control is initiated and the initiation remains closed the sequence will be as shown in
FIGURE 3 below.
FIGURE 3.
The operations achieved in each SCHEDULE are the same as in NON REPEAT.
See section 7.3 EXTENDED FUNCTIONS.
When the initiation is released, the sequence ends as in NON REPEAT. If the initiation is
opened during WE, CO, or HO, the sequence continues through HO and stops.
&+$,1('02'(
: [02] IN CYCLE MODE FUNCTION.
Several SCHEDULES may be CHAINED, resulting in a weld sequence made up of several
SCHEDULES in length. A CHAINED sequence consists of a series of consecutive
SCHEDULES whose CYCLE MODE FUNCTION is a [02] except the last SCHEDULE
where [00],[01],[03] can be used.
Select the first SCHEDULE of a CHAINED SEQUENCE in the SCHEDULE SELECT
Display (22). When initiated, the following sequence takes place, as explained in FIGURE
4, where the first SCHEDULE is called "N".
