Enviro C60 - TV Installation Considerations; OPTIONAL STEP Cool Surface System Part 4

OPTIONAL STEP Cool Surface System Part 4
TV Installation Considerations:
If you are planning to mount a TV above your
replace some considerations must be made to
ensure it is protected from the heat.
During testing temperatures did not exceed
121°F (49°C) midway up the front wall (Figure 12 &
13). There is no guarantee that these temperatures
will not harm the longevity of your TV. Make sure
to consult your TV manufacturer’s specications
to nd the maximum allowable operating
temperature. Since every home and installation
is unique, temperatures should be veried at the
time of install if possible. If desired, front wall
temperatures can be lowered to 104°F (40°C) with
the use of a mantle (Figure 13). Refer to page 7
for revised mantle clearances. A TV should not be
installed if temperatures exceed the manufacturers
maximum allowable temperature.

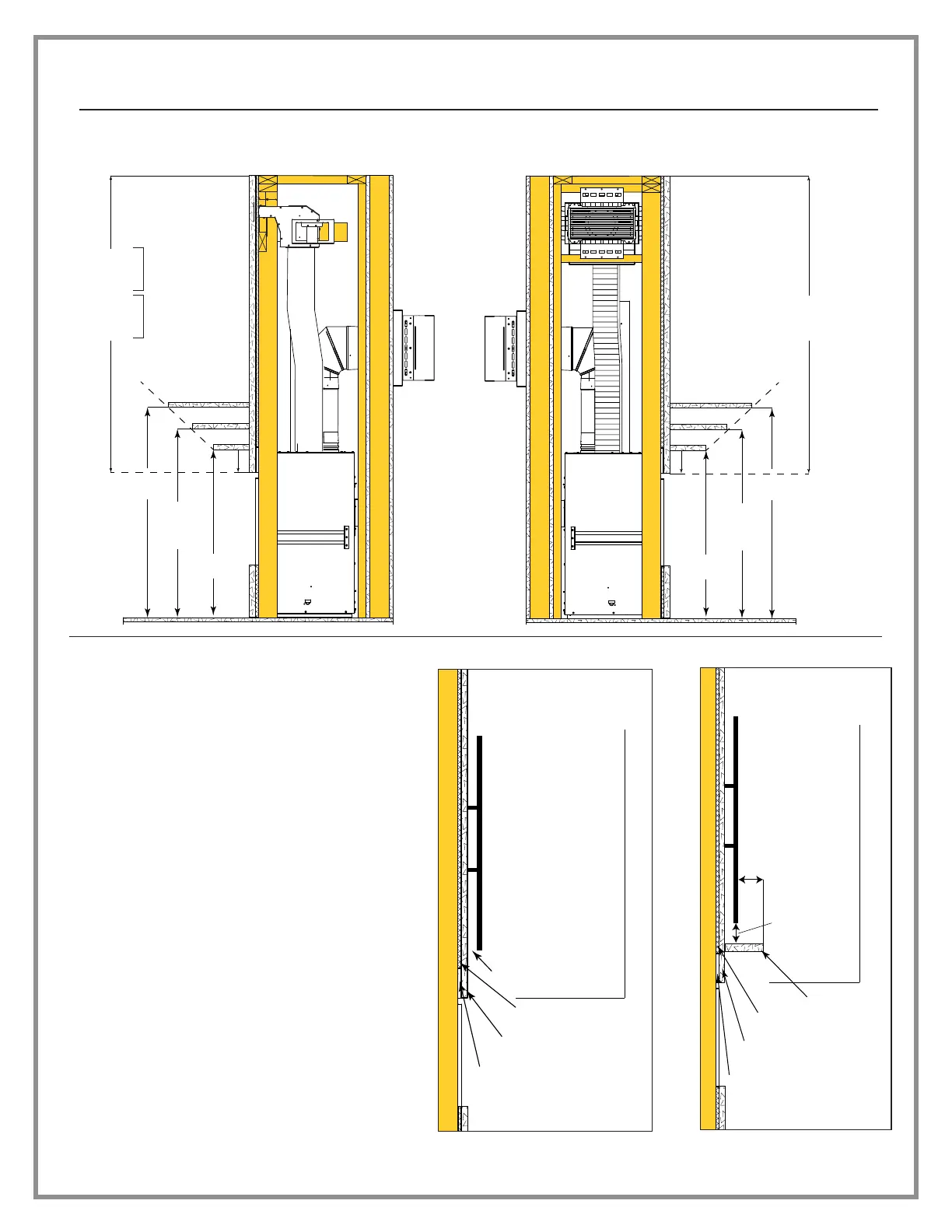

Figure  CSS  TV Clearances Figure  CSS  TV Clearances
29°F 41”
21°F 35”
21°F 29”
24°F 23”
17°F 17”
20°F 11”
30°F 5”
0”
Above
Ambient
Height from
Opening
4” Mantle
29” from oor.
Combustible
Facing Kit
1/2” Combustible Base
Material (Drywall)
Up to 1” Combustible
Material.
NOTE: You cannot install a Surround
with the mantle at its lowest position.
Install mantle at 31” for a Surround
Min.
2-1/2”
(6.4cm)
Min. 2” (5cm)
Gap
Combustible
Facing Kit
1/2” Combustible Base
Material (Drywall)
Up to 1” Combustible
Material
29°F 41”
29°F 35”
29°F 29”
27°F 23”
35°F 17”
38°F 11”
49°F 5”
0”
Above
Ambient
Height from
Opening
1-1/2” Air Gap behind the TV.
(Typically provided by a wall
mount)
TV must be 5” min from
discharge if no mantle
Framing Clearances - Front Vent Framing Clearances - Side Vent
Min. 3/4” (1.9cm)
Mantel Thickness
29 “
(74cm)
31 “
(79cm)
Min. Height
For Surround
33“
(84cm)
4” (102mm)
8” (203mm)
12” (305mm)
2-1/16”
(75cm)
Min. Height
to Ceiling
55-1/16”
(1399cm)
Min. Height
to Ceiling
64 1/8”
(1630mm)
C34
C44
C60
C72
29 “
(74cm)
31 “
(79cm)
Min. Height
For Surround
33“
(84cm)
4” (102mm)
8” (203mm)
12” (305mm)
2-1/16”
(75cm)
Min. Height
to Ceiling
55-1/16”
(1399cm)
