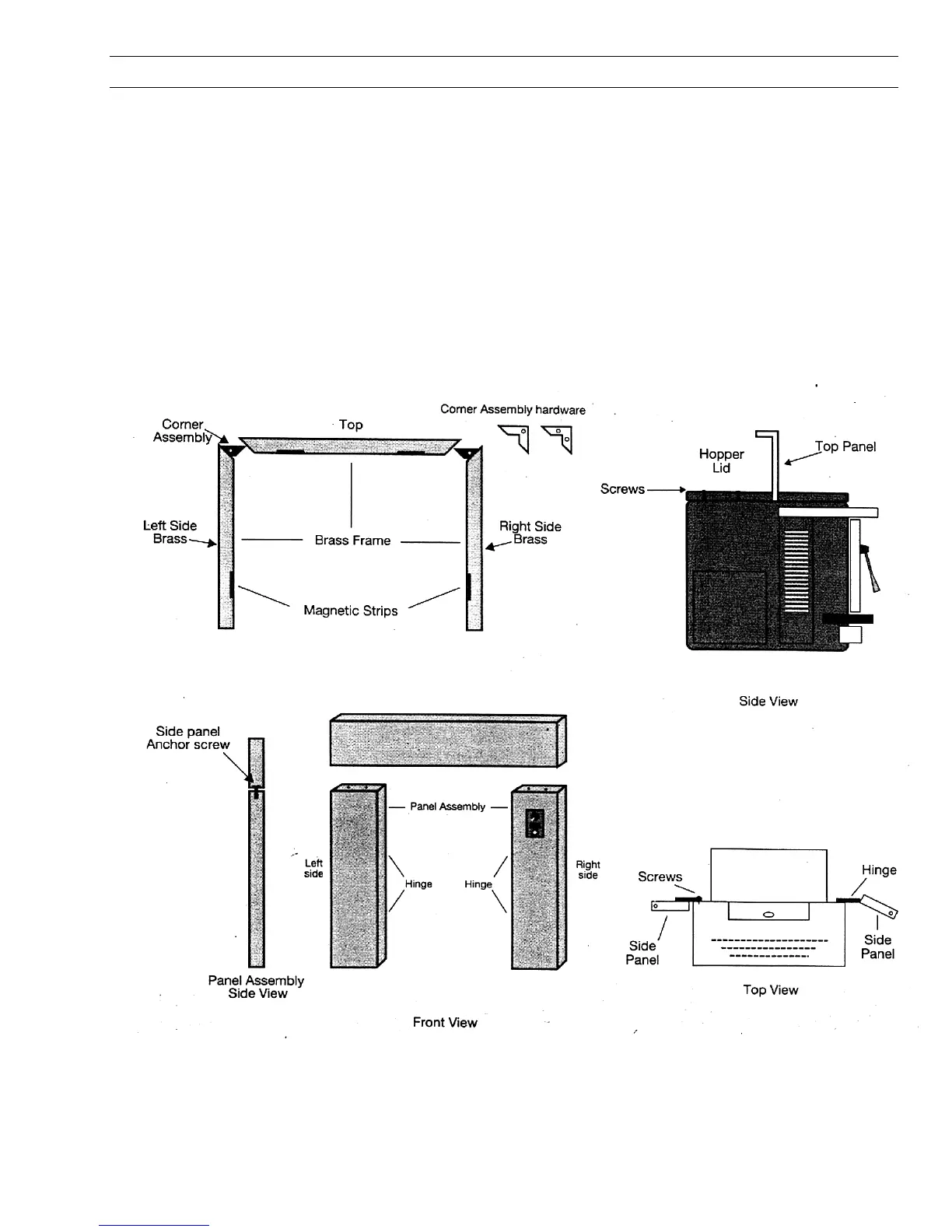

ASSEMBLING THE FACE PLATE FOR THE FPI AND BIH MODELS
1. Assemble the brass frame using the corner hardware and screws supplied in the face place
packaging. Install corner hardware into the side brass, then push into the top frame. Do not over-
tighten or the side bass cannot be removed during servicing.
2. Assemble the three faceplates to the stove by screwing in the hinged panels to the stove side
panels. Loosen the front hopper lid screws and center the top panel under the hopper lid, tighten
screws. Insert each side panel anchor screw through the top panel into the corresponding side
panel holes and tighten.
3. Place the brass frame you assembled (Step 1) over the panel assembly (Step 2).
4. To access the rear of the stove after the panels are assembled remove side brass and remove the
anchor screws from the corresponding side. Swing panel open. Installation is the reverse.
Sizing of Face Plates:
STANDARD: 40” X 30 1/4” OVERSIZE: 46” X 33”
BUILT IN: 36” X 32 9/16” OVERSIZE: 46 X 34 3/4”
15
