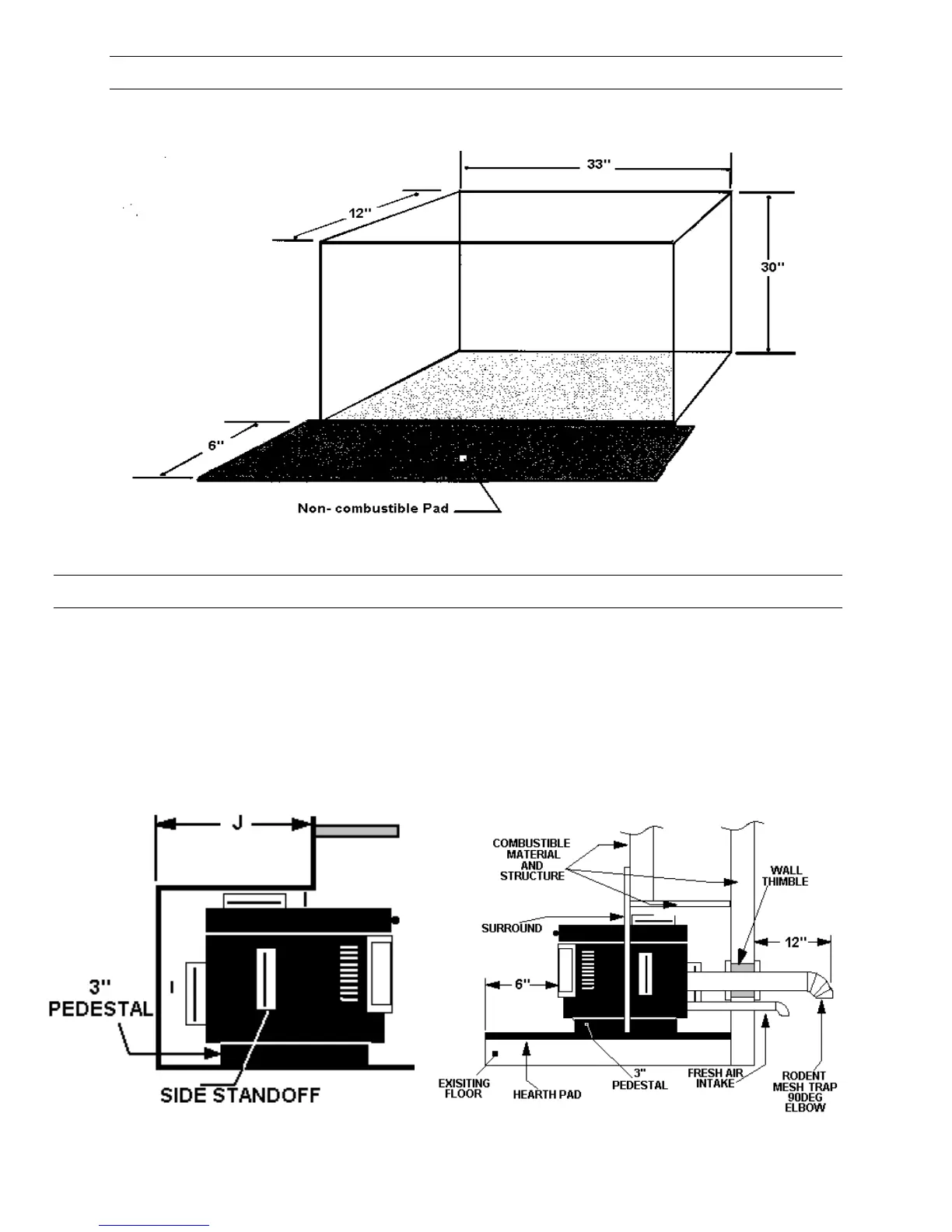

RECOMMENDED FRAMING FOR BUILT IN HEATER
When installing model BIH it is recommended that you use the dimensions shown in the diagram
below. These type of clearances will make it easy and readily accessible for service.
BUILT IN HEATER CLEARANCES TO COMBUSTIBLES
This unit includes a 3” (75 mm) pedestal and surrounding faceplates. The part of the unit behind the
faceplate can be enclosed with combustible material. Model BIH has 1” (25 mm) standoffs to establish
clearances to combustibles to the back, top and sides. The minimum clearances and the size of the
enclosure are as follows:
-Sides and Rear .................... I- 0 INCHES (to standoffs)
-Depth ...................................J- 11 INCHES (275 mm)
-Side wall to unit.................... - 8 INCHES (200 mm
Mantle to unit .......................L- 8 INCHES (200 mm)
16
