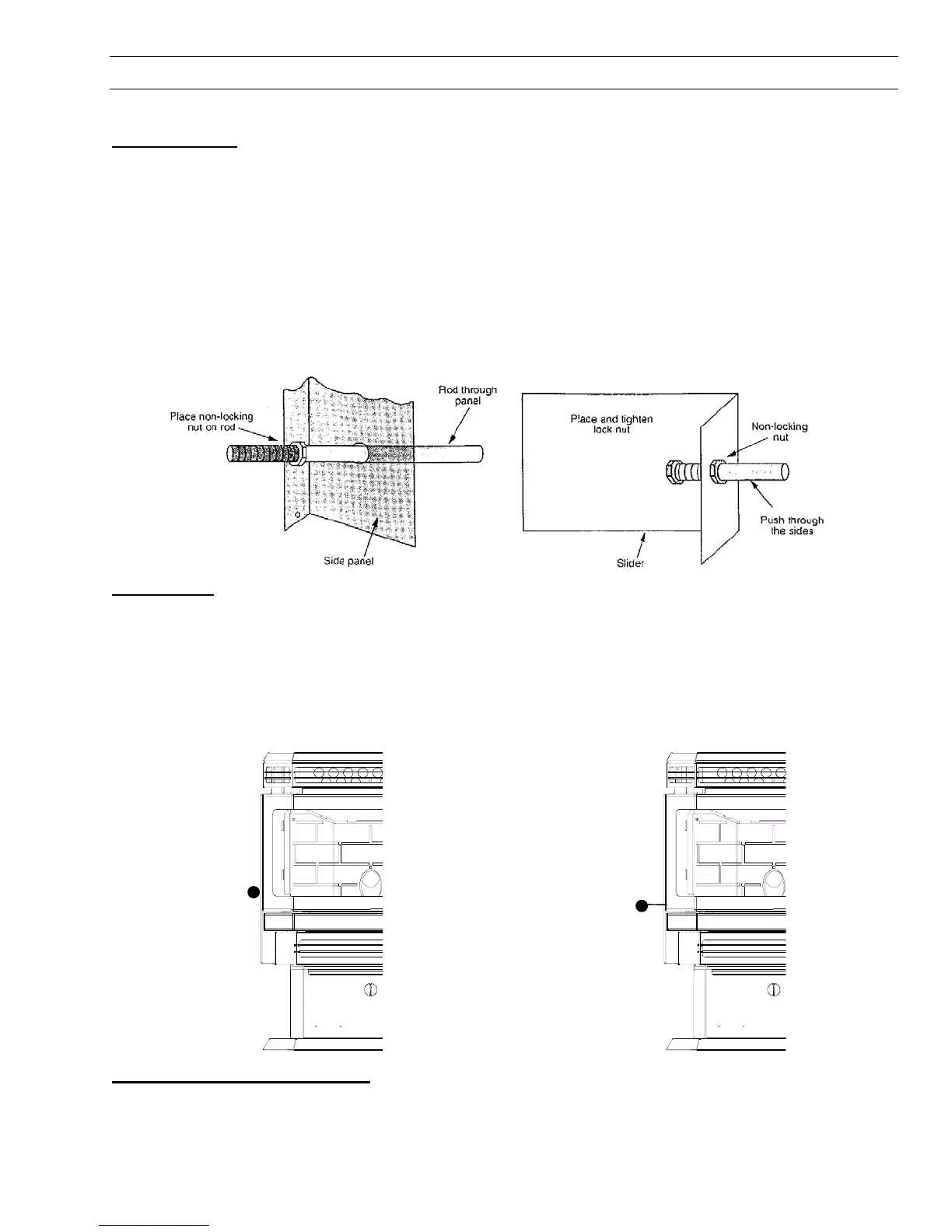

SLIDER/DAMPER INSTALLATION /OPERATION INSTRUCTIONS
This is used to regulate the airflow through the pellet stove.
INSTALLATION
1. Remove the slider rod (short rod with knob and nuts) and the two nuts from their
package and open the left side panel.
2. Remove the knob and outer nut from the knob. Push the rod through the hole in the
slider. Place the lock nut on the rod and tighten, leaving a 1/32’ gap between the slider
and one of the nuts.
3. Make sure the slider moves freely. Close the side panel and tighten screws after placing
the rod through the panel. Screw the knob onto the slider.
OPERATION
- On the low heat output settings, push the slider all the way in.
- On the high heat output pull the slider out or until a good fire is achieved. A good
fire is in between a fire with lazy flames (and black tipped flames) and a forced fire
(very quick, shorter flames). A good fire is the most efficient and will have a bright
and active flame.
- Hot magnetic reading 0.10 – 0.11
ON HIGH
Pull out until
an efficient
flame is
achieved
ON LOW
Push all the
way in
THE TUBE SCRAPER ROD: Put the stainless steel rod through the hole in the heat exchanger,
thread the rod into the scraper plate.
7
