HEARTH MOUNT INSTALLATION
1. Lock fireplace damper in the open position.
2. Install positive flue connector at the fireplace dampers.
3. Connect a Tee or a 90° degree elbow to the exhaust pipe.
4. Install flexible stainless steel liner or listed pellet vent to the top of the chimney.

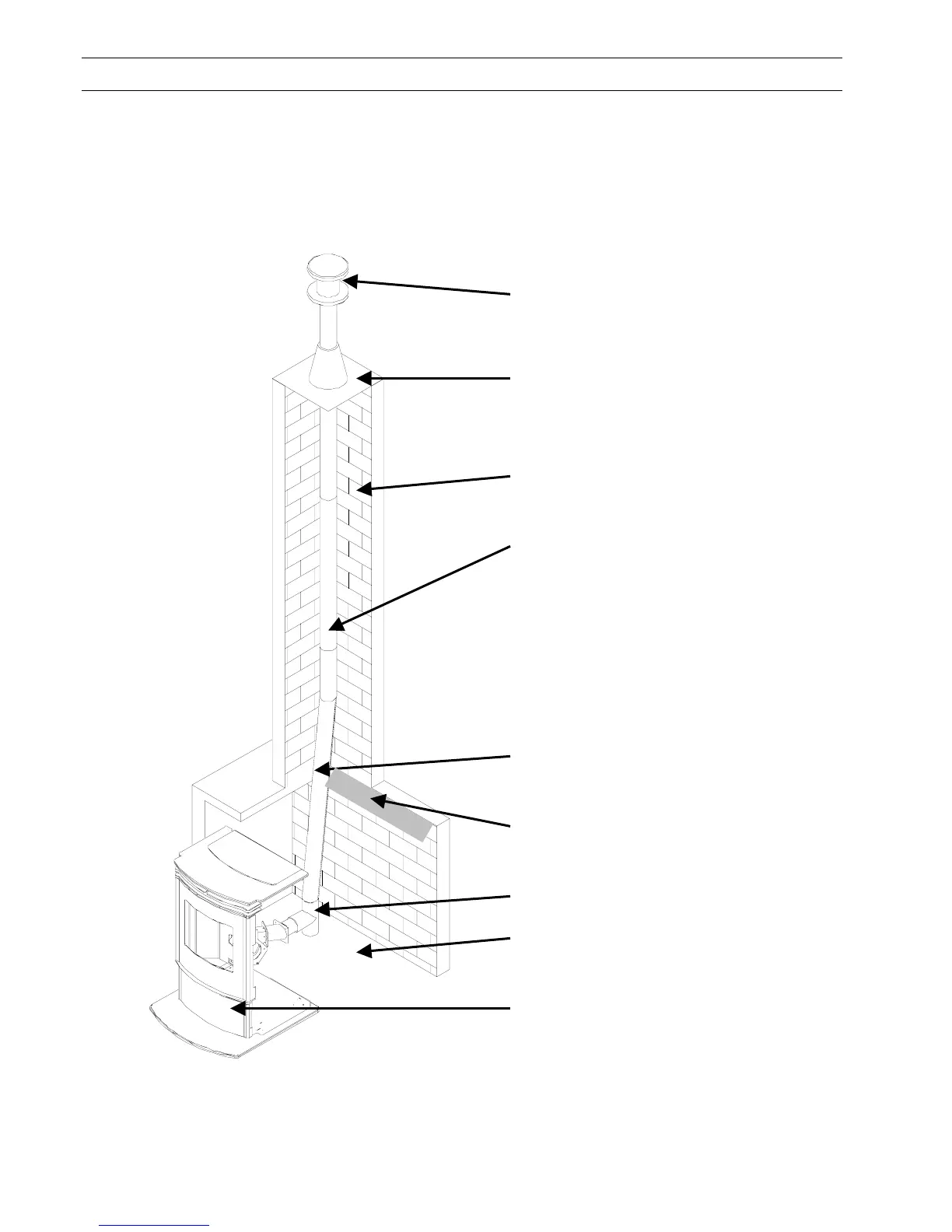

RAIN CAP.
SEAL PLATE.
EXISTING MASONRY FLUE.
VENT PIPE. ( single wall stainless flex pipe or
solid PL vent.)
FLEXIBLE VENT CONNECTOR.
(Use this 5 foot section of pipe to vent past
fireplace damper or smoke shelf.)
FIREPLACE DAMPER LOCATION
CLEAN OUT TEE.
EXISTING FIREPLACE.
EF V EVOLUTION.
