32

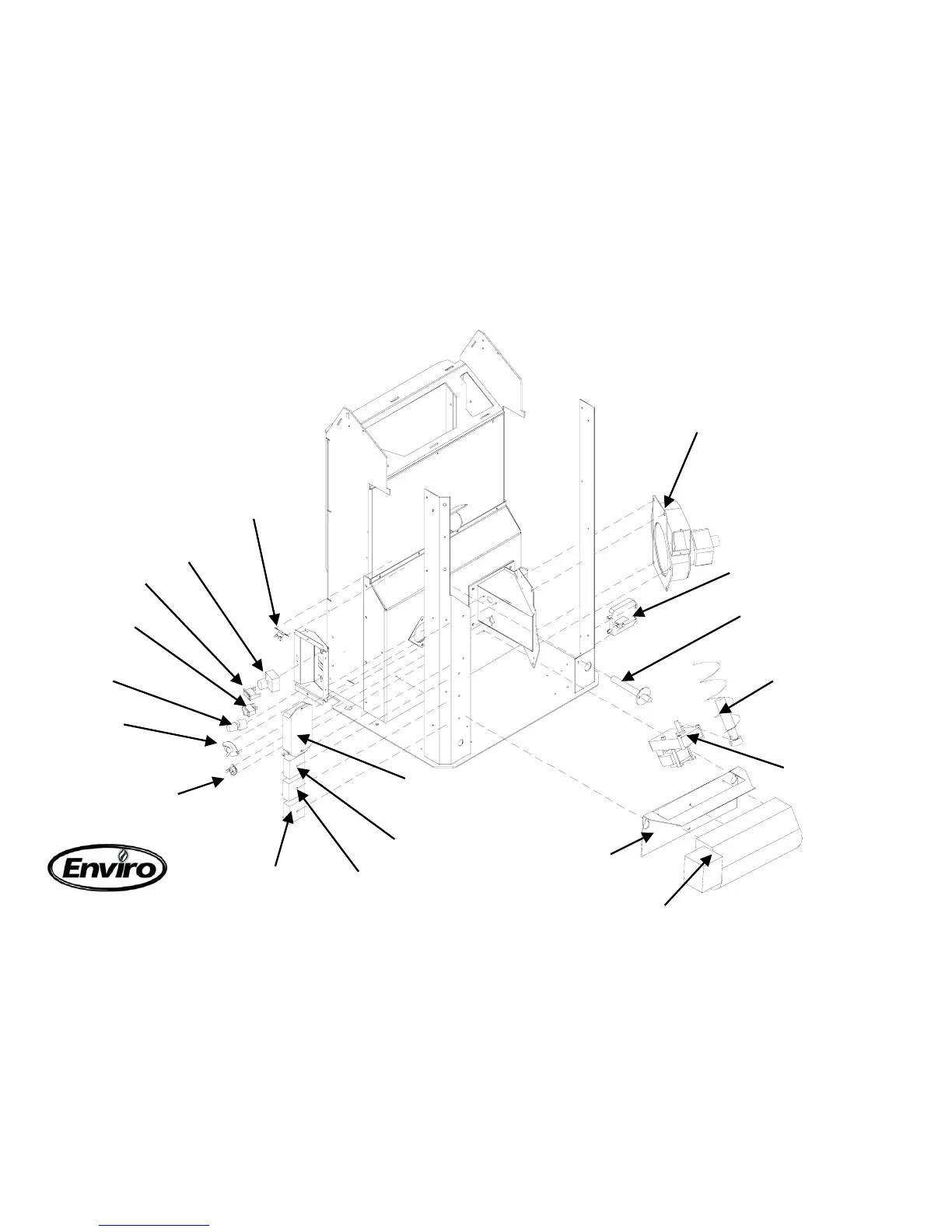

EVOLUTION:
EXPLODED VIEW Components.
Page 1 of 2 JUNE 2002
HIGH LIMIT SENSOR
200° F (93° C)
EF5 -105
FAN
CONTROLLER
EF5-106
GREEN LIGHT
EF5-107
START SWITCH
EF5-108
EVOLUTION
DIAL-A-FIRE
20-074
EXHAUST TEMP
SENSOR
120° F (49°C)
EF5-109
IGNITER TEMP
SENSOR
120° F (49° C)
EF5-110
THERMOSTAT
CONTROLLER
20-026
PHASE
CONTROLLER
EF5-111
AUGER TIMER
CONTROL
EF5-112
POWER UP
TIMER
EF5-113
CONVECTION
BLOWER MOUNT
EF5-120
CONVECTION
BLOWER
EF5-119
COMBUSTION
BLOWER
EF5-114
VACUUM
SWITCH
EF5-115
IGNITER
20-022
EF5 AUGER
SHAFT
20-024
AUGER
MOTOR
EF5-116
