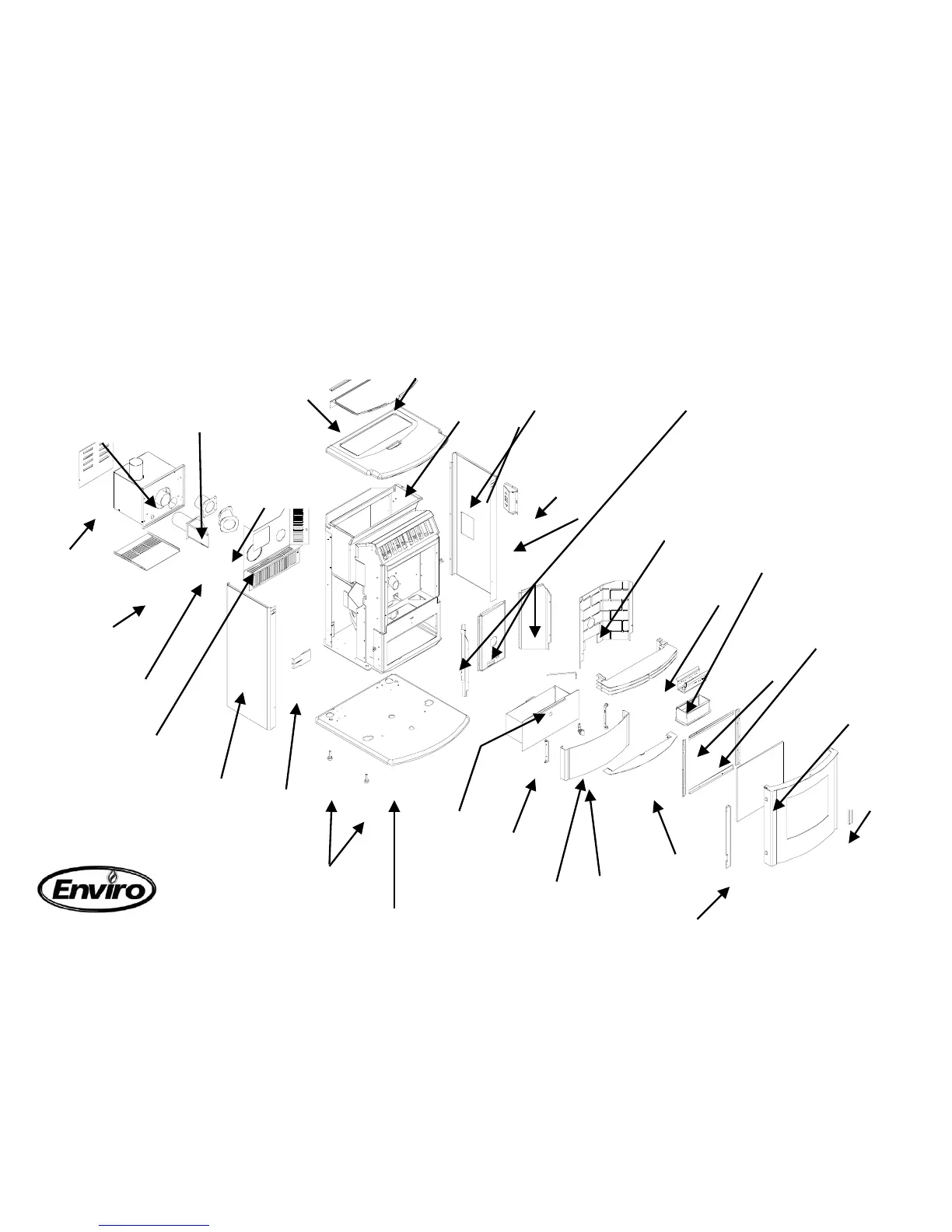

Enviro EF-V EVOLUTION - Exploded View of Stove Components

33
EVOLUTION
EXPLODED VIEW Steel Parts
Page 2 of 2 JUNE 2002
HOPPER LID
HINGE
EF5-142
HOPPER LID
PAINTED
EF5-140
STAINLESS STEEL
EF5-141
CAST TOP
20-038
CABINET SIDE
RIGHT
PAINTED
20-032
STAINLESS
STEEL
20-030
CONTROL
PANEL
EF5-122
CONTROL
PANEL
DOOR
EF5-121
FIREBOX
PANEL
LEFT
EF5-126
FIREBOX
PANEL
CENTER
EF5-125
FIREBOX
PANEL
LEFT
EF5-127
FIREBOX
BRICK
LINER
20-045
TOP
LOUVER
SET
(NICKEL)
50-097
BURN
POT
LINER
20-054
BURN
POT
EF5-128
GLASS
RETAINER
SET
EF5-133
GLASS
356 X
356MM
20-023
DOOR
HANDLE
EF5-134
DOOR
ASSEMBLY
COMPLETE
20-014
DOOR
HINGE
BRACKET
EF5-135
ASH
SHELF
EF5-132
ASH PAN
COVER
EF5-131
ASH PAN
LATCH
EF5-130
ASH PAN
EF5-129
HEAT
EXCHANGER
ROD
EF5-138
LEVELING
LEGS
20-018
HEARTH
PAD
EF5-103
SLIDER
DAMPER
PLATE
EF5-137
CABINET
SIDE LEFT
PAINTED
20-031
STAINLESS
STEEL
20-029
BACK
GRILL
EF5 139
60 DEG
EXHAUST
ADAPTER
50-096
EXTERNAL
EXHAUST
BOTTOM
EF5-145
EXTERNAL
EXHAUST
BACK
EF5-143
OUTSIDE
COMBUSTION
BLOWER
HOUSING
EF5-104
STRAIGHT
EXHAUST
TUBE
EF-147
45 DEG
EXHAUST
ADAPTER
EF5-146
