Enviro Mini A Technical Manual

Installation
HORIZONTAL EXHAUST THROUGH WALL INSTALLATION:
Vent installation: install vent at clearances specified by the vent manufacturer.
A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces,
or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and
Equipment. Only use venting of L or PL type with an inside diameter of 3 or 4 inches (7.6 or 10.1 cm).
1. Choose a location for your stove that meets
the requirements stated in this manual and
allows installation with the least amount of
interference to house framing, plumbing,
wiring, etc.
2. Install a non-combustible hearth pad
(where necessary).
3. Place the appliance 15” (37.5 cm) away
from the wall. If the stove is to be set on
a hearth pad, set the unit on it, and adjust
the leveling legs.
4. Locate the center of the exhaust pipe on
the stove. Extend that line to the wall.
Once you have located the center point on
the wall, refer to pellet vent manufacturer
installation instructions for correct hole
size and clearance to combustibles.
5. Install the wall thimble as per the
instructions written on the thimble.

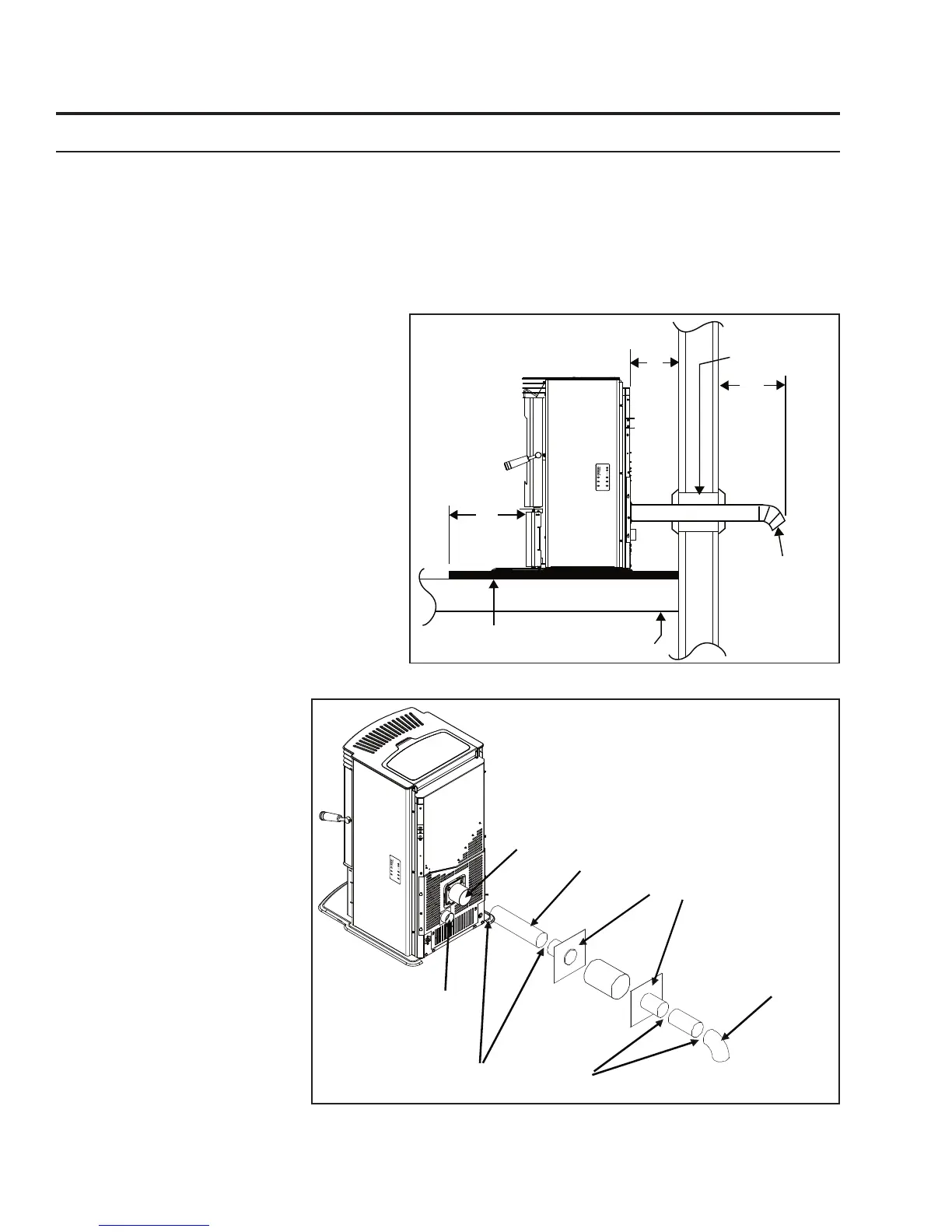

Figure 14: Straight through wall Installation.
Non-combustible
floor protection.
Existing floor
(combustible)
6"
(15 cm)
4"
(10 cm)
Wall
thimble
45°
elbow
12"
(30.5 cm)
ROOMAIR
FANON/OFF
ON/OFF
FEEDRATE
TRIM
COMBUSTION
BLOWERTRIM
HEATLEVEL
AUTO/OFF
HIGH/LOW
MANUAL
AUGER
MODE
Exhaust Tube
3" (75mm) or 4" (100mm) "PL" or "L" vent
Wall Thimble
45° Elbow with screen or
Termination Cap
High Temperature RTV
Silicone Required
Fresh Air Intake Tube
ROOMAI
R
FA
NO
N
/OFF
O
N
/OF
F
FEED
RATE
TRIM
CO
MB
USTI
O
N
B
LO
WERTRI
M
HEA
TLE
VE
L
A
U
TO
/O
F
F
H
IGH
/
LOW
MAN
UA
L
AU
GER
MODE
Figure 15: Venting to use with straight through wall Installation.
Maintain an effective vapour
barrier in accordance with
local building codes.
6. Install a length of 3” (75
mm) or 4” (100 mm) vent
pipe into the wall thimble.
The pipe should install easily
into the thimble.
7. Connect the exhaust
vent pipe to the exhaust
pipe on the stove. Seal
the connection with high
temperature silicone.
8. Push the stove straight back,
leaving a minimum of 4” (10
cm) clearance from the back
of the stove to the wall. Seal
the vent pipe to the thimble
with high temperature
silicone.
12
